Specifications
Low Cost and Install FreeProductive time short and Creative Strong
Dynamic effect good and Save energy & safety
Wide Use
Electroluminescent Panel material manufacture
The special material developed by KPT combines with kinds of EL phosphor to make EL display. It's completely applicable to screen printing, spraying in EL glass panel, enamel panel, plastic panel, EL wire display products etc.
Reference tech data for kinds of EL display applied of the special material is :
Voltage 40V-400V, Frequency 50Hz-4KHz, Temperature from under zero 40 to 60 centigrade degree, Current 0.02-0.2mA/ cm2, Electric Capacity 0.2-0.7nF/cm2, humidity 0%~90%, Power Consumption 2-7mW/ cm2, Application lifetime over 1000-20000hrs, Brightness 5-100cd/ m2

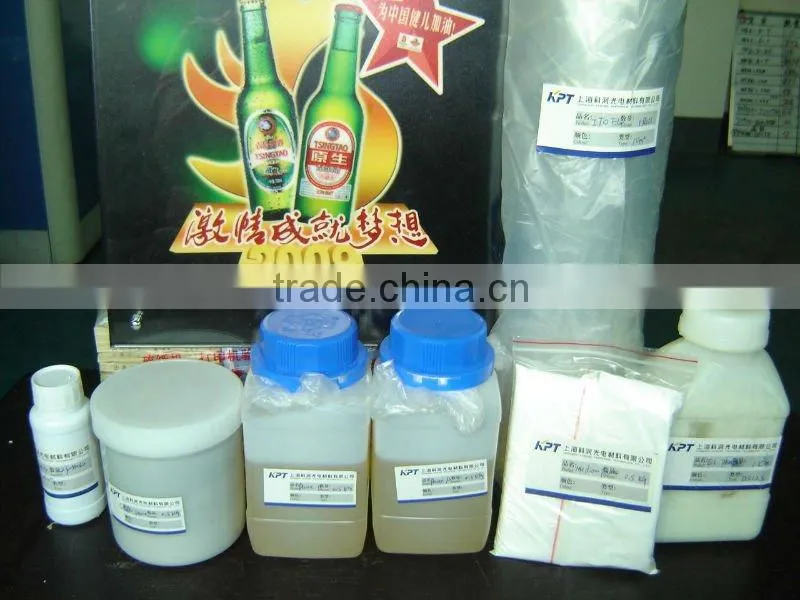

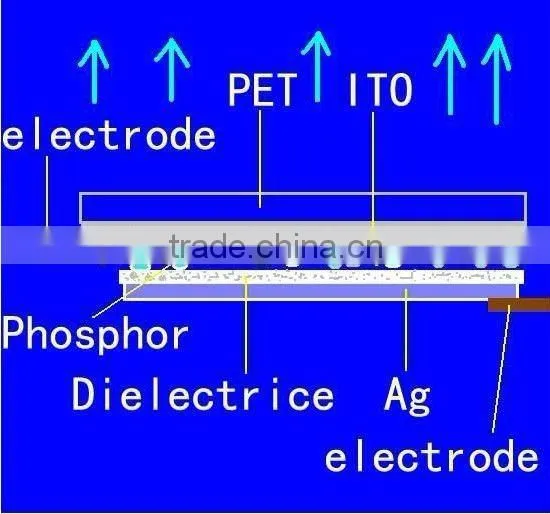

TYPE | APPLICATION | CHARACTERISTIC |
Median Power(Carrier) | Median Layer Printing | High reflectivity, High conductivity |
Property-adjustable Solvent | Additive for A, B Paste | Solidify Improvement |
Diluter, Wash thinner | Viscidity Adjusting, Washing Tool | Dilution, Washing |
ITO Film | Transparent Plastic Electric Film | Transparent, Flexible |
ITO ink | Transparent Plastic Electric Film | Transparent, Flexible |
EL Paste | Lighting and Median Printing | Easier and Prompt Application Be dry with 110 centigrade degree |
Electric Paste | Back Electrode Printing | Good Conductibility |
Insulating Coating | Back Electrode Protection | Easier Application |
EL Paste
Model | Application | Feature |
AB | Infrared heating,slow drying(3-4 hrs) | Property-adjustable Solvent |
A B | Lighting layer Infrared heating,slow drying (3-4 hrs) Medium layer, Infrared heating,slow drying (3 -4hrs) | Property-adjustable Solvent |
FB | Nornal temperature,fast drying(2 hrs)or Infrared heating(10 mins) | High brigness,easy fast drying |
PB | Nornal temperature,fast drying(5 hrs)or Infrared heating(1 hrs) | High brigness |
UV | UV Ultraviolet solidification(30-120 seconds) | High brightness,super fast drying |
We’re able to supply consulting service for EL instrument production technics

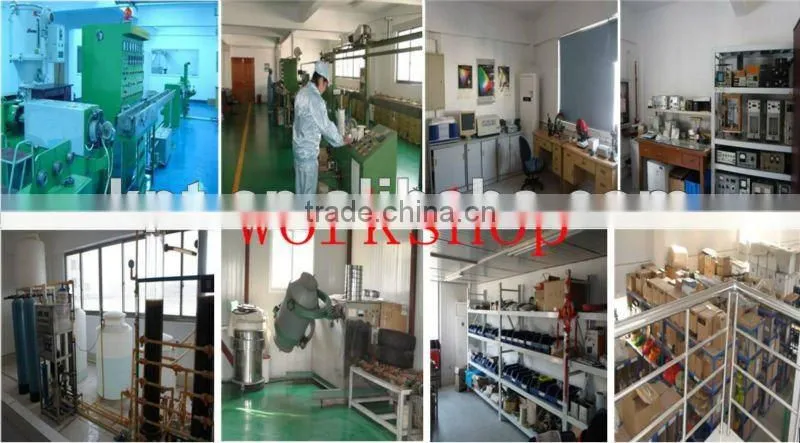

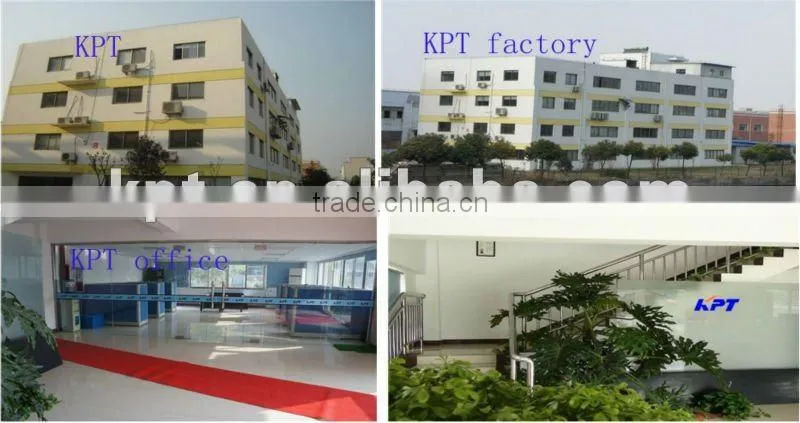

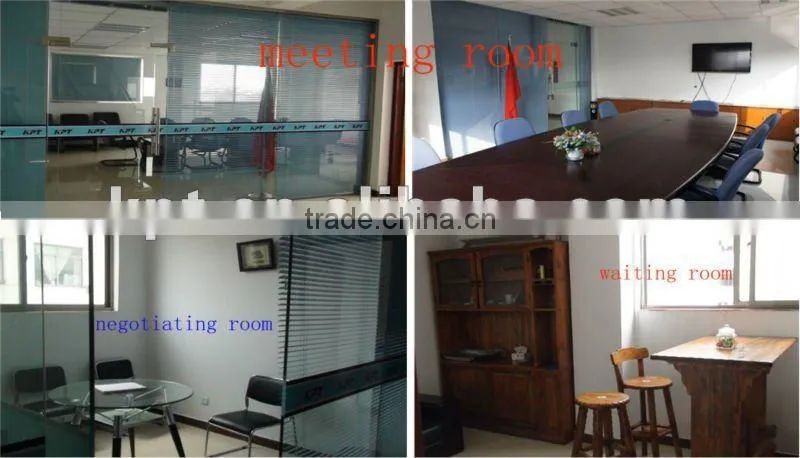

Factory information:
Customer visiting:
