Home > Metallurgy, Mineral & Energy > Aluminum > Aluminum Sheet > Aluminum Diamond Pattern Plate

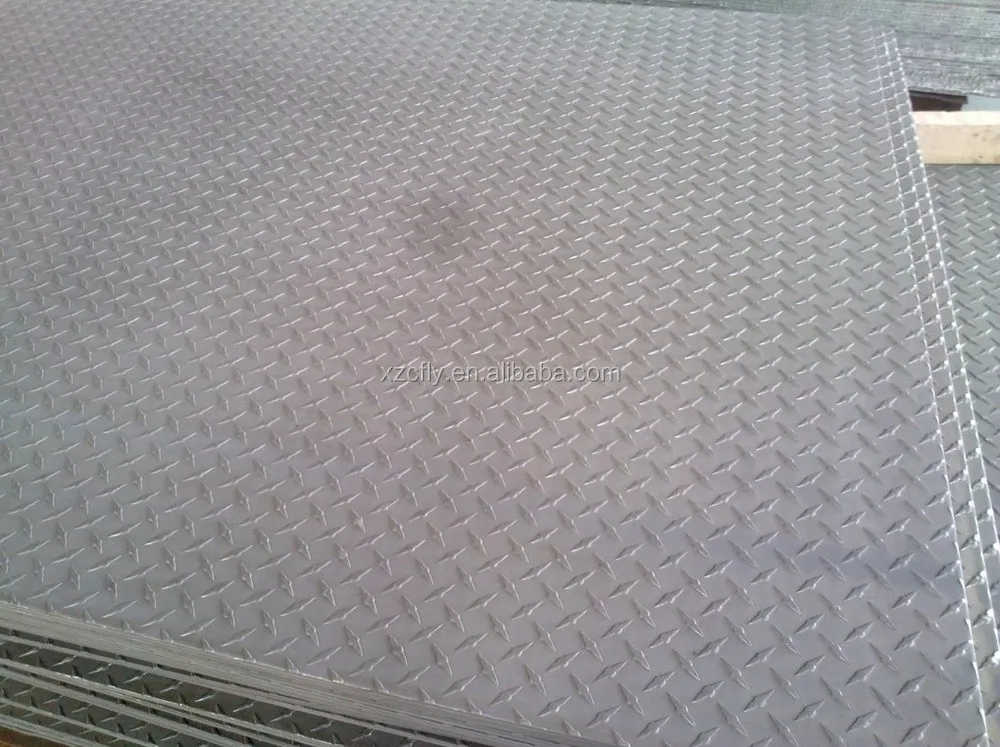

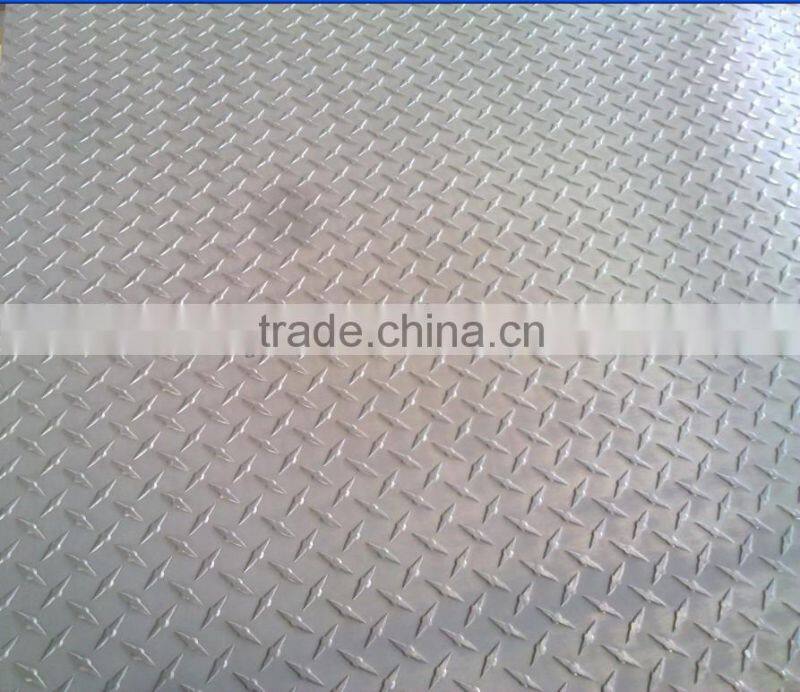

Aluminum Diamond Pattern Plate

Name: Aluminum Diamond Pattern Plate
Brand: Caifa
SKU: 130473663
Availability: InStock

Aluminum Diamond Pattern Plate thumbnail-1

US$ 2,600 - 3,200 MOQ: 6 Tons

Key Specifications

Get Latest Price

Grade:

6000 Series

Temper:

O-H112

Type:

Plate

Contact Supplier Request Quote Chat Now

Jiangsu Caifa Aluminum Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Grade 6000 Series

Temper O-H112

Type Plate

Thickness 0.2mm-20mm

Width upto1500mm

Surface Treatment Embossed

Alloy Or Not Is Alloy

Place of Origin Jiangsu, China

Brand Name Caifa

Model Number 6082

Specifications

Alloy: 1. 3. 5.6series
Temper: H12.H14.H16.H18.H112.H24 H32
Thickness: 0.2-20mm
Length: 500mm-6,000mm

aluminum tread sheet

1)Alloy: 5052.5083.6061.5754 6063

2)Temper: H12.H14.H16.H18.H112.H24 T4 T6 O

3)Thickness: 0.5-20mm
4)Width: 500mm-1,500mm

5)Length:UP to 6000mm 6) Dimensions can be produced as per clients' specifications
7) Good plasticity and conductivity
8) Generally used for industrial and construction applications

5052 aluminum alloy plate, is the most extensive application of a rustproof aluminum alloy, the alloy has high strength, especially with fatigue strength: plasticity and high corrosion resistance, no heat treatment strengthening,, in a cold hardening plasticity is good, cold hardening, low plasticity, corrosion resistance good, good weldability, poor machinability, polishing. Use: mainly for the requirements of high plasticity and good weldability, is also commonly used for vehicles, ships of the sheet metal parts, instrumentation, street lamp bracket and the rivets, metal products, electrical enclosure, etc.

Aluminium plate
Alloy	1050/1060/1100/3003/5754/5083/6061/6063/6060/6082/8011
Temper	H14,H18,H24,H32 ,H112,T4,T6 ,T651,O
Thickness (mm)	0.7mm to 20mm
Width (mm)	Up to 1500mm
Length (mm)	Up to 6000mm
Standard	GB/T24001-2004,ISO14001:2024,GB/T19001-2008,ISO9001:2008,SGS
MOQ	5ton
Application	1)Decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall 2)Household appliances: refrigerators, microwave ovens, audio equipment, etc.
Delivery time	within 20-30 days after received the payment
Payment terms	L/C T/T
