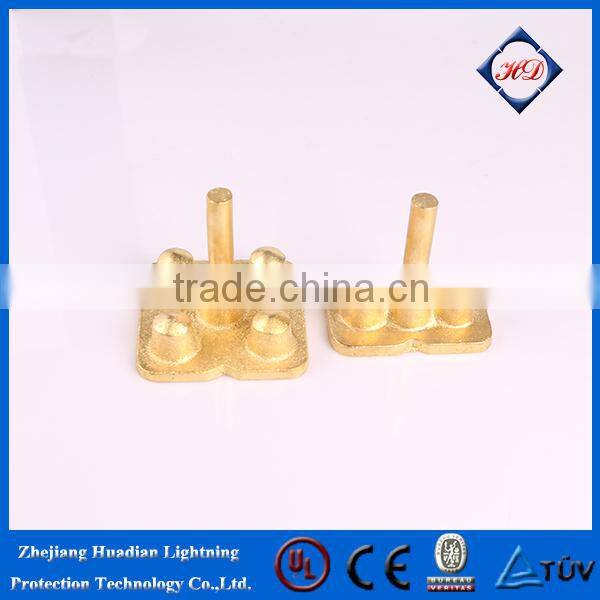

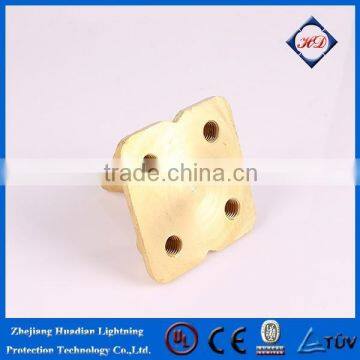

Brass ground outlet
|
Earth outlet is manufactured from brass. It provides an excellent earth point when connected to continious reinforcing bars. Earth outlet is widely used in earthing project with it's Strong corrosion resistance, Good conductivity, and long use life.
|
1.Materials |
Brass |
2. Function: |
Provides an excellent earth point when connected to continious reinforcing bars. |
3. Advantage: |
Strong corrosion resistance, Good conductivity, and 50 years use life |
4. Operating: |
Very simple and convenient |
| Part No. | Fix Hole No. | Application of cable size |
| HD-WB401-95 | M10X4 |
95mm2 |
| HD-WB201-95 | M10X2 |
95mm2 |

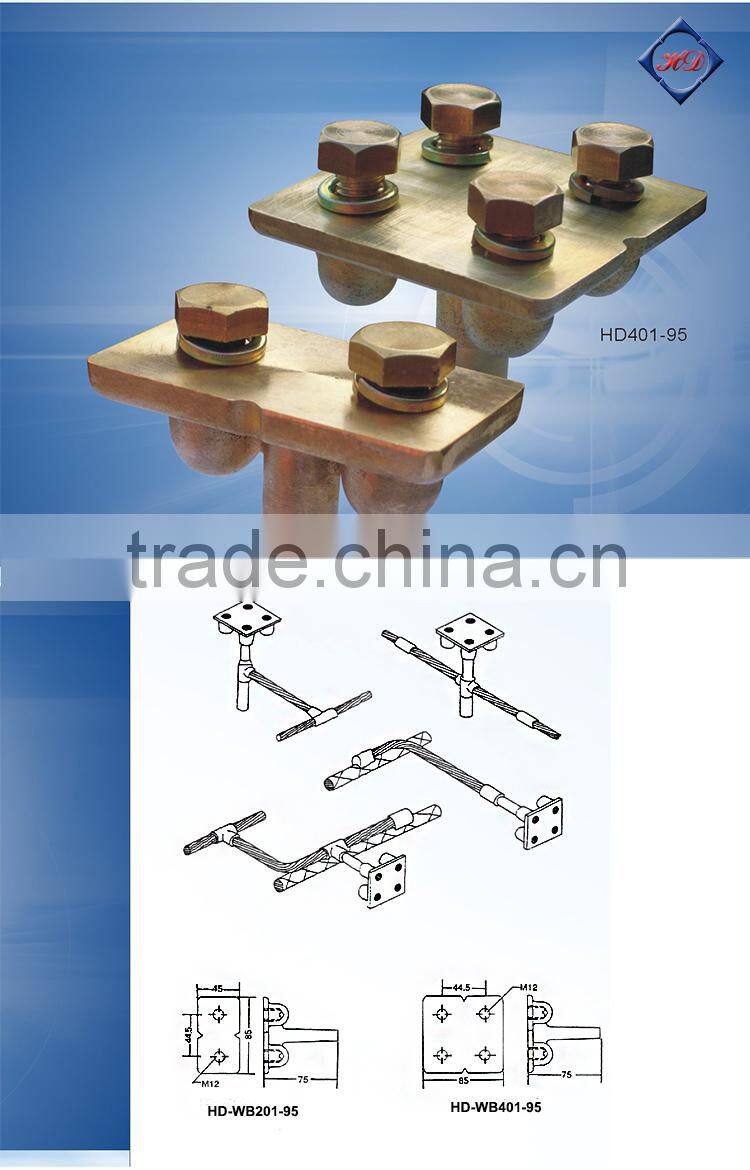

*HD-WB201-95
1) Material: 58# Cu ( copper content: 58%)
2) dimensions: Length: 84mm* Width: 44mm*thickness: 8.5mm,
stem Diameter: 10.7mm, stem length:70mm
3) Hole dimension: M12*25mm
4) materials of bolts and screw caps: 58# Cu ( copper content: 58%)
5) Net weight: 0.48kg( including weights of two bolts and two screw caps and two washers)
*HD-WB401-95
1) Material:58# Cu ( copper content: 58%)
2) dimensions:Length: 84mm* Width: 84mm*thickness: 8.0mm,
stem Diameter: 18mm, stem length:70mm
3)Hole dimension: M12*25mm
4) materials of bolts and screw caps: 58# Cu ( copper content: 58%)
5) Net weight: 0.94kg( including weights of four bolts and four screw caps and four washers)
The product can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.
|
|
|
|
|
|
||
1.Are you a trading company or manufacturer? |
| Manufacturer with factory! |
| 2.What kinds of Products do you produce? |
| It covers grounding materials ,lightning protection materials,connecting fixing ,grounding conductor,exothermic welding materials,etc. |
| 3.Is Customized Material available? |
| Yes,please offer your required specs. |
| 4.Do you Accept OEM service? |
| YES! |
| 5.What's your Delivery Time? |
| Normally 15-25days |
| 6.What's the Payment Trems? |
Usually,T/T 30% in advance as deposit,and T/T 70% against the B/L. |
| 7.How you pack products? |
| Normally,in steel pallet.We'll do according to customers' requirement. |
| 8.What's your available port of Shipment? |
Normally,Ningbo port or ShangHai Port |
