Specifications
1.width:600-1250mm2.thickness: 0.14-1.20mm
3.zinc coated: 60-180g/m2
Item |
Galvalumed Color Steel Coil |
|
Grade |
DX51D, SGCC, CGCC |
|
Thickness |
0.14mm-1.20mm |
|
Width |
600mm-1250mm(914/1219/1220 are available) |
|
Standard |
JIS G3312, ASTM,GB/T1275 |
|
Certificate |
ISO9001:2008 |
|
Length |
As per requests |
|
Zinc Coating |
60g-180g/m2 |
|
Lacquer Coated |
5+15-20 microns/5-10 microns |
|
Coil ID |
508mm/610mm |
|
Coil Weight |
normally 3-8mt. 5mt suggested |
|
Supply ability |
250,000Mt/Year (MOQ:25Mt) |
|
Color |
RAL No. |
|
Price terms |
FOB,CFR,CIF |
|
Payment terms |
L/C,T/T |
|
Deliver time |
Within 20 days |
|

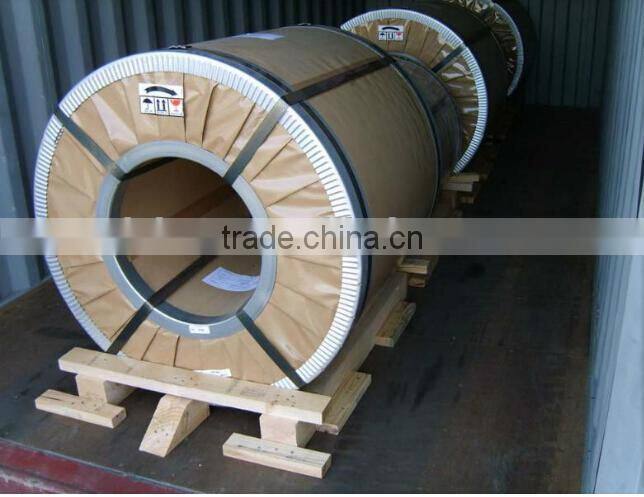

Packing |
Exporting package standard. steel strip Water proof paper, metal covers, |
|
Application |
Corrugated roofing,outside building, boating building,car producing household appliance, |
|
|
Process
|
Pretreatment (Degreasing) — Drying— Chromating Paint Basic Oil—Cooling— Drying—Color Coated—Cooling—Film —covering—Rolling Up |
|
(The special order can be negotiated.)
…………………………………………………………………………………………………………………………
Features:
The features of color coated galvanized steel coil (PPGI)
1.uses hot dip galvanized metal strip as the base material 2.zinc layer protection, dope on the zinc layer can cover and protect metal strip from rust
lor coated sheet is light, beautiful and has good anti-erosion performance
4. can be further processed directly, corrugated or formed etc. 5. life span of PPGI is usually 1.5 times longer than that of galvanized steel coil 6. they are mainly applied for construction, decoration, roofing title, wall panel, furniture, transportation and other industries
7.as a rich experience manufacturer, we provide quality product, competitive price and reliable after-sales service.
Definition of Color coated steel coils (PPGI)
The color coated steel coil is a kind of coated steel, with the hot dip galvanized steel sheet, hot dip galvalume steel sheet or Electro galvanized steel plate as substrate. After the chemical degreasing and the chemical conversion treatment, paint organic coatings of one or several layers, then baked cured. It called the color coated steel coil because of the various color.
Service life (PPGI)
The color coated steel coil has the protection film of organic coating except the protection of zinc coating (Al-Zn alloyed coating), 0.5 times longer than the galvanized steel plate.
Characteristics of color coated steel plate (PPGI)
Light weight, attractive, good corrosion resistance.
Applications of color coated steel coil (PPGI)
Architecture
Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
