MS130028 Zomax Hiace 3y/4y Gearbox

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Transmission Assembly	Car Make	TOYOTA NISSAN ISUZU
Size	58.54128.5	Place of Origin	Zhejiang, China
Brand Name	ZOMAX	Model Number	Match for Toyota Hiace 3Y/4Y minbus
Warranty	1 Years

Toyota hiace 3y/4y manual zomax transmission

SPECIFICATION:
1) Manual transmission with three-shafts

2) Separated structure is designed to reduce maintenance costs and expand series products easily

3) Adopts aluminum-alloy case and cast iron intermediate plate for a lightweight structure with big torque and low noise operation

4) All gears adopted optimum designed spindly teeth and precision shot peen gear faces and roots to decrease noise of and increase carrying capacity

5) Forward gear with synchronizer with unique structural design for fifth and reverse gear which decreases synchronous moment of inertia and shift force

6) Low reverse gear is designed to decrease lock rate and the shifting gear lock is adopted to avoid reverse gear shifting in error when shifting out of fifth gear

7) With a remote control and cable ideal for use on buses, MPVs, pickups, SUVs and other light vehicles

We can supply manual gearbox for Toyota Hiace and Hilux new model(2TR, 2KD), Isuzu and Mitsubishi, matched the engines of Toyota 3Y, 4Y, 2RZ, 3RZ, ISUZU 4JB1.2TR, 2KD

TECHNICAL PARAMETER:
Max input power	102 Kw/5400 rpm
Max input torque	200 N.m/3000 rpm
Center distance	72mm
Ratio		1st	2nd	3rd	4th	5th	Rev	chioce
	1	3.7	2.02	1.37	1	0.8	4.47
	2	3.93	2.33	1.45	1	0.8/5	4.74
	3	4.45	2.4	1.41	1	0.8	4.47
	4	4.45	2.62	1.52	1	0.85	4.47
	5	5.01	2.95	1.71	1	0.9	5.03
Ratio of speedometer	17,18,19,20,21,22/5,6
Lubrication oil type	75W/90(GL-4)
Oil capacity:	2L
Weight:	31.5KG
Applicable engine:	491 (Toyota: 3Y, 4Y), 4G24 (Toyota: 2RZ, 3RZ)
Applicable vehicle:	Coach bus, MPV (Toyota: Hiace)

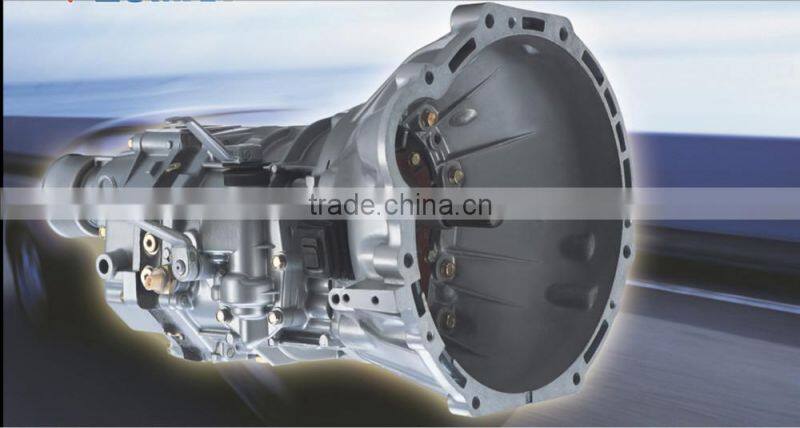

PICTURE:

PACKING:

In carton

SIZE:58.5 × 41 ×28.5 CM

GW:33 KG

NW:31.5 KG

Also can do the packing as your design

CERTIFICATE:

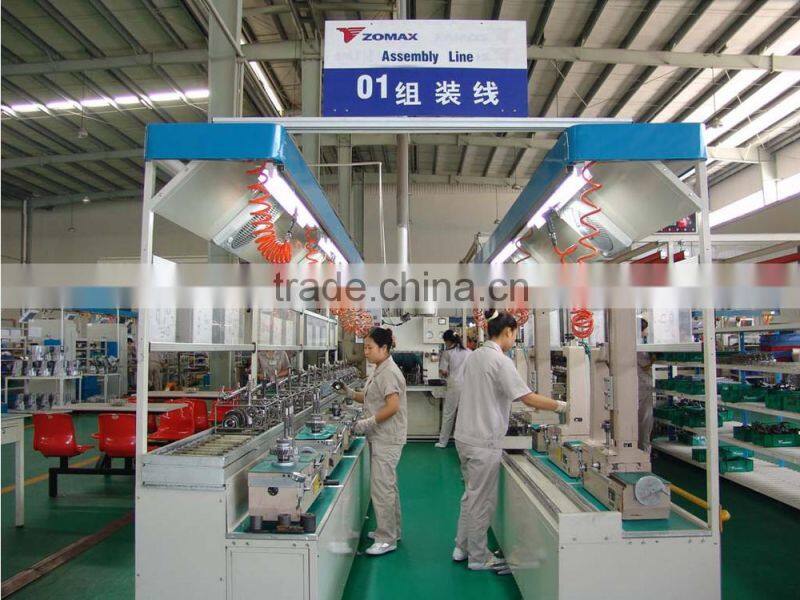

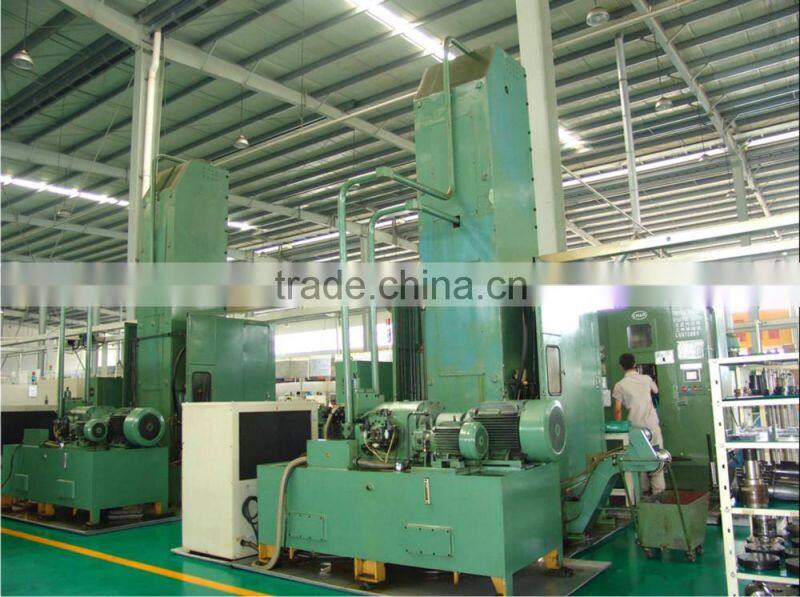

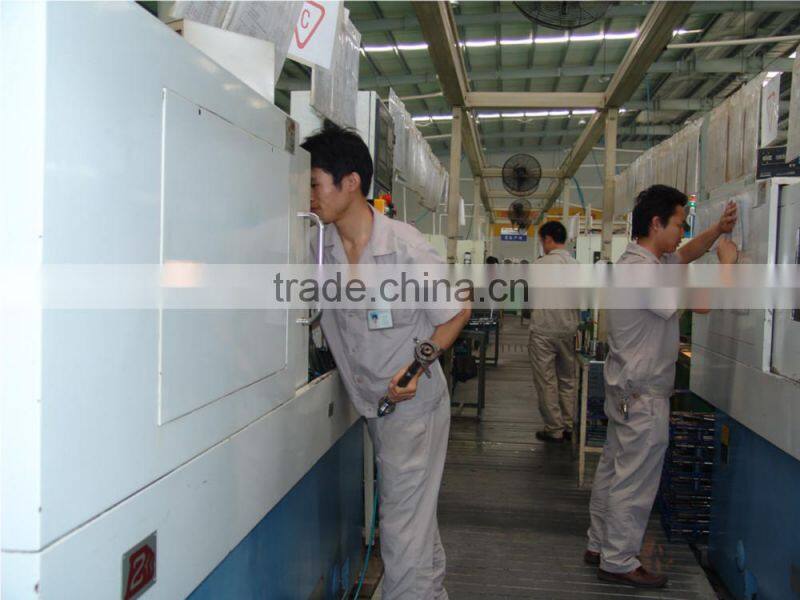

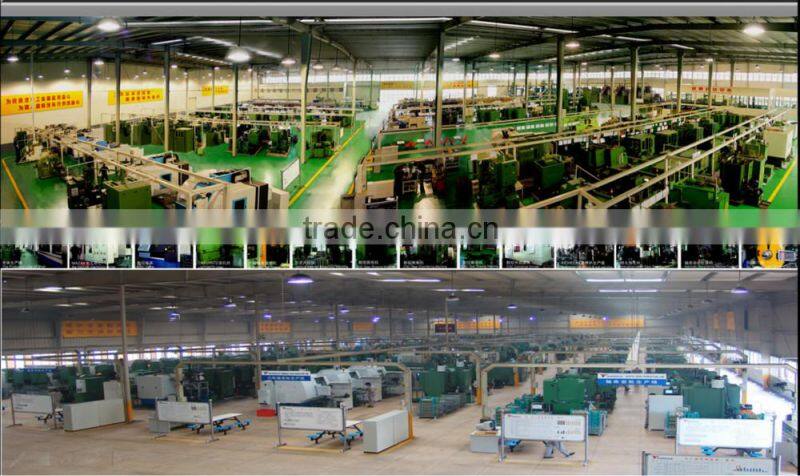

FACTORY:
