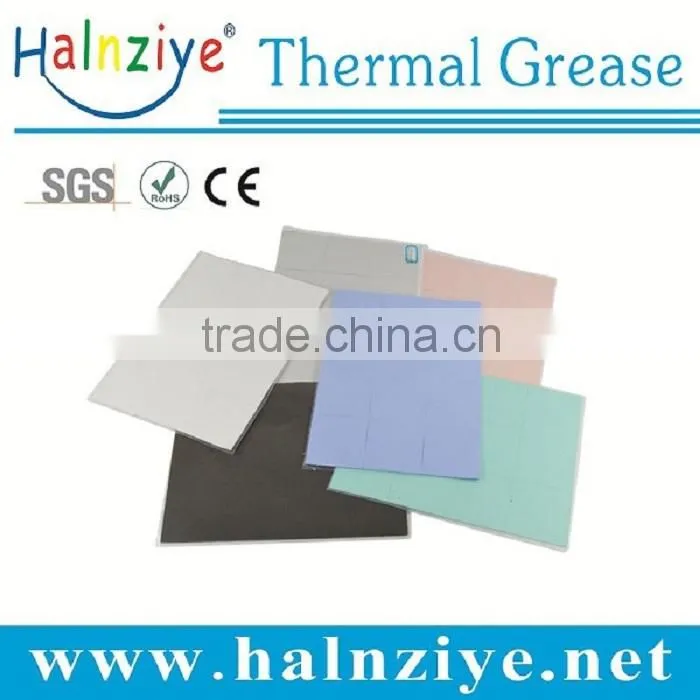

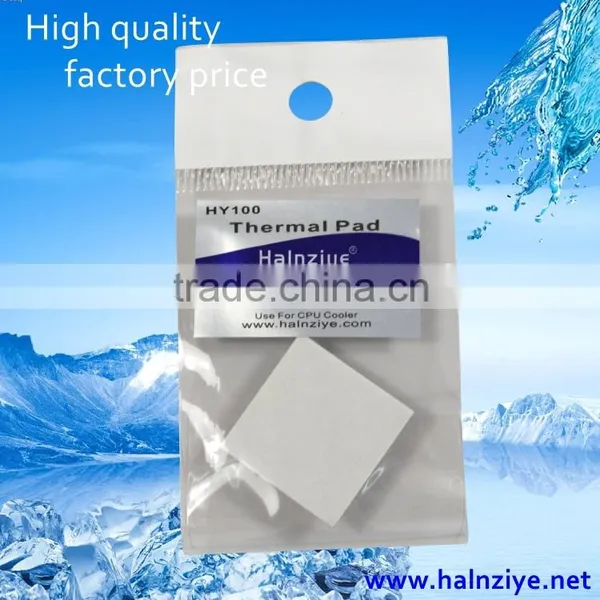

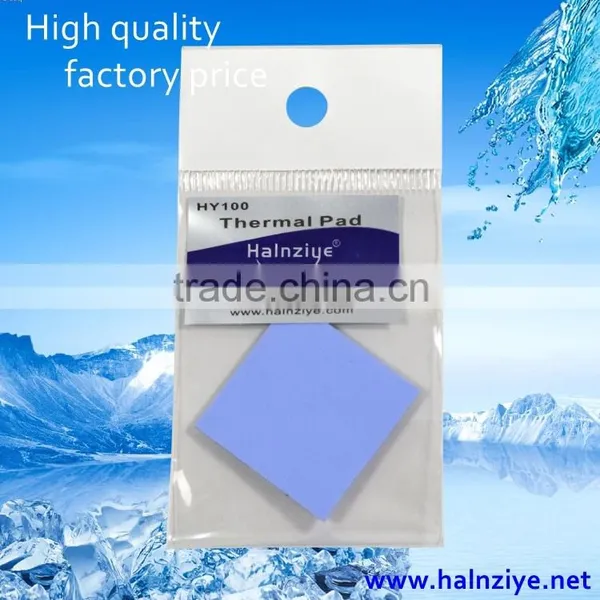

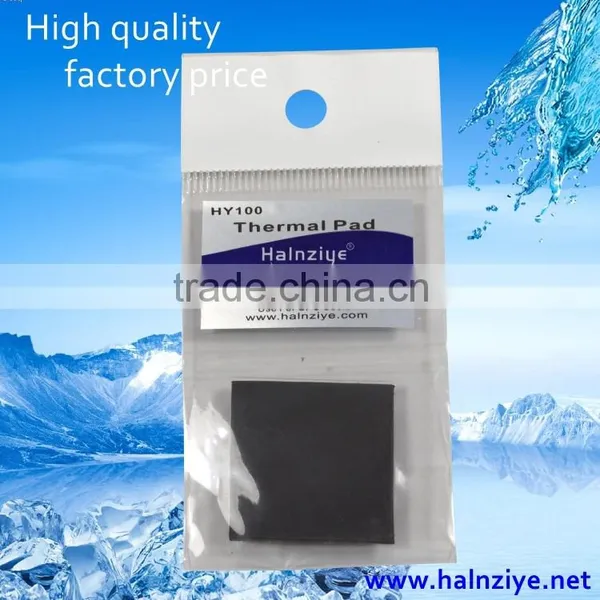

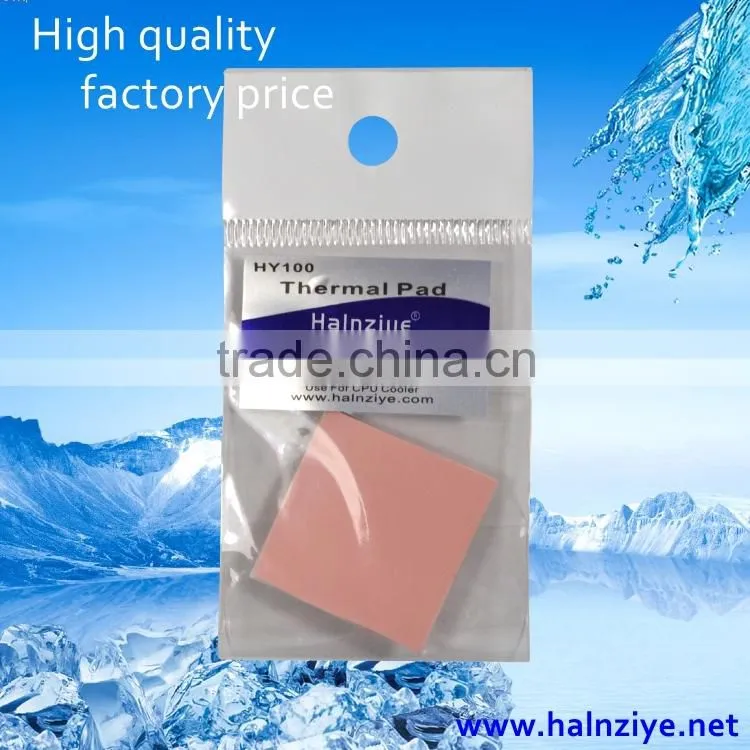

Halnziye thermal conductive heatsink silicone soft gap pad with 2.0W/m-k~4.5W/m-k
Briefly details:
- Brand:Halzniye
- Model:HY100
- A variety of thickness options, wider application
- Soft surface with better compatibility
Highlights:
- thermal conductivity 2.0W/m-k~4.5W/m-k
- Compliancy, high compressibility
- low oil bleed-long term stability
- electrical insulation
- REACH&RoHS&CE Compliant
- if order more than USD300 first time, we will send you a sample carbon contain over 20 different thermal grease hot sell package samples with free cost with your order.
HY100 Features: high thermal conductivity &low thermal inpendance good insulation and proof voltage,good compatibility with soft surface different thickness to fullfil your demands.
The biggest advantage of HY100 die-cutter performance,easy to cut with different shapes. Its good surface wettablitity and cooling performance to ensure easy setup.
RoHs&PFOS&REACH appliant with SGS testing report.
Properties:
design for electronic components heat transfer:
| Properties | HY100 |
Unit |
Tolerance |
Test Method |
Color |
White and so on |
- |
- |
Visual |
Thermal conductivity |
2.0~4.5 |
W/m-k |
±0.2 |
ASTM D5470 |
Thickness |
0.5~4 |
mm |
- |
ASTM D374 |
Specific Gravity |
>1.8 |
g/cm ³ |
- |
ASTM D792 |
Dielectric Breakdown Voltage |
16 |
kv/mm |
± 1.6 |
ASTM D149 |
Thixotropic Impedance |
<0.25 |
°C -in2/W |
- |
ASTM D5470 |
Tensile Strength |
30 |
kgf/cm ² |
- |
ASTM D412 |
Fire-protection Rating |
V-0 |
UL-94 |
- |
- |
Hardness |
12 |
Shore c |
- |
ASTM D2240 |
|
Operation Temperature (Peak) |
-60~250 |
°C |
- |
- |
We, Shenzhen Halnziye Co., Ltd. are senior Thermal Grease thermal glue manufacturer
in China for years, our main products are heat sink compounds & heat sink plaster

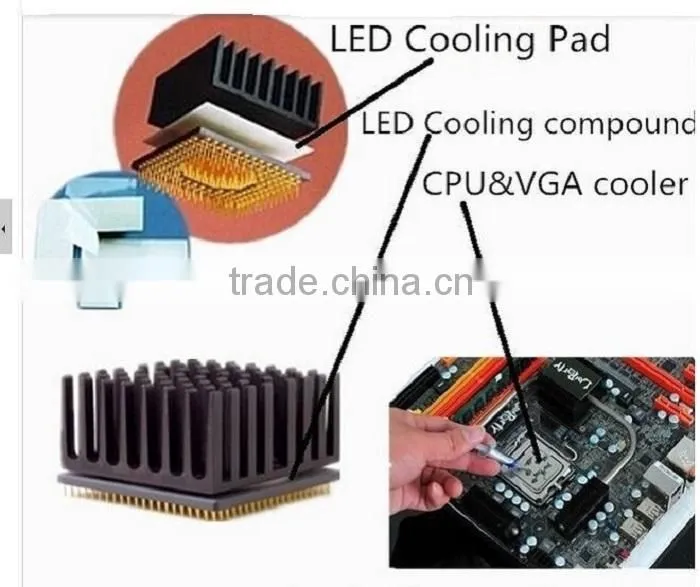

& heat sink flow and thermal pad, our products are widely used in CPU&VGA, LED, IC etc, with great operating property of our products (all products got SGS,Rosh certification), and our main markets are EU, north America, Northeast Asia, Southeast Asia etc,including Huawei,Lenovo,Foxconn,Zalman,Cooler
Master,Spire etc. I believe you will find what you want to order with the best cost performance
Halnziye has never stopped the pursuing of good quality, and the performance of the products have all passed SGS authentication,the test items including CE, RoHS, PFOS, and SVHC etc.And in authoritative tests like CEPREI and Germany EKL.
—Packaging:Export standard packing: 1.Small carton 32.5* 21.5*13.5cm
2.Mid carton 44.5*32.5*13.5cm 3.Big carton 60*40*45cm
—Shipping: EMS,DHL,TNT and so on.
- We provide free samples for testing. Please feel free to contact our sales.
- We can offer competitive prices and after sales services.
- Products Exchange&Returns(you should provide pictures or viedo or testing data to confirm that it is our product's problem)
Payment
Paypal,T/T transfer and Western Union are available, more details please check the bank account on Bank Information page,any problem about the payment,contact us at any time and if you make payment,inform us please.
1>Lead time:
Less than or be equal to 1000pcs In 3 working days;other quantity depends on arranging of our factory.
2>Delivery period: 3~5 working by Express door to door service and airport to airport service, if by ship, it depends on schedule and destination.
3>All Emails will be answered in 12 hours, if you do not receive our reply,please send it again and we will reply as soon as possible.
4>Any other question , no hesitate to contact us
