Specifications

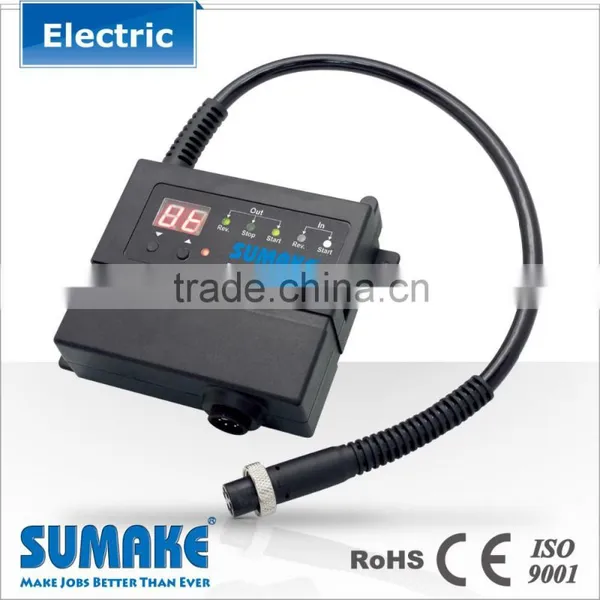

Brushless Electric Screwdriver Signal Controller- Slow-start motion
- Start/Reverse/Break output
- Input Start /Reverse
Output R LED (Green Light) Output Stop LED (Green Light) Output Start LED (Green Light)
# 8,COM 5 short circuits # 7,COM 5 short circuits active # 6,COM 5 short circuits active
active represents reversing. represents shut-off. represents running.
(reverse-output) (break-output) (start-output)
Slow-start motion In R LED (Bright Light) In Start LED (Bright Light) DIP SW
RC: Slow-start time # 3,4 short circuits, and # 1,2 short circuits, the
SP: Slow-start speed yet, starting with input signal screwdriver is running
Ut: Duration of the running time (1,2 short circuits) to reverse automatically. (start-input)
the screwdriver automatically
|
No |
Name |
Function |
Illustration |
1 |
DIP SW1 |
Enable |
ON: OFF: |
|
2 |
DIP SW2 |
Breaking released |
ON: OFF: |
|
3 |
DIP SW3 |
NC |
|
|
4 |
DIP SW4 |
NC |
|
SW1 ON |
Along with short circuits active # 9,10, the screwdriver would be run by operators at will. |
Along with short circuits active #1,2 + 9,10, the screwdriver would be run automatically | |
SW2 ON |
Screwing onto position (shut-off) the signal would be active and the signal would be off once the starter has been released. |
SW2 OFF |
Screwing onto position (shut-off) the signal would be on and the signal would be off while going forward next operation. |
For More Electric Screwdrivers & Power Supply, Please Click HERE!
Equipment instruction:
♦ Please follow the input voltage of 24/32V or 40V to the screwdriver and choose the suitable power supply.
♦ Please connect 1M cable to the power supply, and the other side connects the 2M cable to the screwdriver.
♦ Do not exceed input voltage up to 400mA 60V voltage.
♦ Digital multipoint systems of RS485 application work effectively over long distances and in electrically noisy environments.

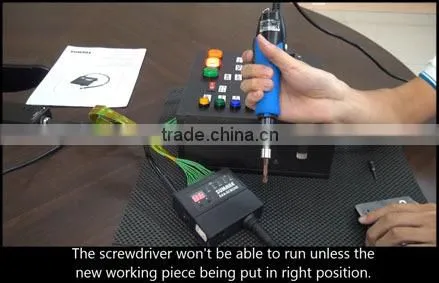

View the Video Now!! http://youtu.be/X0_wxOHqxJs
