Specifications

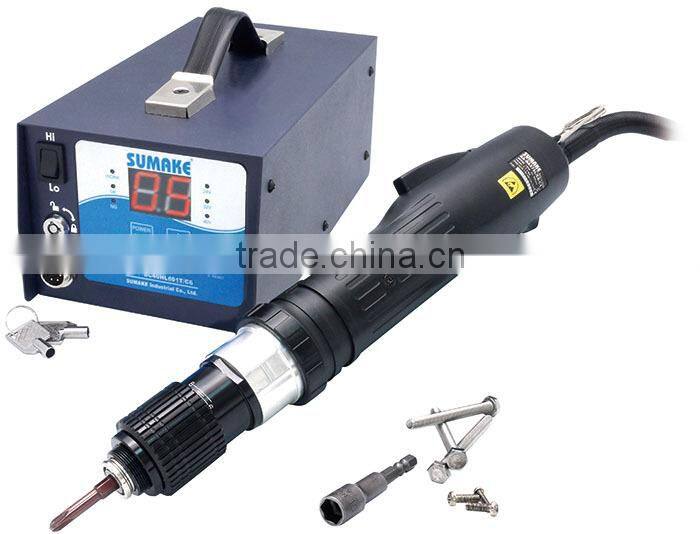

Integrate Digital screw counter brushless power supply* Signal Input/Output function for PLC control screwdriver
Digital integrate Function Upgrade screw counter brushless power supply
(WITH CE/UL CERTIFICATED)(6 PIN) ~ Function Upgrade - V3.0
Model No. |
SP-BC40HL501T/C6 |
Input Voltage |
AC 100-240V, 50/60HZ |
Output Voltage |
DC 40V/32V/24V |
Output Walt |
220W |
Count |
1- 99 |
Count Method |
Count-up / Count-down |
Work with Sensor |
ON / OFF |
GATE Sensor |
ON (2 Sensor) / OFF (1 Sensor) |
Slow-Start Time Adjustable |
0.1- 9.9 seconds |
Slow-Start Speed Adjustable |
Lo: 100% L1-L9: Rated speed 35%-85% |
Running Time Limit - LO |
0.0- 9.9 seconds |
Running Time Limit - HI |
0.0- 9.9 seconds |
Reminder Mode |
On / OFF / FF / EF with LED and buzzer |
Auto ZERO |
ON / OFF |
Screwdriver Control |
HI / LO: Slow-Start |
Dimensions |
247x130x100mm |
Weight |
2.4 kgs |
♦ POWER SUPPLY WITH CE CERTIFICATED
♦ Recommend: To be ordered with the screwdriver together
♦ Suitable Model: EA-BN630 ~ EA-BN650 (10~50kg/cm ,0.98~4.9 Nm)
EA-BAN960 ~ EA-BTN9180 (20.4~183.6kg/cm ,2~18 Nm)
♦ Signal Input/Output function for PLC control screwdriver:
External inputs: Forward/Reverse/Disable/Confirm/Sensor/Clear
External outputs: OK/NG/OK ALL
For More Electric Screwdrivers, Please Click HERE!
Features:
♦ Convenience design combine power supply and screw counter
♦ Compatible with PLC based process control system; accurate counting on screw fastening.
♦ Auto leaning function built-in could judge the best setting value.
Able to setting running speed & timing by Slow-Start function.
♦ Selection on auto-reset retrieval or manual reset retrieval.
♦ Enhances the auto-identified screw fastening time mode, allow user to aim at simulating the duration of specific screw fastening.
♦ Displaying the number of unfinished screw counts, user can add external sensor switch to prevent operation error.
♦ Buzzer alert while complete a fastening cycle. Internal signal for detecting screw count is also able to connect external devices.
♦ Capable with output and input signal; accurate calculation through the signal of sensor to prevent improper operation. Suitable for semi or full automatic production line.
Sales points/ Focus:
- Quality assurance
- Good after-sales service
- Favorable price
- Great variety of products
- OEM and ODM service provided
R&D design
Innovation design
Contact
You can contact us at any time. Tel: 886-2-26593500
For further product info., welome to visit our homepage:
Send Inquiry to This Supplier
