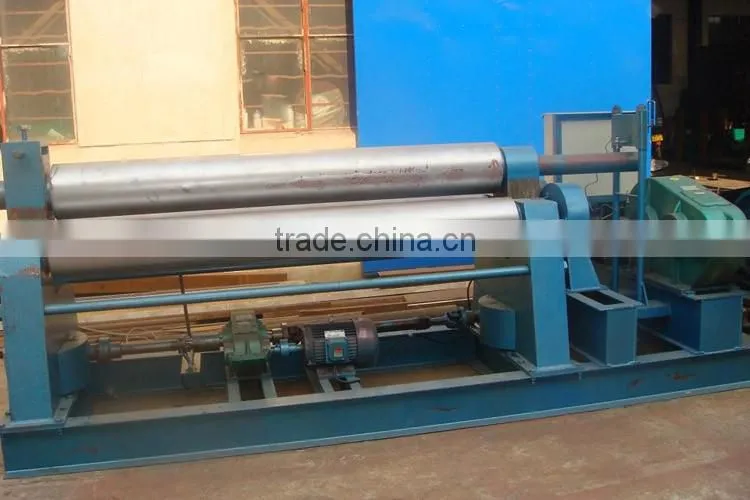

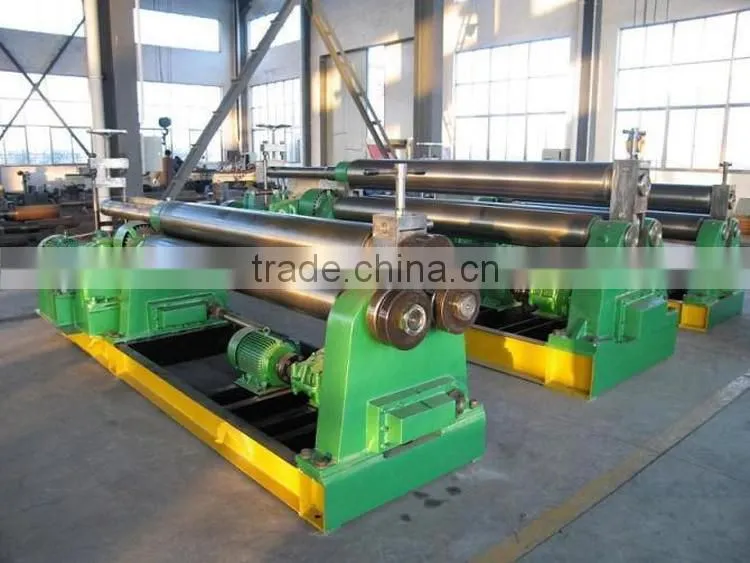

W11 Economic Electronic Rolling Plate Machine
Features:
W11 series economic elecronic bending rolling plate machine has the features of stable structure, low consumption, manual adjustment and easy to operate. And it’s the best choice for industries of decoration and pressure vessel etc.
Specification:
1.0-1.5m electric rolling plate machine | ||||
|
Item Technical parameter |
Decelerating trunk: 150, 200 type |
|||
A (mm) |
B (mm) |
C (mm) |
||
Rolling plate diameter |
>= |
>= |
>= |
|
Rolling plate thickness |
Stainless steel |
0.4-1.5 |
||
Iron steel |
0.5-2.0 |
|||
Motor power |
Rate 6 1.1kw 380V 50HZ |
|||
2.0-2.5m electric rolling plate machine | |||
|
Item Technical parameter |
Decelerating trunk: 250, 350 type |
||
A (mm) |
B (mm) |
||
Rolling plate diameter |
>= |
>= |
|
Rolling plate thickness |
Stainless steel |
0.8-6 |
|
Iron steel |
1.0-10.0 |
||
Motor power |
Rate 6 1.1kw 380V 50HZ Rate 4 7.5kw 380V 50HZ |
||
Electric rolling plate machine type A 3.2m, type B4.1m | |||
|
Item
Technical parameter |
Decelerating trunk: 200, 250 type |
||
A (mm) |
B (mm) |
||
Rolling plate diameter |
>=Φ160-3200 |
>=Φ200-4100 |
|
Rolling plate thickness |
Stainless steel |
0.5-1.5 |
|
Iron steel |
0.6-2.0 |
||
Motor power |
Rate 6 1.5kw 2.2kw 380V 50HZ |
||
Custermized are also welcomed!
Main Model:
W11-2*1000 W11-4*1000 W11-6*2000
W11-2*1300 W11-4*1500 W11-6*2500
W11-2*1500 W11-4*2000 W11-6*3100
W11-2*3100 W11-4*2500 W11-8*1500
W11-2*4100 W11-4*4100 W11-8*2000
W11-3*1300 W11-5*1000 W11-8*2500
W11-3*1500 W11-5*1300 W11-10*1300
W11-3*1650 W11-5*2000 W11-10*1500
W11-3*2000 W11-5*2500 W11-10*2000
W11-3*2500 W11-6*1300
W11-3*3100 W11-6*1600

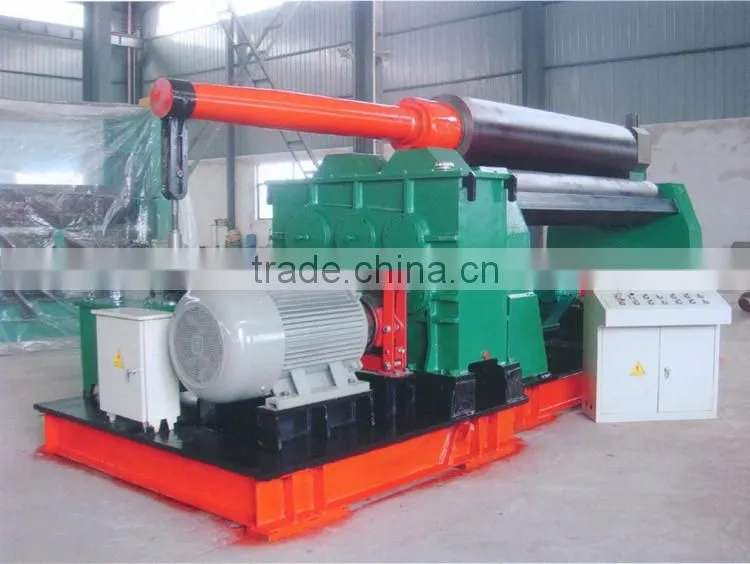

W11S Series Hydraulic Upper Roller Universal Plate Rolling Machine
Features:
1. High accuracy end prebending
2. NC control, high production efficiency
3. Superior precision products
4. Operation safety
5.Integral structure, simple basic and convenient movement
6.Different uses with corresponding control methods
7. Various curved shape

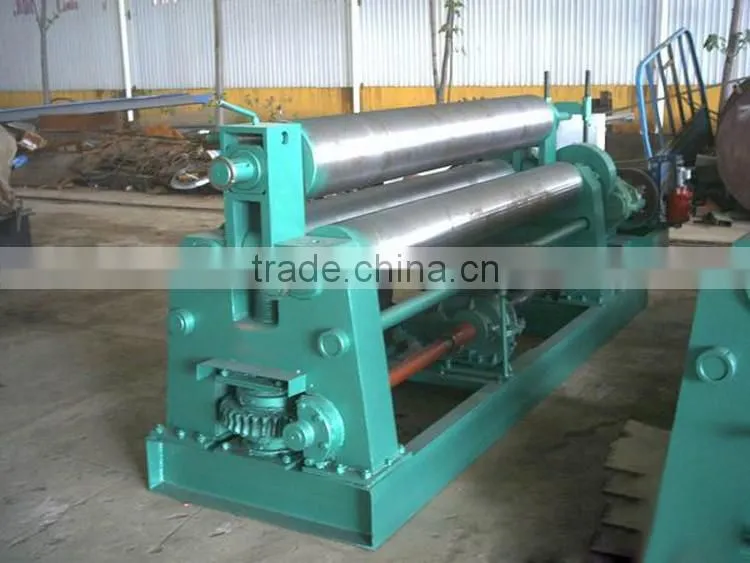

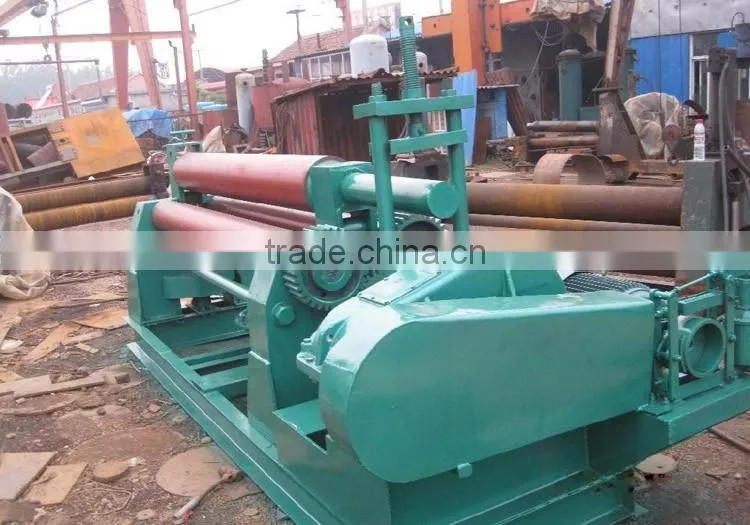

W11 Series Mechanical Three Roller Symmetrical Plate Rolling Machine
Features:
The structure for this series is three roller symmetrical which means that the upper roller moves vertically at the central symmetrical position between the two lower rollers, which obtains by the worm drive of the lead screw and the screw nut. The two lower rollers rotate and provide torque for the rolling plate by the mesh of the reducer’s output gear and the lower roller gear. This W11 series mechanical three roller symmetrical plate rolling machine has compact structure and convenient operation of repair.
