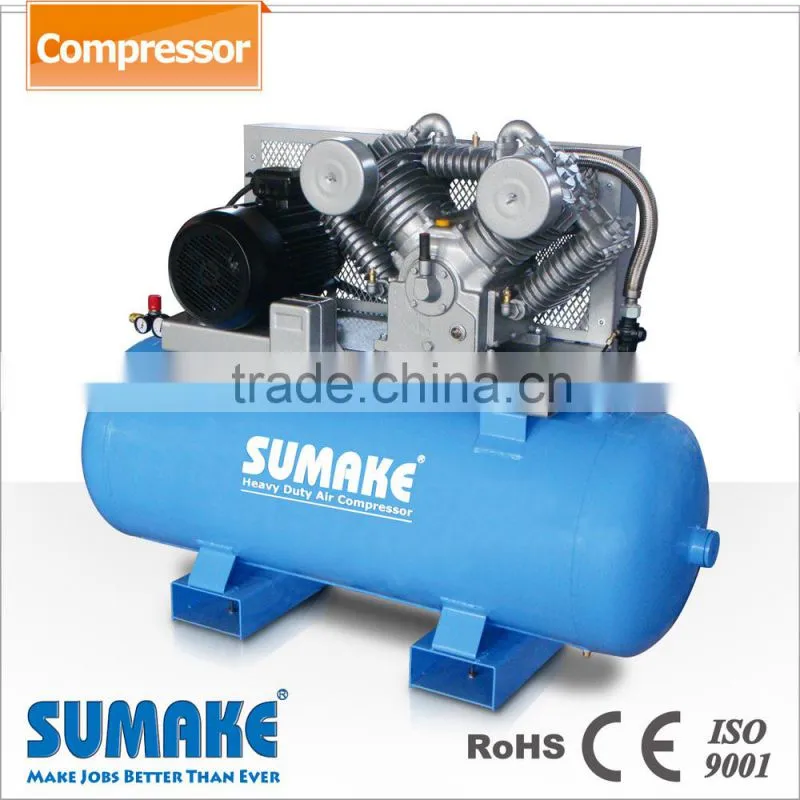

10HP Two Stages Tri. Phase 270L Tank Pump Compressors

10HP Two Stages Tri. Phase 270L Tank Pump Compressors thumbnail-1
10HP Two Stages Tri. Phase 270L Tank Pump Compressors thumbnail-2
10HP Two Stages Tri. Phase 270L Tank Pump Compressors photo-1
10HP Two Stages Tri. Phase 270L Tank Pump Compressors photo-2
Negotiable MOQ: 1 Pallet (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SUMAKE
Model Number:
LT100NV-100TI-270
Contact Supplier Request Quote Chat Now
Sumake Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SUMAKE
Model Number LT100NV-100TI-270
Type Air Pump
Average Air Consumption 42.8 CFM
Maximum Torque Motor: 10 HP
No-Load Speed 2,900 RPM



Product Description

10HP Two stages Tri. phase 270L tank pump compressors

Sumake is your best one stop for Air pump and Belt type air compressor resource sysem, Provides products, services and solutions that enhance our customer’s energy efficiency, productivity and operations. Our diverse and innovative products ranged from 1.5 HP TO 10 HP, also have excellent source for different accessories. (Jetco Kit, Air tools, Electric Motor…



Model #LT100NV-100TI-270



Model

 Motor Motor Voltage Ampere Hertz Speed of Motor Speed of Pump Air Inlet Air Outlet Air Outlet Tank Capacity Working Pressure Maximum Pressure Net Weight Outer Dimension L x W x H
  HP Kw V A Hz R.P.M. R.P.M. CFM (L/min) 90psi (6 bar) 115psi (8 bar) liter Bar Bar Kg mm

LT100NV-100TI-

270

 10 7.5 380 15.8 50 2900 786 42.8 cfm (1211 L/min) 29.1 cfm (823 L/min) 26.9 cfm (763 L/min) 270 10 12 249 1500 x 525 x 1135





Motor: 10 HP (7.5 KW)

Frequency: 50 HZ/ 380V

Ampere: 15.8A

Air inlet : 1211 L/Min (42.8 C.F.M)

Out inlet(90psi/6bar): 823 L/Min(29.1 C.F.M)

Out inlet(115psi/8bar):763 L/Min(26.9 C.F.M)

Free Speed:

Motor-2;900 RPM; Pump-786 RPM

Working pressure: 10 bar

Maxi. Working pressure: 12 bar

Tank Cap.: 270 Liter

N.W.: 249 kgs

LXWXH: 1550x525x1135 mm



Feature:

Accessories incl:

-3M of 4 x 2.5mm2 Power cord

-Drain valve

-Automatic pressure switch

-1/2"Safety valve

-1/4" Exhaust connector

-3/4" Ball Tap.

**More produts, please link our site - .tw * *
