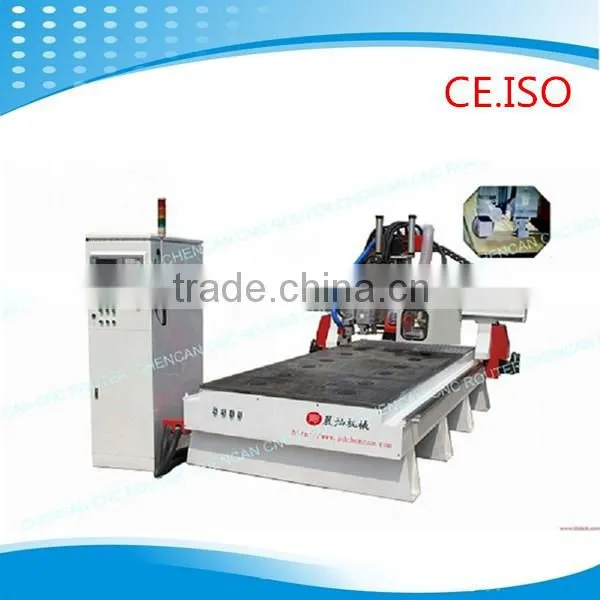

Manufacturer 1325 Auto-tool Changer CNC Router with Gang Drill and Saw
-----CC-MS1325ADH Model

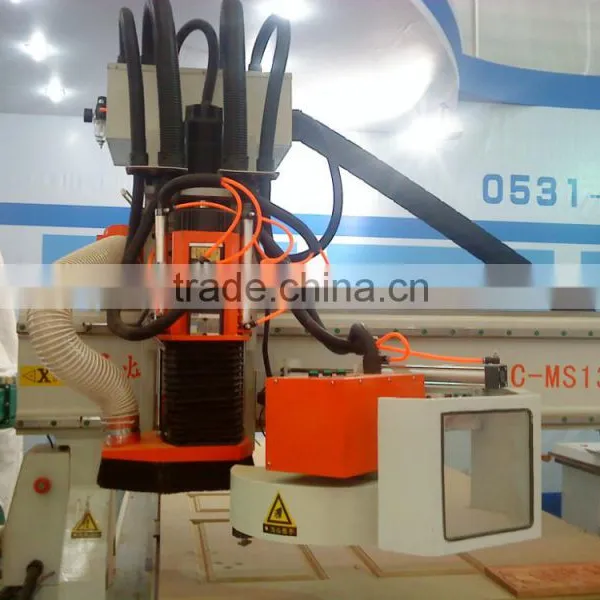

1..Circle style automatic tool changer with 8 pieces of tools in total. Changing the tool automatically only needs 8 second. It used to engraving and drilling holes on top space.
2. Italian Combination drill (11 bits+ 1 saw blade), saw blade for cutting panels into
different sizes “X” axis and “Y” axis, drilling for cut holes on 4 side faces of
wooden panel for insert lockset(perpendicular to “Z” axis)
3. Lathe body is welded with seamless thick steel structure, the stability is excellent,
not easy to be deformed.
4. Automatic lifting device for Vacuum suckers allows the easy operation on the side
of working pieces, vacuum working table with double cavities and Bakelite material
with high absorption power. Even if you cut 1300*2500MM size panel into 12-15 pieces,
this vacuum table can absorb it very well.
5.Three axes adopt Hiwin high precision square orbit; x and y axes adopt rack and pinion
transmission, fast working, high efficiency and low cost; z axis adopts imported ball screw,
with high precision and long life time.
Parameter:
Description |
Model |
X,Y Working Area |
1300*2500mm |
Z Working Area |
200mm |
Table Size |
1440*3040mm |
Resolution |
±0.05mm |
Max. Idling Speed |
70m/min |
Spindle Motor Power |
Italy HSD 9.0KW |
Auto-tool changer |
Circle auto-tool changer with 8 cutters |
Working Mode |
YASKAMA Servo motors and drivers |
Operating System |
Taiwan made Syntec control system |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Vacuum system |
Yes |
Lathe Structure |
Seamless welded steel structure |
X,Y Structure |
Rack and pinion transmission, |
Imported HIWIN guiding rail | |
Z Structure |
High-precision Ball screw |
Spindle Rotate Speed |
0-24000r/min |
Working Voltage |
AC380V/50Hz |
Command |
G code,HPGL,U00,mmg,plt |
Diameter of cutter |
φ3.175-φ12.7mm |
Computer environment |
Window 2000/ XP |
Auto oil-injection |
Yes |
Package |
Wooden case |
Samples
Other parts:
Packaging:
Certificates:
