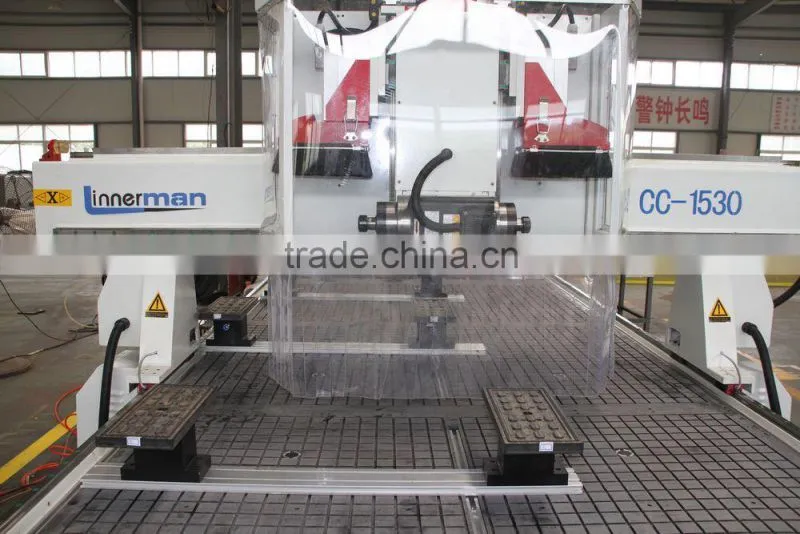

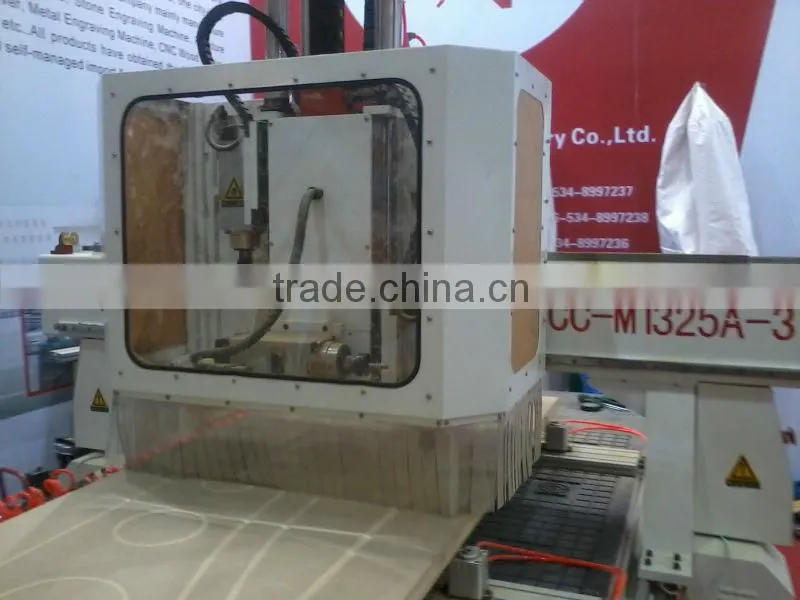

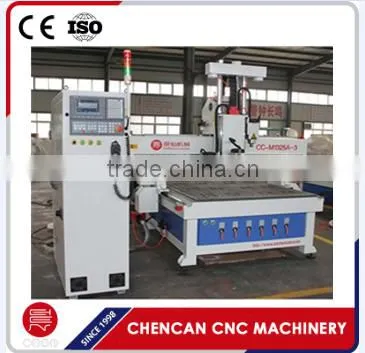

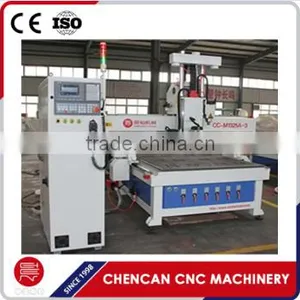

Simple 1325 ATC CNC Router Engraver Machine with Three Heads
Standard Features:

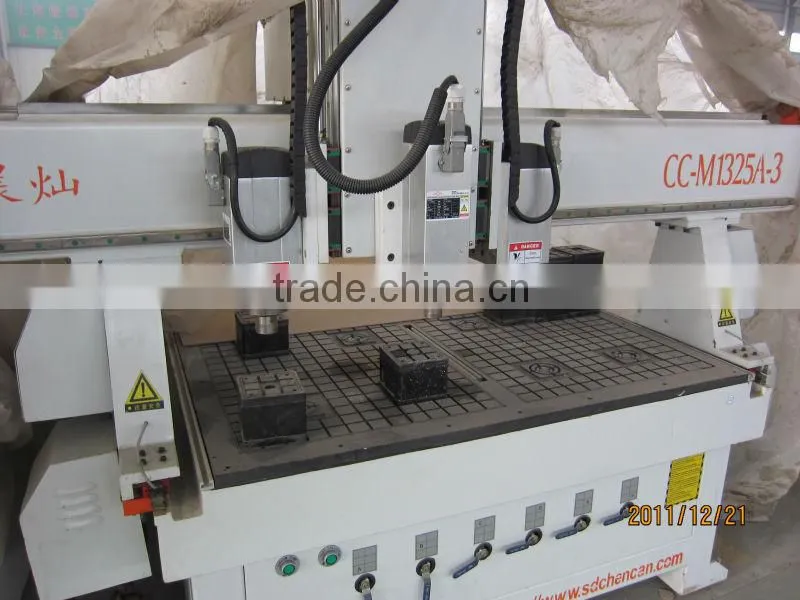

1. Whole machine is welded with seamless steel structure; the stability is excellent, not easy to be deformed. Vacuum table with 6 vacuum zones, which can adsorb different size materials.
2. Three axes adopt Taiwan HIWIN high precision linear orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.
3. Protection device to protect the wire and one emergency switch on each later plate (3 emergency switch totals):
4. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
5. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.

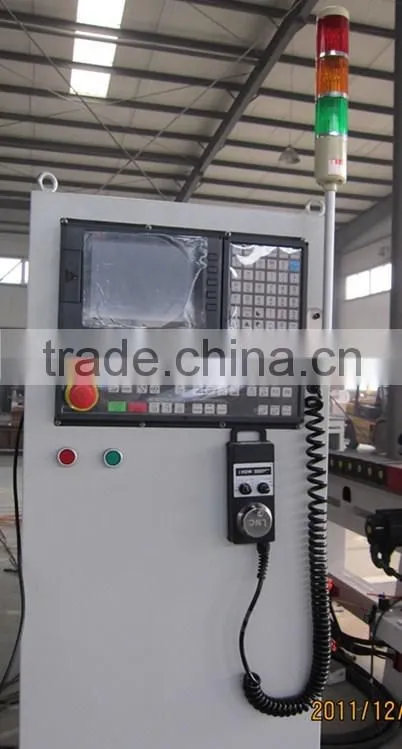

6. Adopting advanced Taiwan Syntec system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.

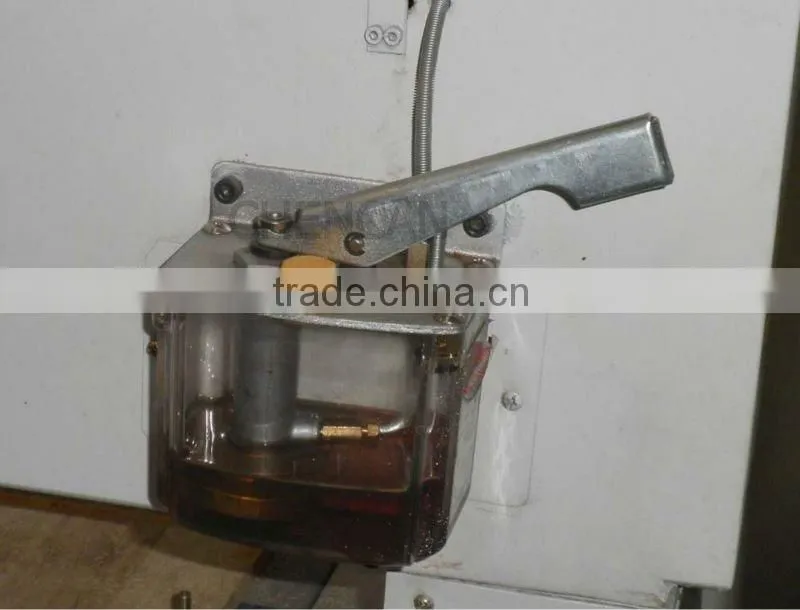

7.Perfect oil-inject system makes maintenance much easier.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
9. Fumigation-free wooden case.

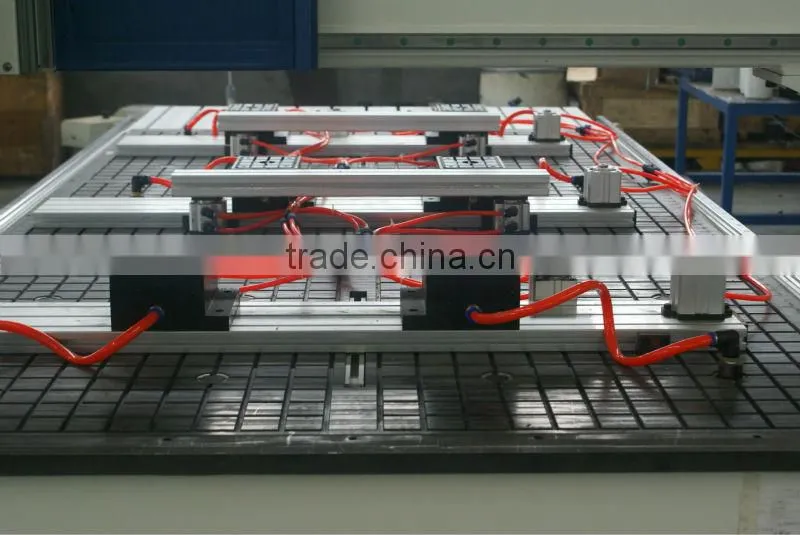

Other Parts:
Applicable industries
Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Processing effect
Our router is widely used for engraving, cutting various shade vulture, relief and ect.
Technical Parameter
Description |
CC-M1325A-3 |
X,Y Working Area |
1300*2500mm |
Z Working Area |
200mm |
Tool change function |
Yes, with 3 spindles |
Table Size |
1640*3040mm |
Package size |
2040*3140*1900mm |
Resolution |
0.1mm |
Max. Idling Speed |
35m/min |
Spindle Motor Power |
two 3.5kw, one 4.5kw air cooling spindle |
Working Mode |
Stepper motors and YAKO drives |
Inverter |
5.5Kw Fulling Inverter |
Vacuum system |
Yes |
Vacuum pump |
5.5kw water cooling vacuum pump |
Operating System |
Taiwan Syntec studio control system |
Lathe Structure |
Seamless welded steel structure |
X,Y Structure |
Rack and pinion transmission, |
Z Structure |
Imported high-precision Ball screw |
Gantry |
Steel gantry |
Rail |
Taiwan made HIWIN square rail |
Spindle Rotate Speed |
0-18000r/min |
Working Voltage |
AC380V/50Hz |
Command |
G code,HPGL,U00,mmg,plt |
Diameter of cutter |
φ3.175-φ12.7mm |
Manual oil-injection |
Yes |
Package |
Wooden case |
Samples:
