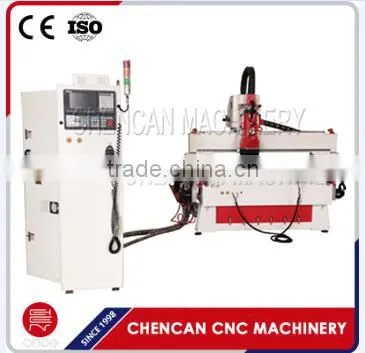

High Quality CHENCAN 1325 4 Axis ATC CNC Machine CNC Router with Rotary
Detailed Product Description
1. Linear style automated tool changer with 6 pieces of tools in total.
2. Adopt Italy-made air-cooled spindle with strong power of 9.0KW, so the machine can keep working for long-time without fault.
3. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and reducing cost. Z axis adopts Germany-made ball-screw and Taiwan Hiwin H30 square orbit, with great accuracy and longevity.

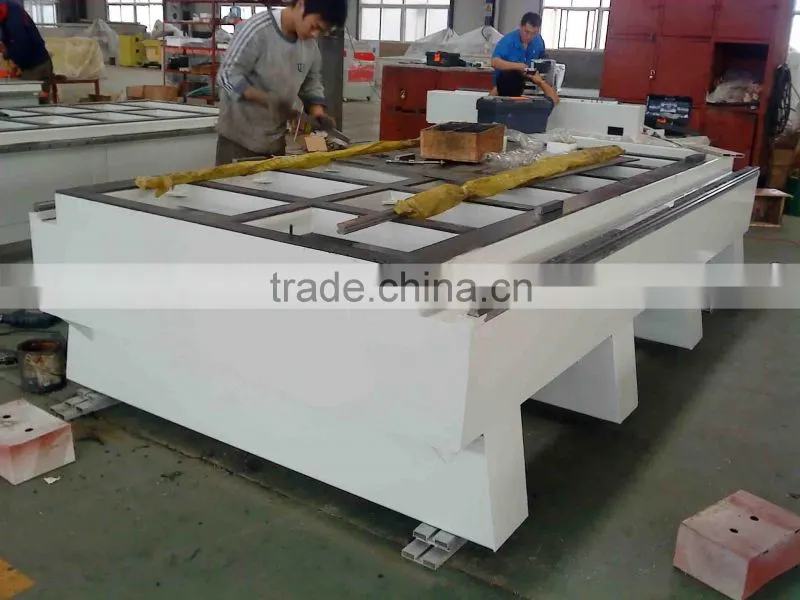

4. Gantry is made of steel, unlike others who adopt aluminum materials. Steel gantry has better stability than aluminum ones.
5. Excellent compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

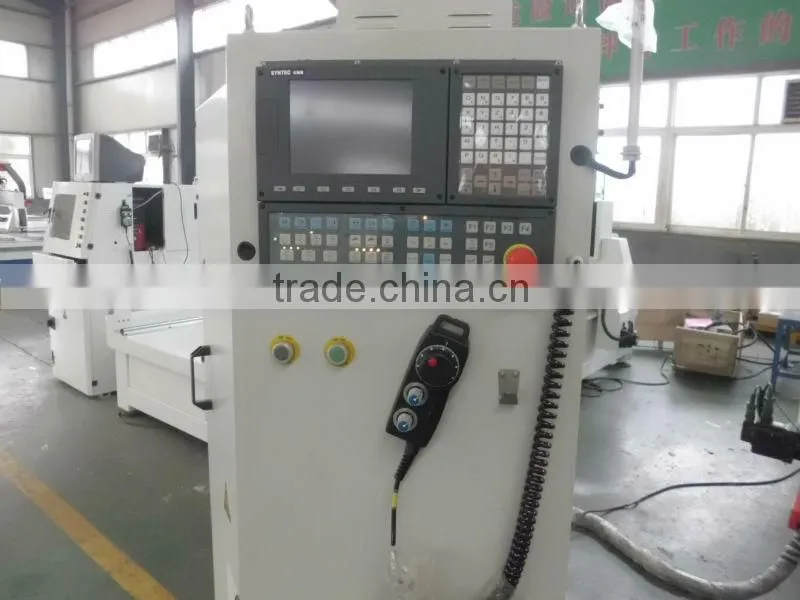

6. Advanced DSP control system makes the operation easier, and the auto tool change system makes the operation safer and convenient.

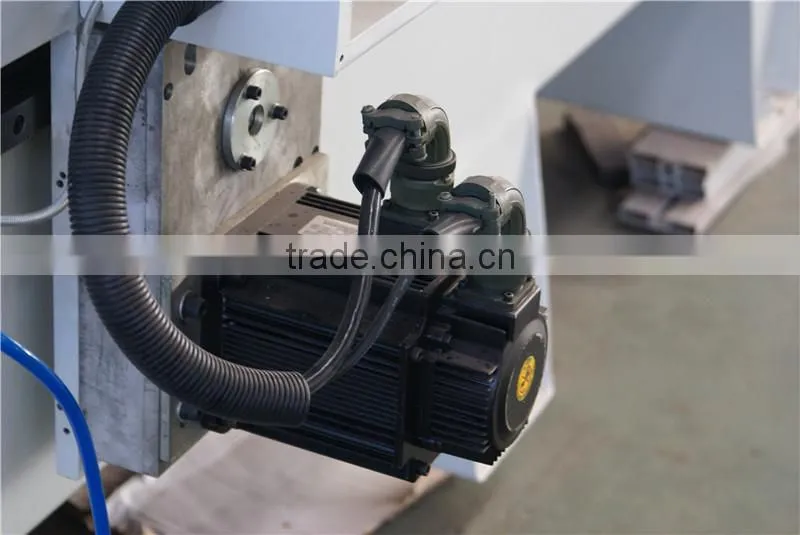

7. Adopting high-torque Japan-made YASKAWA servo motor and driver, greater accuracy and stability.
8. Auto oil-injection system makes the maintenance more convenient.

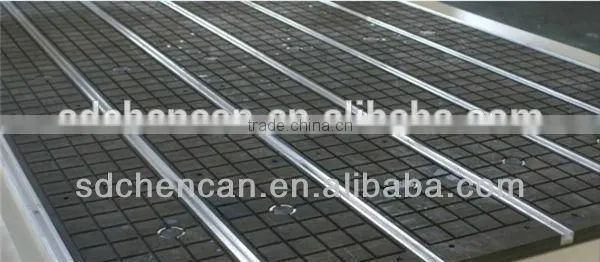

9. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour.
10. Has the function of re-carving after break point and power failure.
11. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3,Arecam) .Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and speed and precision of curve lines.
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, screen and so on. Advertisement: engraving and cutting various labels and number plate. Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Parameter:
Main Configuration with Parameter | |
XYZ effective working area |
1300*2500*300mm |
Spindle |
Italy HSD air cooling 9.0kw spindle |
4th rotary axis diameter |
200mm |
X.Y axis |
High precision Taiwan made rack and pinion transmission |
Z axis |
Taiwan rolling ball screw |
Working Mode |
Servo |
Driver & Motor |
Yaskawa driver and motor |
Machine voltage |
AC380V/50Hz, 3 phase |
Max.Idling speed |
40m/min |
Work-holding |
By clamp/ by sution(optional) |
Cooling mode |
Air cooling |
Spindle rotate speed |
0-18000r/min,variable speed |
Resolution |
0.01mm |
Diameter of Cutter |
φ3.175-φ12.7mm |
Other parts:
Samples:
Packaging:
Certificates:
For any questions, please do not hesitate to contact me:
SKYPE:saracnc85
