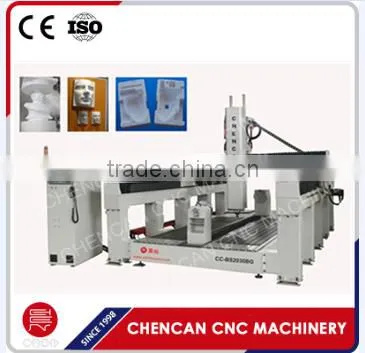

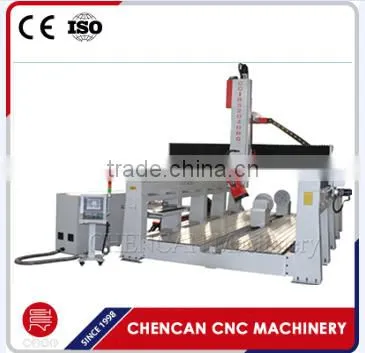

Jinan 4Axis Industrial Machinery EPS Molding Machine CNC Foam Cutting Machine with High Quality
Applicable materials:
Wood, EPS and non-metallic materials.
1. Mold industries: sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship model,wooden model aviation and other wooden mould. 2.Musical instrument industry: Can carve three dimension musical instrument, contour cutting.
Processing effect:
It can manufacture the following effects: engraving, cutting, milling ,drilling, relief, shadow, enchase and so on.

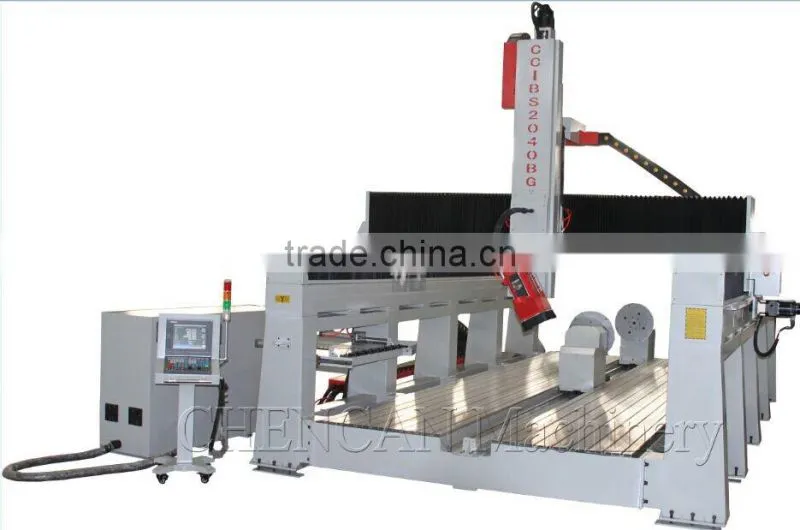

CNC Foam Cutting Machine Parameter
Model |
GY-BS2040BG |
Lathe body |
Thick and Hard Steel structure (sand blast & seasoning) |
X Y effective working area |
2000*4000*1000mm |
Precision Machining |
0.1mm/1000mm |
Max Traverse Speed |
30000mm/min |
Max processing speed |
20000mm/min |
Table size |
1400*2700mm |
Resolution |
0.01—0.03 mm |
Spindle power rate |
9.0kw HSD Auto tool changer |
Inverter |
Delta |
X,Y structure |
Rack and pinion transmission, Taiwan Hiwin Linear Bigger orbit |
Z structure |
Germany-made ball screw |
Motor of X , Y axis |
Yaskawa Servo Motor |
Motor of Z axis and 4th axis |
Servo |
Guide Rail |
Hiwin—30mm |
Small Electronic parts |
Schneider |
Spindle rotating speed |
0-24000r/min |
Standard Power |
AC380V-/220V-Three Phase (Optional) |
Max. idling speed |
30000mm/min |
Cooling mode |
Air-cooling |
Command |
G code,HPGL,U00,mmg,plt |
Dust-collect function |
Yes |
Clamping mode |
By Slots |
Operating system |
Taiwan Syntec |
Diameter of cutter |
φ3.175-φ20 |
Software |
Type3/Artcame/Castmate/Wentai etc. |

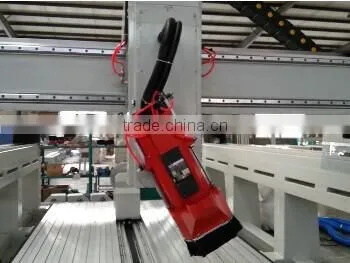

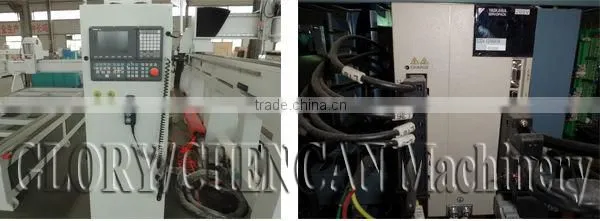

Main Spare Parts:
Samples:
Services & Guarantee:
1.Techbical supports and suggestions.
2.Professional instruction for the operation of the macine
3.12 month for the whole machine,provide a few extra consumable parts.
4.If necessary send technician to the scene to solve the problem asap.
5.24-hour technical support by email or calling.
Welcom to our country! Welcome to our factory!
For any questions, please contact:
