New 5Axis CNC Foam Mold Milling Machine 5Axis CNC Router 3D Engraving Machine CNC Machine for Sale
Main configurations :

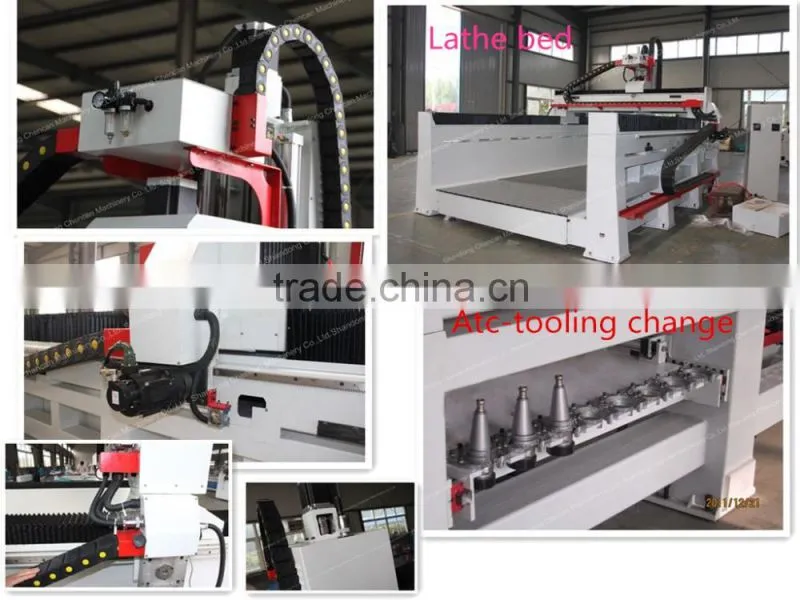

1. Whole machine is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress.
2. 4th axis, Rotary can work on the foam material with 600mm diameter
3.Adopt Germanymade ballscrew and imported linear orbit, Taiwan Hiwin Square Rail, high precision and long life time.
4. Adopting advanced taiwan syntec control system .with USB interface, operated with the handle, convenient operation.
Our engraver can completely work off-line and do not take any computer resources.
5. Servo Motor and HSD spindle rotates freely.
6. Delta Inverter
7.Well compatibility: CAD/DAM designingsoftware e.g. Type 3/Artcam/Castmate/Wentai etc.
8.four raw imported ball bearing, widening linear guide rail, self-lubricating sliding block. when engraving, equal force in all direction to ensure the accuracy and strength
9. Z axis can be heightened to 1000mm, suitable for large-scale material 3D working.
10.intelligent processing cross-border protection function can prevent mechanical impact caused by the improper design documents.
Technical parameters:
Lathe body |
Thick Square tube, steel structure |
Table facet |
Aluminum profile |
XYZ working area |
1500*3000*1000mm |
Resolution |
0.05mm |
Spindle Power |
HSD 9.0kw ATC air-cooling |
Spindle Rotating Speed |
0-18000r/min |
Working voltage |
380V/50HZ |
Max. Idling speed |
30000mm/min |
Max. cutting speed |
15000mm/min |
Working Mode |
SERVO |
Command |
Standard G code |
Operating system |
Syntec 11B control with handle |
Design software |
Powermill |
Clamping Mode |
By Clamp |
Diameter of cutter |
3.175-12.7mm |
Working mode |
SERVO |
Applicable materials:
Wood, EPS and non-metallic materials.

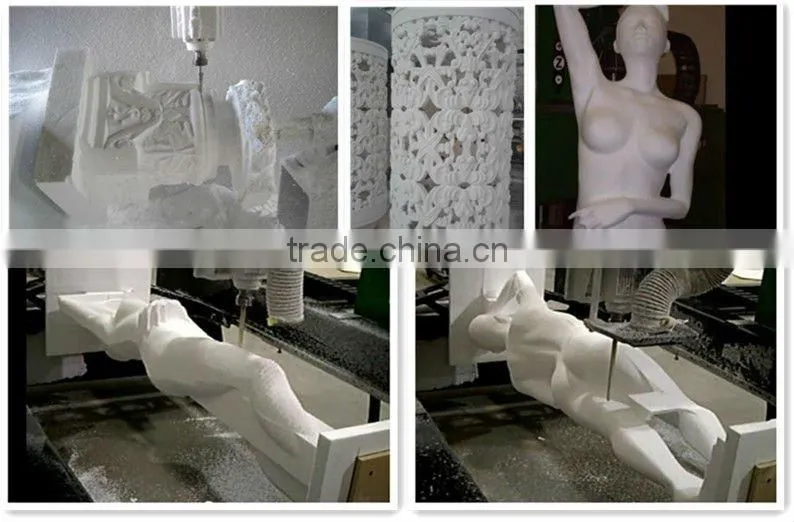

1. Mold industries: sculpture various large nonmetallic mold can be particularly suitable for any kind of Foam (EPS) mould,
wooden ship model,wooden model aviation and other wooden mould. 2.Musical instrument industry: Can carve three dimension musical instrument,contour cutting.
It can manufacture the following effects: engraving, cutting, milling ,drilling, relief, shadow, enchasement and so on.
Certificates:
SKYPE:saracnc85
