CNC Engraver Machine with 4 Axes

Specifications

Our cnc engraving machine is widely used for woodworking industry, furniuter industry, art industry and so on.

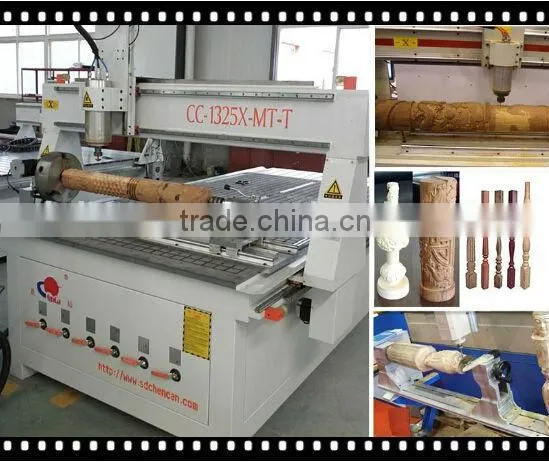

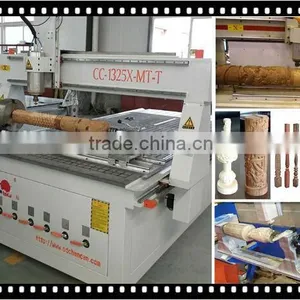

CNC Engraver Machine With 4 Axes CC-M1325AG

Standard Features:

1. Vacuum table with 6 vacuum zones, which can adsorb different size materials.

2. Whole machine is welded with seamless steel structure; the stability is excellent, not easy to be deformed.

3. Three axes adopt high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.

4. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.

5. Has the function of re-carving after break point and power failure.

6. Has the function of forecasting process time.

7. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.

8. Perfect oil-inject system makes maintenance much easier.

9. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.

10. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.

Applicable industries

This machine is used for processing furniture making and cylinder such as cylindrical furniture fittings, armrest of stair, cylindrical musical instrument and other cylindrical crafts.

1. Wood industry: processing of various furniture such as door, window, cabinet, craft wooden door, screen and so on.

2. Advertisement: engraving and cutting various labels and number plate.

3. Art craft: engraving characters of any languages and graphics on gift and souvenirs.

Applicable materials

PVC, density board, solid wood, red wood and other craft materials and etc.

Technical Parameter: CC-M1325AG

Description	Parameter
X,Y Working Area	1300*2500mm
Z Working Area	200mm
The 4th rotary axis	150mm
Table Size	1440*3040mm
Package size	1640*3240*1900mm
Resolution	0.01mm
Lathe Structure	Seamless welded steel structure
X,Y Structure	Rack and pinion transmission,
	Imported Hiwin Linear orbit
Z Structure	Ball screw
Max. Idling Speed	35m/min
Spindle Motor Power	3.0KW/3.5kw/4.5kw/6.0kw
Spindle Rotate Speed	0-24000r/min
Working Voltage	AC380V/50Hz
Working Mode	Stepper
Command	G code,HPGL,U00,mmg,plt
Operating System	DSP
Diameter of cutter	φ3.175-φ12.7mm
Cooling Mode	Water-cooling
Dust-collect Function	Yes
Work-holding	By vacuum system
Net Weight	1350KG
Gross Weight	1500KG
