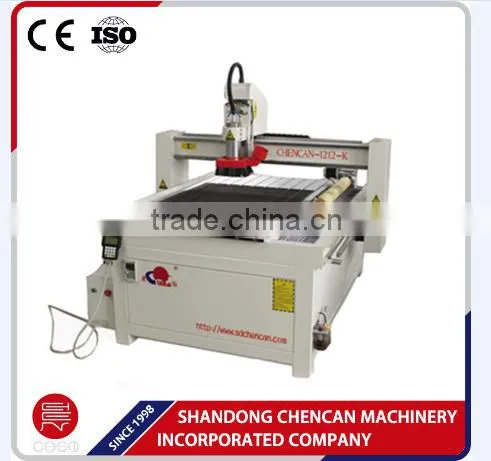

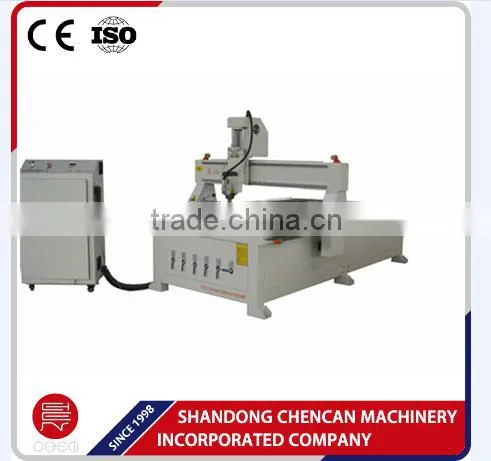

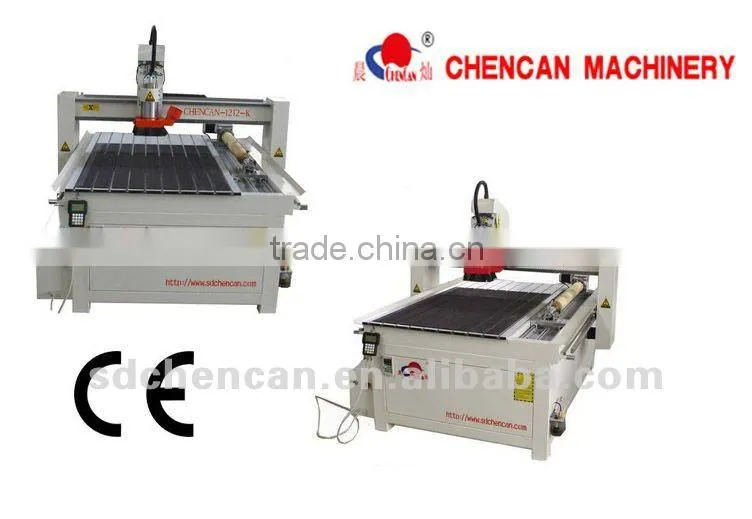

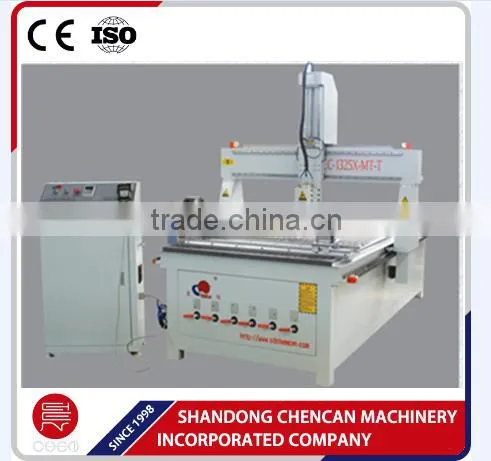

Chencan 1325 CNC Router with 4th rotary axis
Model: CC-M1325BG
Detailed Features:
1. Whole machine is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.
2.Cylinder working CNC Router adopts gantry movement, it can process any kinds of materials freely.
3.Three axes adopt imported Hiwin high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball-screw, with high precision and long life time.

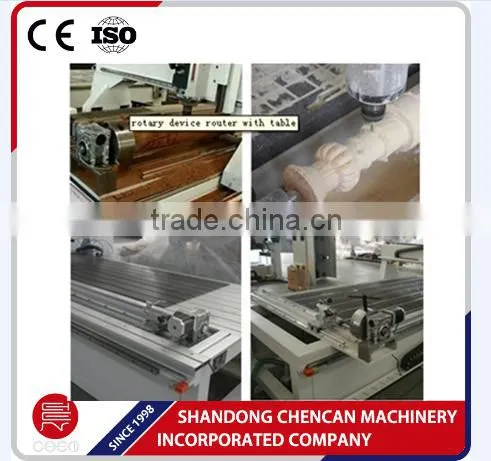

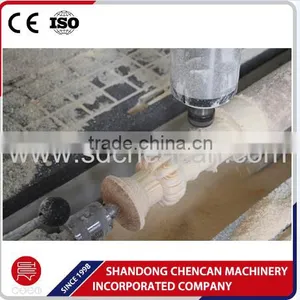

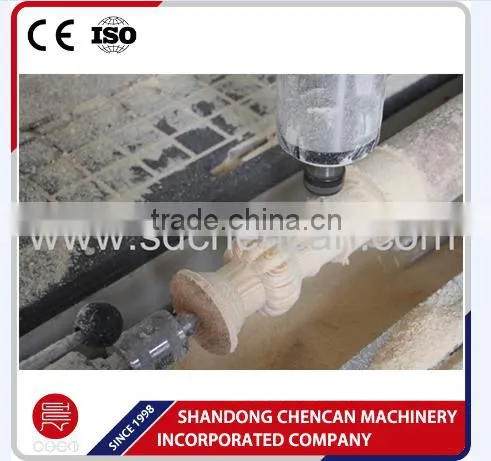

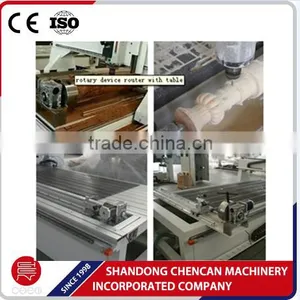

4. Has the 4th rotary axis which is used for engraving cylinder workpiece.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Cylinder working CNC Router adopts advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
9. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
10. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
CNC Routerwith 4th rotary axis Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
CNC Router with 4th rotary axisApplicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
CNC Router with 4th rotary axis Processing effect:
Our router may carve various kinds of shade vulture, relief, craft and gift.
CNC Router with 4th rotary axis Technical Specifications:
Description |
Parameter |
X,Y working area |
1300*2500mm |
Z working area |
300mm |
4th rotary axis diameter |
200mm |
Table size |
1440*3040mm |
Resolution |
0.01mm |
Lathe structure |
Seamless welded steel structure |
X,Y structure |
Rack and pinion transmission, Hiwin square guide rail |
Z structure |
Imported ball screw |
Max. idling speed |
35m/min |
Spindle motor power |
3.0 KW |
Spindle rotate speed |
0-18000r/min |
Working voltage |
AC380V/50Hz |
Working mode |
Stepper motor and driver |
Command |
G code,HPGL,U00,mmg,plt |
Operating system |
weihong handle |
Diameter of cutter |
φ3.175-φ12.7 |
Cooling mode |
Water-cooling |
Dust-collect function |
Yes |
Work-holding |
By clamp |

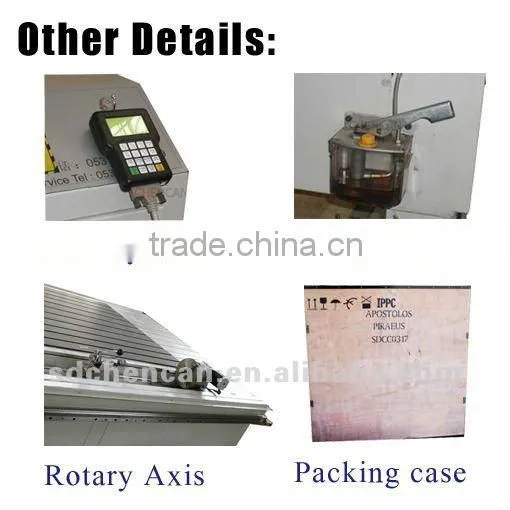

CNC Router with 4th rotary axis Details:
1. Payment: T/T,L/C; at least30% deposits, 70% balance before delivery
2. MOQ: 1 set
3. Warranty : 1 year
4. Package: wooden case/iron tray ,according to the size of the machine package.
duct time : 30workdays
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
Customers can get free technical training. Mainly training are as follow:
- software operation
- machine operation and maintenance
- Instruction of technical parameters, as well as their setting ranges
- solutions for common problems
Q3: Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant and software updating
Customer Service responding in 2 hours
Continuous support with software and hardware after free maintenance
Q4: Guarantee
The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775
Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
