Home > Products > Standard Model CNC Router > Chencan 4Axis 3D Cylinder CNC Carving/Engraving Machine/Machinery with High Efficiency
Chencan 4Axis 3D Cylinder CNC Carving/Engraving Machine/Machinery with High Efficiency
- 100 Set / Sets per Month
- Qingdao/Tianjin
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | CHENCAN | Model Number: | M1530K-4 | Voltage: | 380V/220V/50HZ/60HZ, 380V/220V/50HZ/60HZ |
Power(W): | 3.0KW | Dimension(L*W*H): | 1500*3000*300mm | Weight: | 2500kg, 2500kg |
Certification: | CE,ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

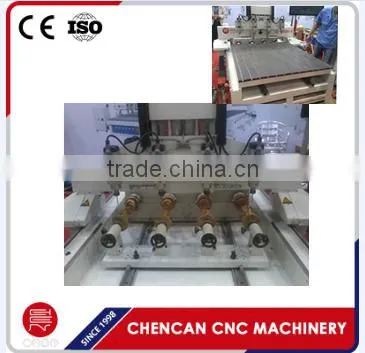

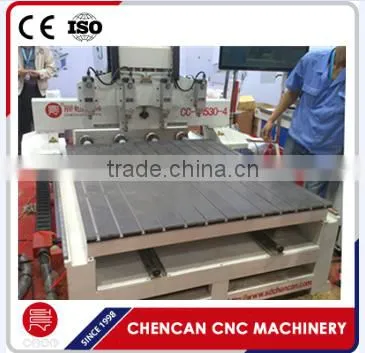

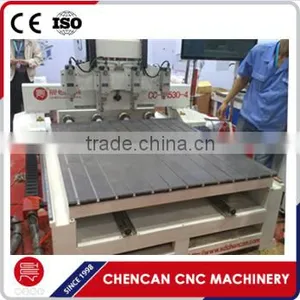

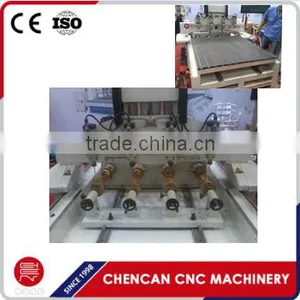

4Axis 3D Multi-spindle CNC Engraving/Milling Machine for Cylinder
Detailed Features:
1. CC-1530K-4 model machine is the 3D, 4 axises CNC Router Machine, with 4 Rotaries and 4 spindles, which can work at the same time or independently, and every one's max effective working area is 150mm(diameter) by 3000mm(length).
2. Two Functions, one is Plane Table for Plane material’s Cutting and Engraving. The second funtion is 8 Rotaries for do Cylinder / Round Material’s Engraving and Milling.
If you With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Adopting advanced 5sets high-torqueYASAKWA servo motor and 3D & 4Axis NC studio control system .
4. Germany-made ball-screwand TaiwanHiwin H30 square orbit, with high precision and longevity.
5. Advanced file pretreatment function.
6.High soft, famous brand electric cables, with high Abrasion, fold, high temperature , acid and alkali resistant .
7. We will provide you several kinds software for free, with English and Multilingual versions(CAD/CAM designing software e.g. Type 3/Artcam/etc.).
9. Has the function of re-carving after break point and power failure.
10.Perfect after sale service, timely reply to your any question, professional instructions for the machine, software and parts' using.
11. Any workstage is strictly processed according to Euro CE Quality Standard and ISO Quality Standard. Any set CNC Router will be done at least 72 hours careful testing and checking, from small part to the whole machine .
12. Our company has powerful strength in metal Machining. In order to make sure every detail's high quality level,most of the machine's metal parts are made by our own Machining Center imported from American .
Technical Specifications
Model | CC-1530K-4 | |
Description | Parameter | Optional parameter |
X,Y Working Area | 3000*1500mm | |
Z Working Area | 300mm | |
4th rotary axis max diameter | 150mm | 125mm, 200mm,225mm |
Flat Table Size | 3140*1640mm | |
Resolution | 0.03mm | |
Lathe Structure | Seamless welded steel structure | |
X,Y Structure | Rack and pinion, gear drive, Big Size Taiwan Hiwin square guide rails | |
Z Structure | Germany-made rolling ball screw, Big Size Taiwan Hiwin square guide rails | |
Max. Idling Speed | 40m/min | |
Spindle | 3.5kw air Cooling Spindle | 4.5kw |
Spindle Speed | 0-24000r/min, variable speed | |
Working Voltage | AC380V/50Hz | 220V |
Japan Yaskawa Servo | ||
Command | G code (HPGL, U00, mmg, plt) | |
Operating System | Original Version Nc Studio control system | |
Diameter of Cutter | φ3.175-φ12.7 | |
Dust-collect Function | Yes | No |
Work Holding | Clamps, Chucks | |
Net Weight | 2500KG |
