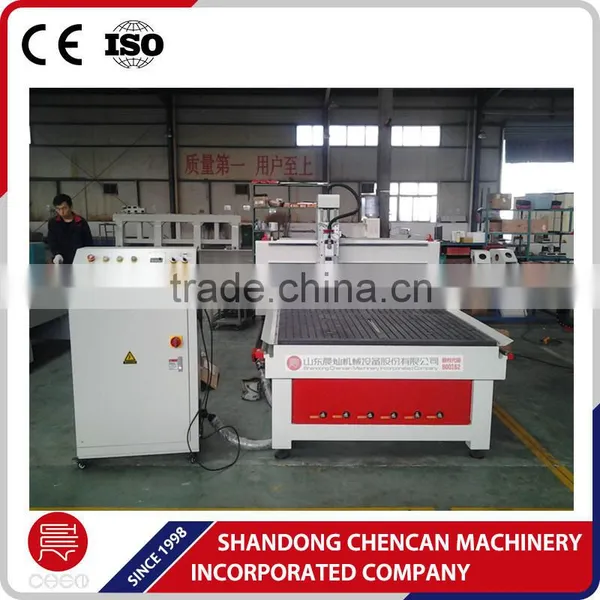

CNC Stepper motor woodworking machine1325
CC-M1325A
Standard Feature

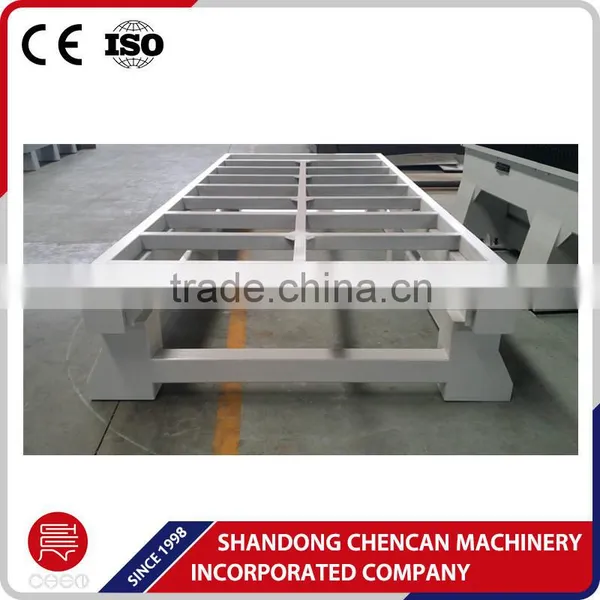

1. Our wood cnc routers are welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.
2.. Adopt imported ballscrew and Taiwan Hiwin Square Rail, high precision and long life time.(Adopt rack and pinion transmission, fast working, high efficiency and low cost. )
3. Be compatible with several CAD/DAM designing software, e.g. Type 3/Artcam/Castmate/Wentai etc.
4. Has the function of re-carving after break point and power failure.
5. Adopting advanced DSP system with USB interface, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
6. Perfect lubricating system makes maintenance much easier.

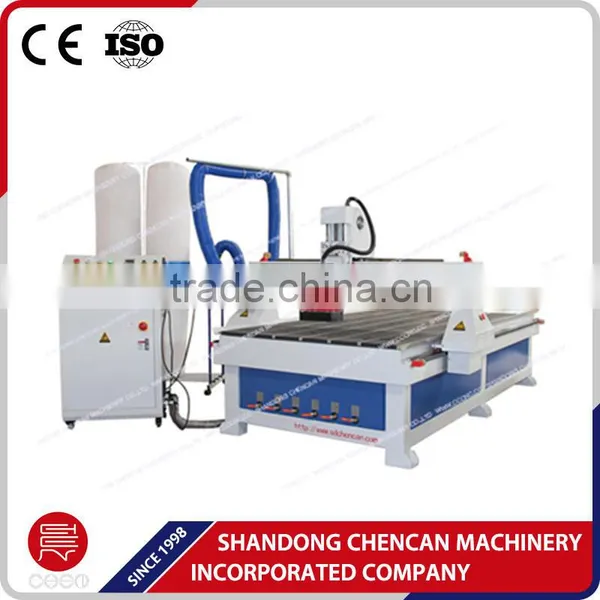

7. Wood CNC Router has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
8. Advanced design of the machine make sure strong cutting and guarantee the engraving precision.
Applications:
a.Wood processing : processing of various furniture such as door ,window, cabinet,craft wood door ,screen and so on .
b.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
c.Art craft: engraving characters of any languagess and graphics on gifts and souvenirs.
d.Decoration: acrylic, density board, organic glass, soft metals like aluminum, etc.
Applicabe materials:
Wood, aluminum board, plastic, density board, wave board, pvc, acrylic, crystal glass, light marble and other nonmetal materials and light metal metarials.
Processing effect:

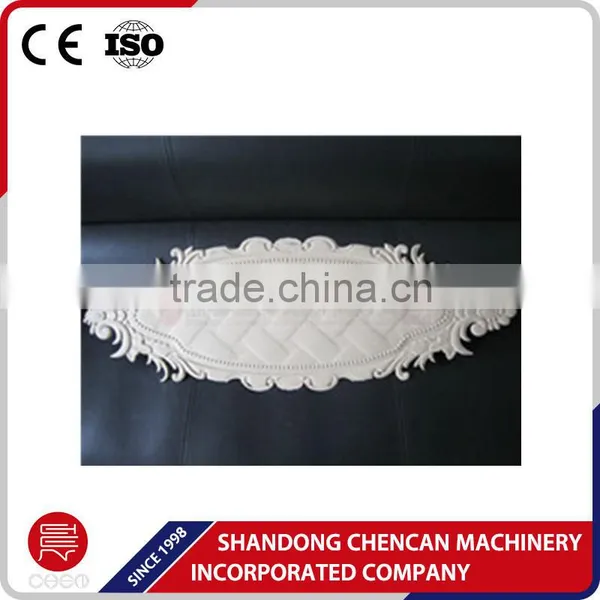

Our cnc router is widely used for cutting, milling, drilling, engraving , carving various shade vulture, relief,etc.
Technical Parameter
Model |
CC-M1325A |
OPTIONLA |
Lathe body |
Steel structure |
|
X Y Z Working area |
1300*2500*200mm |
1500*3000*200mm/2000*3000*200MM |
Table size |
1440*3040mm |
|
Resolution |
0.01mm |
|
Spindle power |
3.5kw |
2.2kw-6kw |
Spindle rotating speed |
0-18000r/min |
|
Working voltage |
220-380V/50HZ |
|
Max. idling speed |
35m/min |
|
Max. feeding height |
200mm |
|
Cooling mode |
Air cooled |
water cooled |
Command |
G code |
G code |
Dust-collect function |
yes |
no |
Clamping mode |
By suction |
By clamp |
Operating system |
DSP handle |
NC Studio |
Diameter of cutter |
φ3.175-φ12.7 |
|
Working mode |
Stepper/ Servo |
Servo |
The high-procision spare parts:
The Manufacturing Process:
The company detail :
The Certificate:
The key concerns for Customer
a.How to choice a better CNC Router ?
1. Choice a suitable working area
Small size such as 600*900mm is mainly used for duoble-color board and acrylic .
The large size of the machine such as:1200*1200,1300*2500,1500*300,2400*500,it is mainly used for wood and pvc,the large size machine is suitable for engraving and cutting for large materials.
2. Choice a suitable spindle motor.
Spindle motor is one for important components for cnc router,the performance of cnc router put an important role in cnc router.
b.When the machine can’t work well,What should I do?
1.Our engineer is online for 24-hours, they can check the problems and then give you a sulutions in two hours.
2.Our machine are with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent to you sooner .
3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
The canton fair:
more information pls contact
whatsapp no:008613562499855
