single head cnc wood mdf cutting machine with vacuum system

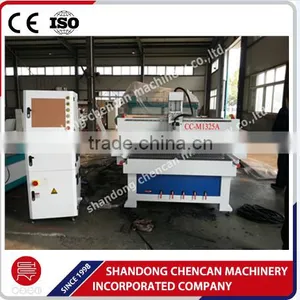

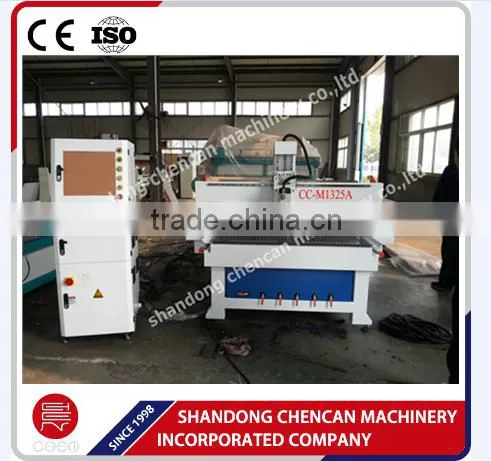

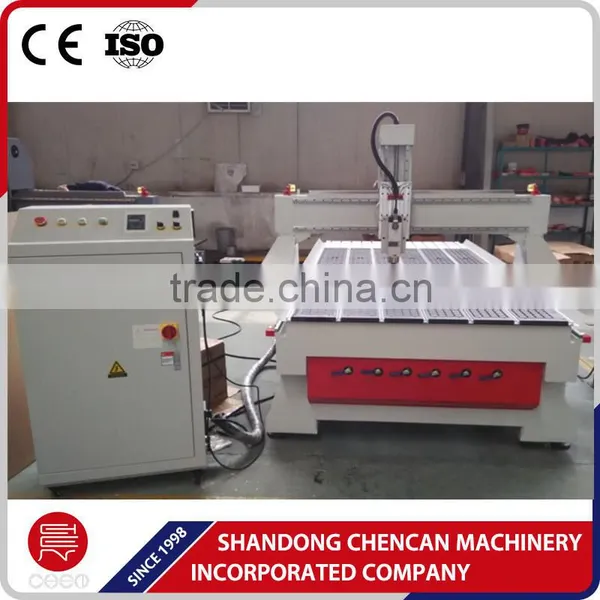

Model: CC-M1325A
Features:
1. Whole mechanical engraving machine is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.
2. The cnc router adopts gantry movement. It can process any kinds of materials freely.

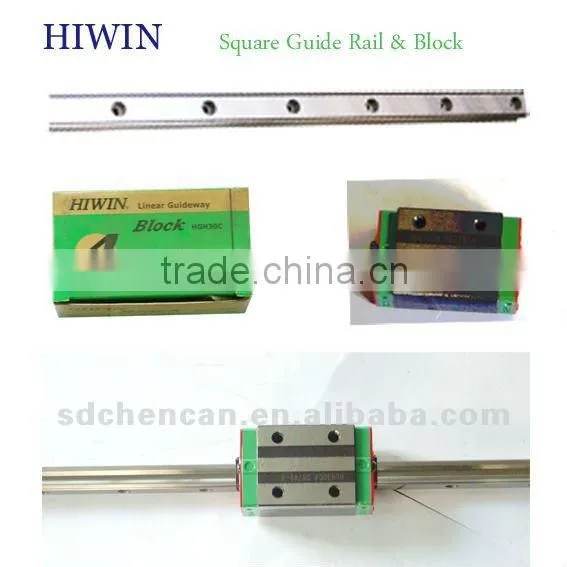

3. Three axes adopt Hiwin high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball- screw, high precision and long life time.
4. Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. Has the function of re-carving after break point and power failure.
6. Has the function of forecasting process time.
7. Adopting advanced DSP system with USB interface, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
8. Perfect lubricating system makes maintenance much easier.
9. The cnc router has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
10. Advanced design of the machine make sure strong cutting and guarantee the engraving precision.
11. Vacuum table with 6 vacuum zones, which can adsorb different size materials. It is also convenient for the user to fix the materials by clamp.
12. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
CNC Router Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
CNC Router Applicable materials:
Wood, aluminium board, plastic, density board, wave board, glass, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
It can manufacture the following effects: relief, shadow, enchasement and so on.
Engraving Samples:
CNC Router Technical Parameter:
Description |
Parameter |
X,Y Working Area |
1300*2500mm |
Z Working Area |
200mm |
Table Size |
1440*3040mm |
Resolution |
0.01mm |
Lathe Structure |
Seamless welded steel structure |
X,Y Structure |
Rack and pinion transmission, Hiwin square guide rail |
Z Structure |
Germany-made rolling ball screw,Hiwin square guide rail |
Max. Idling Speed |
35m/min |
Spindle |
3.0 KW |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Working Mode |
Stepper motor |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
DSP with USB interface |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Water-cooling |
Dust-collect Function |
Yes |
Work-holding |
By suction or clamp |
Net Weight |
1300KG |
Software |
Type 3, ArtCam, Wentai |
strong plywood pacakge for export;
we transport the cnc router machine to you by sea or other way we negociate .
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
Customers can get free technical training. Mainly training are as follow:
- software operation
- machine operation and maintenance
- Instruction of technical parameters, as well as their setting ranges
- solutions for common problems
Q3: Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant and software updating
Customer Service responding in 2 hours
Continuous support with software and hardware after free maintenance
Q4: Guarantee
The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
1. Payment: T/T,L/C; at least30% deposits, 70% balance before delivery
2. MOQ: 1 set
3. Warranty : 1 year
4. Package: wooden case/iron tray ,according to the size of the machine package.
duct time :10workdays
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775
Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
