Discount 3D Wood CNC Router for Wood Door CC-M1325AC3
- 110 Set / Sets per Month
- Qingao / Tianjin
- Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | Chencan 3d wood cnc router | Model Number: | CC-M1325AC3 | Voltage: | 380V/220V 50/60Hz |
Power(W): | 3.0/3.5/4.5/6Kw | Dimension(L*W*H): | 3050*2000*1800 | Weight: | 1800KGS |
Certification: | CE, ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

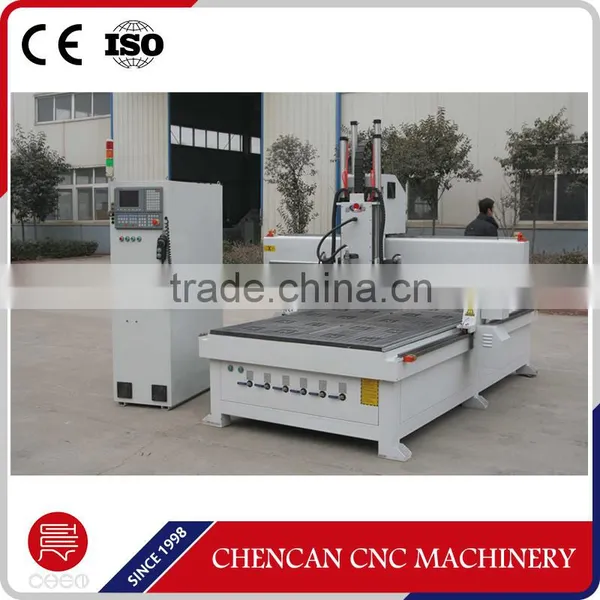

Discount 3D Wood CNC Router for Wood Door CC-M1325AC3
Standard Features for linear type atc cnc router:
1. This machine has three spindles, which can mount 3 different tools, can achieve 2-3 tool change automatically.
2. Whole machine is welded with seamless steel structure and adopt steel gantry; the stability is excellent, not easy to be deformed.
3. Vacuum block to protect the working table when cutting materials.
4. Three axes adopt Taiwan HIWIN high precision linear orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
7. Protection device to protect the wire and one emergency switch on each later plate (3 emergency switch totals):
8. Adopting Taiwan-made Syntec control system, separate keyboard control system and color LCD screen makes the machines have perfect performance.
9. Adopting three Changsheng brand 3.0Kw air-cooling spindle make the machine have high precision, long life-time and steady working capacity.
10. Perfect oil-inject system makes maintenance much easier.
11. 5.5Kw water cooling vacuum pump.
12. Has duct-collect function with 3.0Kw dust-collector. It will clean up the carving residuum and make the operations tidier and more convenient.
13. Closed tank chain:
14. Fumigation-free wooden case.
Applicable industries for linear type atc cnc router
Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.
Applicable materials for linear type atc cnc router
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Processing effect for linear type atc cnc router
Our router is widely used for engraving, cutting various shade vulture, relief and ect.
Technical Parameter for linear type atc cnc router
Model | CC-M1325AC3 |
X,Y Working Area | 1300*2500*350mm |
XYZ traveling positioning Accuracy | +/- 0.005/300mm |
XYZ repositioning positioning | +/-0.005mm |
Table surface | PVC table |
Frame | Welded structure |
Max. Idling Speed | 35m/min |
Spindle Motor Power | 3.5KW air cooling spindle (three pieces) |
Spindle speed | 0-18000RPM |
ATC function | Yes, can change three different tools automatically |
Working Mode | Big Stepper motors |
Drives | Big YAKO 2811 drives |
Operating System | Taiwan Syntec control system |
Collect | ER 25 |
Work-holding | By Suction |
Vacuum system | Yes, with 5.5Kw water vacuum pump |
Lathe Structure | Seamless welded steel structure |
X,Y Structure | Rack and pinion transmission, |
Taiwan HIWIN square rail | |
Z Structure | High-precision Rolling Ball screw |
Software | Type3/ Art cam |
Working Voltage | AC380V/50Hz |
Command | G code,HPGL,U00,mmg,plt |
Diameter of cutter | φ3.175-φ12.7mm |
Package | Wooden case |

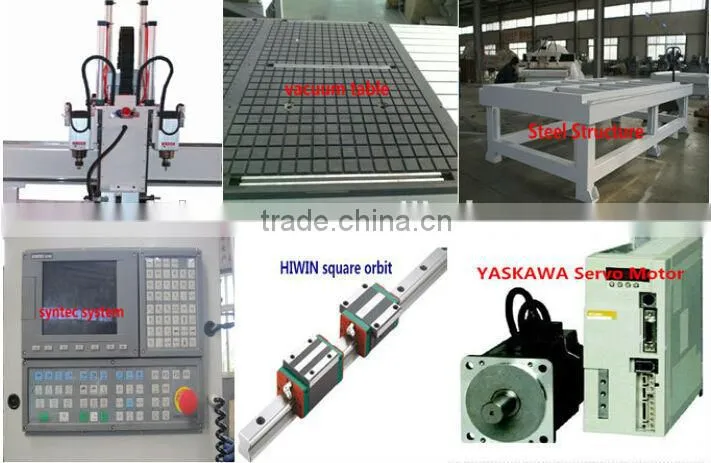

The high-procision spare parts:
The Manufacturing Process:
The company detail :
The Certificate:
The key concerns for Customer
a.How to choice a better CNC Router ?
1. Choice a suitable working area
Small size such as 600*900mm is mainly used for duoble-color board and acrylic .
The large size of the machine such as:1200*1200,1300*2500,1500*300,2400*500,it is mainly used for wood and pvc,the large size machine is suitable for engraving and cutting for large materials.
2. Choice a suitable spindle motor.
Spindle motor is one for important components for cnc router,the performance of cnc router put an important role in cnc router.
b.When the machine can’t work well,What should I do?
1.Our engineer is online for 24-hours, they can check the problems and then give you a sulutions in two hours.
2.Our machine are with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent to you sooner .
3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.

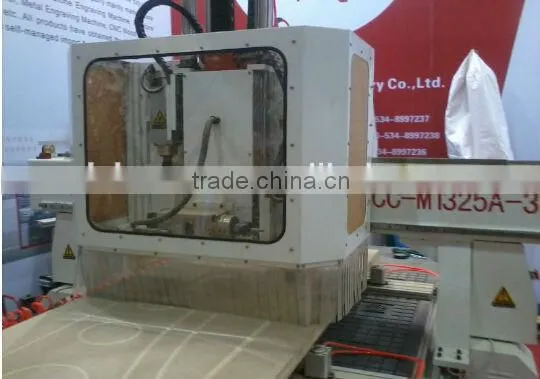

The canton fair:
