Help CenterGuilin Huashan Diamond Wire Saw for Reinforced Concrete Cutting
Related Products
-
High Quality Diamond Wire Saw Machine for Wall Cutting With Power 25kwUS$ 10,000 - 15,000MOQ: 1 Set -
High Quality Diamond Wire Saw Machine for Wall Cutting With Power 30kwUS$ 10,000 - 15,000MOQ: 1 Set
-
High Quality Diamond Wire Saw Machine for Steel Cutting With Power 30kwUS$ 10,000 - 15,000MOQ: 1 Set
-
Professional Diamond Wire Saw Machine for Steel Cutting With Power 30kwUS$ 10,000 - 15,000MOQ: 1 Set
-
Professional Hydraulic Diamond Wire Saw Machine for Reinforced Concrete CuttingUS$ 10,000 - 15,000MOQ: 1 Set
Concrete Wire Saw machine is mainly used to cut concrete,reinforced concrete,steels,building,bridge and sunkenship,steel cable,wall cutting etc.
Equipment Model |
XL125 |
XL130 |

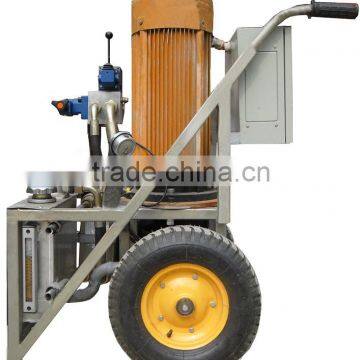

Hydraulic Power Station Weight |
175KGS |
220KGS |
Out put power of hydraulic Power Station |
25KW |
30KW |
Packing Size of Hydraulic Power Station |
L850mm,W480mm, H105mm |
L850mm,W480mm, H105mm |
Power Supply |
380V.50HZ,44A |
380V.50HZ,44A |
Rated Working Pressure |
16MP |
16MP |
Working oil temperature |
20℃-55℃ |
20℃-55℃ |
Working place temperature |
-5℃ to -40℃ |
-5℃ to -40℃ |
The wheel stand weight of wire saw machine |
60KGS |
60KGS |
Packing size of wheel stand |
L125mm,W75mm,H50mm |
L125mm,W75mm, H50mm |
Tight rope length for one time |
5m |
5m |
Conventional deposite rope length |
9m |
9m |
Cutting efficency |
0.5 m2 -3 m2 |
0.5 m2 -4 m2 |
Length of rope can be driven by machine |
50m |
50m |
Packing by wooden carton or any special requirement can be available.
Delivery time:within 10 days after confirm .
We can offer best after sale service for customers.
Guilin Huashan Diamond Wire Co. Ltd is specialized in producing Diamond Wire Saw product.The technologists have more than 20 years of experiences in diamond tools industry and advanced technology, formulation & process, and strict quality control system.The quality of Diamond Wire Saw rank a high level and sell very well in the world. it sells very well in Italy, Australia, Canada, Brazil, Greece, Middle East, South-East Asia, etc…
Brand is based on quality. Being honest and credit, pursuing excellence, customer first, collaborative development is the motto of our company.
We have confident that we have ability to provide our customers with quality product and excellent service.
