Help CenterWire Saw Machine for Reinforced Concrete Cutting
Related Products
-
Reinforced Concrete Wire Saw Cutting Machine to Cut Concrete and Steel CableUS$ 13,000 - 15,000MOQ: 1 Set -
High Quality Concrete Wire Saw Machine for Reinforced Concrete CuttingUS$ 13,000 - 15,000MOQ: 1 Set
-
Concrete and Wall Cutting Wire Saw MachineUS$ 13,000 - 15,000MOQ: 1 Set
-
Diamond Wire Saw Machine for Reinforced Concrete and Wall CuttingUS$ 10,000 - 15,000MOQ: 1 Set
-
Wire Saw Machine for Steel and Iron CuttingUS$ 10,000 - 15,000MOQ: 1 Set
Concrete Wire Saw machine is mainly used to cut concrete,reinforced concrete,steels,building,bridge and sunkenship,steel cable,wall cutting etc.

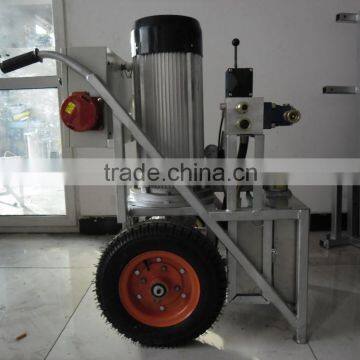

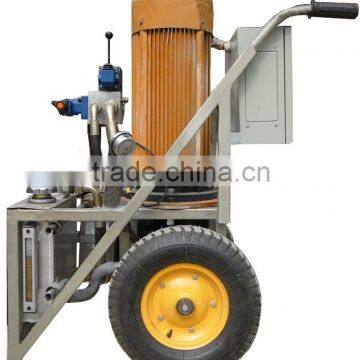

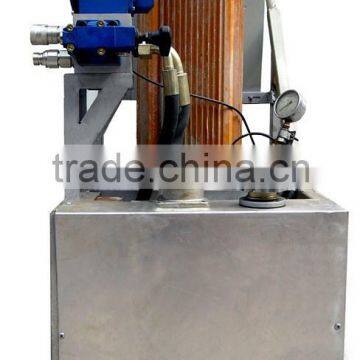

Hydraulic power station system parameters
Equipment Model |
XL125 |
XL130 |
Hydraulic Power Station Weight |
175KGS |
220KGS |
Out put power of hydraulic Power Station |
25KW |
30KW |
Packing Size of Hydraulic Power Station |
L850mm,W480mm, H105mm |
L850mm,W480mm, H105mm |
Power Supply |
380V.50HZ,44A |
380V.50HZ,44A |
Rated Working Pressure |
16MP |
16MP |
Working oil temperature |
20℃-55℃ |
20℃-55℃ |
Working place temperature |
-5℃ to -40℃ |
-5℃ to -40℃ |

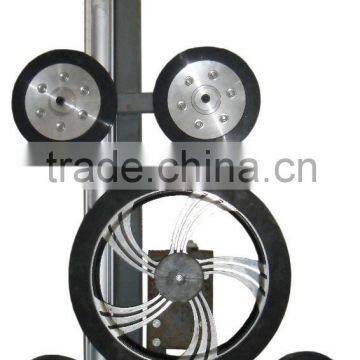

The wheel stand weight of wire saw machine |
60KGS |
60KGS |
Packing size of wheel stand |
L125mm,W75mm, H50mm |
L125mm,W75mm, H50mm |
Tight rope length for one time |
5m |
5m |
Conventional deposite rope length |
9m |
9m |
Cutting efficency |
0.5 m2-3 m2 |
0.5 m2-4m2 |
Length of rope can be driven by machine |
50m |
50m |
Send Inquiry to This Supplier
