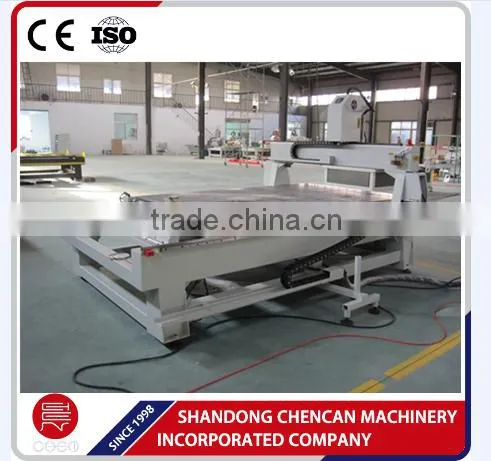

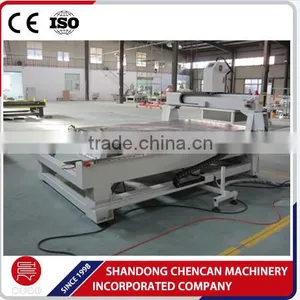

Chencan 1325 cylinder woodworking CNC Router with 4 axis rotary axis
Model: CC-M1325BG
Detailed Features:
1. Whole machine is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.
2.Cylinder working CNC Router adopts gantry movement, it can process any kinds of materials freely.
3.Three axes adopt imported Hiwin high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball-screw, with high precision and long life time.
4. Has the 4th rotary which is used for engraving cylinder workpiece.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Cylinder working CNC Router adopts advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
9. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
10. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
Cylinder working CNC Router Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Cylinder working CNC Router Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Cylinder working CNC Router Processing effect:
Our router may carve various kinds of shade vulture, relief, craft and gift.
Cylinder working CNC Router Technical Specifications:
Description |
Parameter |
X,Y working area |
1300*2500mm |
Z working area |
300mm |
4th rotary axis diameter |
200mm |
Table size |
1440*3040mm |
Resolution |
0.01mm |
Lathe structure |
Seamless welded steel structure |
X,Y structure |
Rack and pinion transmission, Hiwin square guide rail |
Z structure |
Imported ball screw |
Max. idling speed |
35m/min |
Spindle motor power |
3.0 KW |
Spindle rotate speed |
0-24000r/min |
Working voltage |
AC380V/50Hz |
Working mode |
Stepper |
Command |
G code,HPGL,U00,mmg,plt |
Operating system |
DSP handle |
Diameter of cutter |
φ3.175-φ12.7 |
Cooling mode |
Water-cooling |
Dust-collect function |
Yes |
Work-holding |
By clamp |

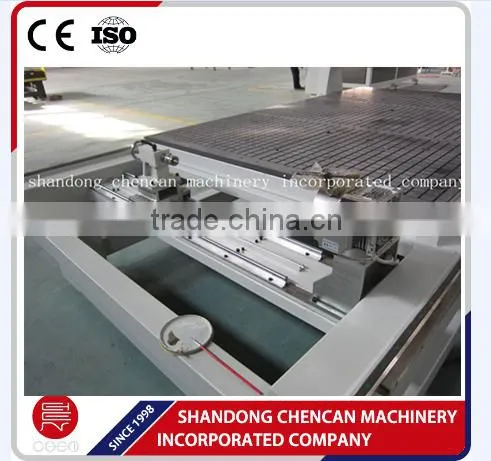

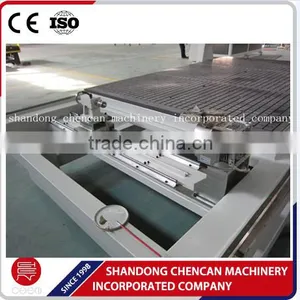

Cylinder working CNC Router Details:
