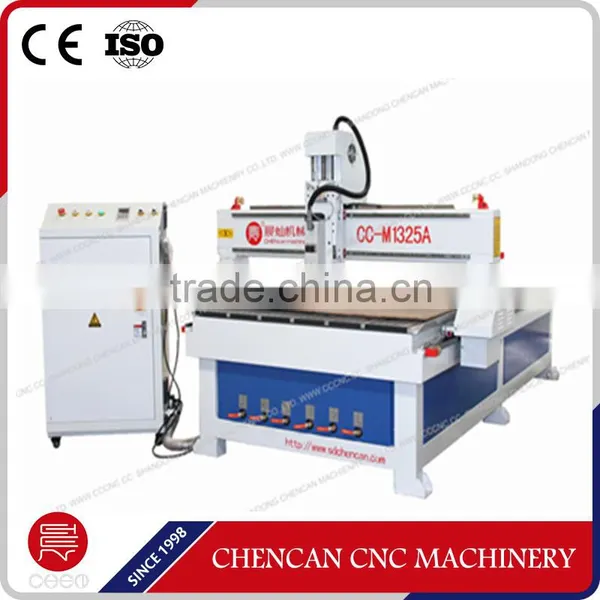

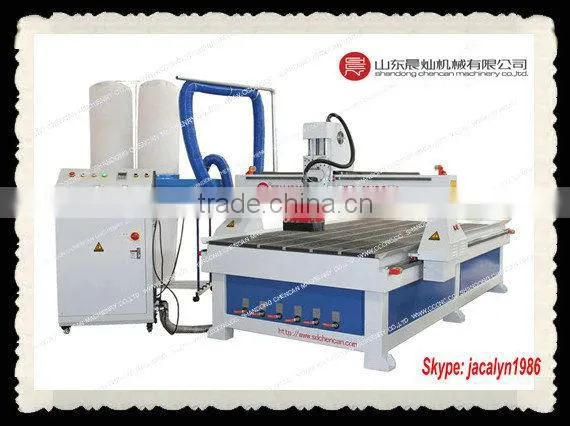

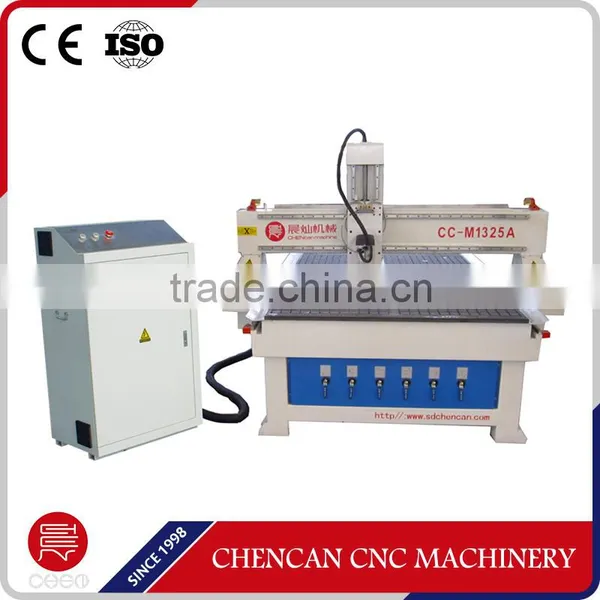

Economical CC-M1325A High Efficiency Door Furniture Manufacturer New Model KT Board Woodworking
Application of Wood Cutting Machine
The machine is strong function,easy to use,durable performance.Applicable to process three-dimension wave board,computer table and chair,screen stencil,art windows,wood furniture,acrylic,PVC board,sign plate and plastic molding in high efficiency,and also can process many metal and non-metal materials such as iron,copper,aluminum,plastic plate,wood etc.
Features of Wood Cutting Machine
♦With hard steel structure, fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration.
♦With the Vacuum holding way and dust collector, the machine is qualified for mass-producing of furniture.
♦We use the best quality parts for the CNC routers.
♦The machine’s body is strong, rigid, high precision, reliable and durable.
♦Imported high precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
♦ Wellknown domestic brands of water cooling brushless spindle, low noise, strong cutting ability, to ensure the long time working.
♦High-performance driven motor to ensure that the machine high speed and accuracy.
♦Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
Samples
Parameter
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x200mm |
2 |
Table Size |
1640×3050mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot working table (Option: T-slot Table ) |
6 |
Frame |
Welded Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 3.2Kw |
10 |
Max. Rapid Travel Rate |
33000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
3.5kw water cooling spindle |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
stepper |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
16 |
Command Language |
G Code |
17 |
Operating System |
DSP System (Options: Ncstudio/Mach3 PC Software) |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility |
Type3/Arcam Software |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3100X2100X1900mm |
26 |
N.W. |
1350KG |
27 |
G.W. |
1500KG |
28 |
Optional Parts |
Water Cooling Spindle |
Syntec Control System | ||
Dust Collector | ||
Rotary System | ||
Mist-cooling System | ||
Yaskawa DELTA Servo Motors |

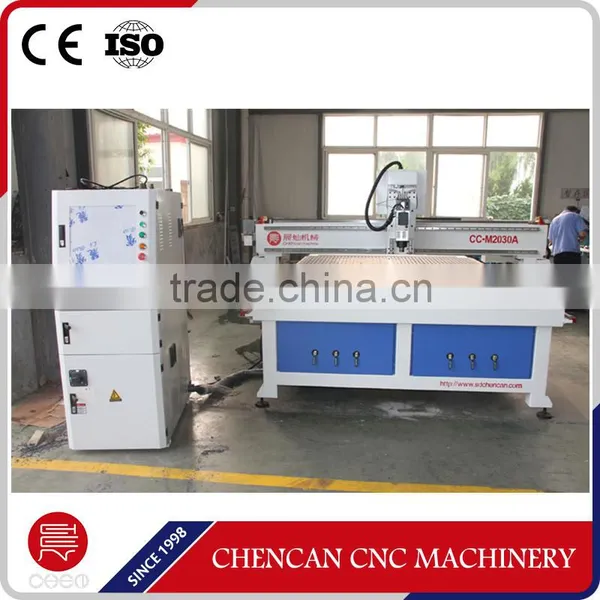

Our factory
Certification:
After sales
1.One year for the machine
2. Replacing all parts for free during the warranty period (no human damage)
3. If necessary, we will provide professional service to the door
4. 24-hour service on-phone. NO:86-534-8997237
