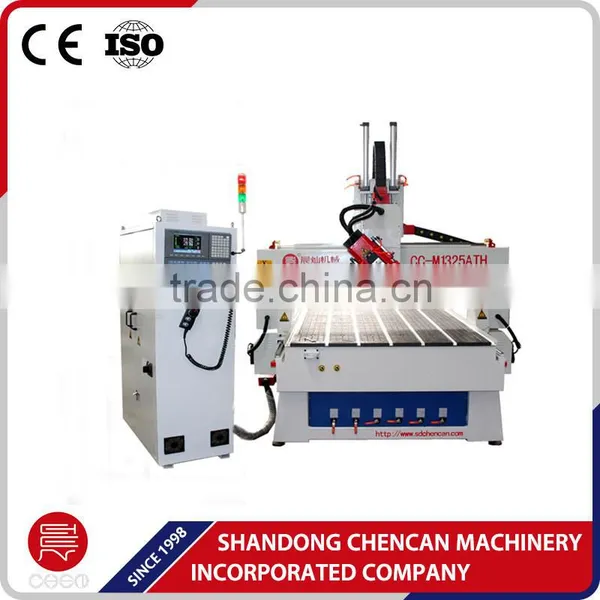

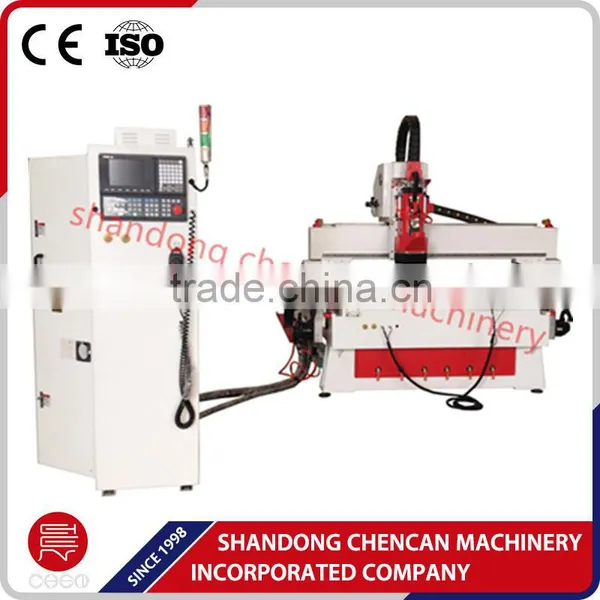

cnc cutter
Features:
1.Lathe bed welded with thick channel steels and square tubes; Processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress; Ensure excellent stability, not easy to be deformed.
2.The machine adopts gantry movement , it can process any kinds of materials freely.
3.X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost.
4.Z axis adopts imported ballscrew of Germany and imported linear orbit, stable working , high precision and long life time.
5.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Wentai etc.
6.Has the function of recarving after break point and power failure.
7.Has the function of forecasting process time.
8.DSP system with USB interface, convenient operation. Off-line working, no need put a computer there.

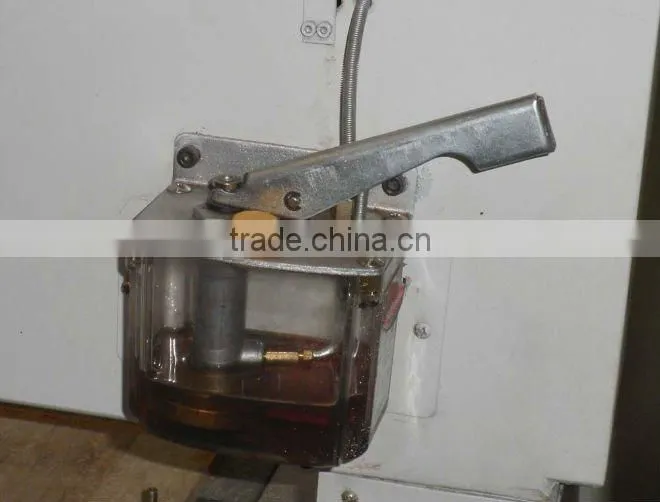

9.Perfect oil-inject system makes maintenance much easier .
10.Has duct collecting function. It will clean up the carving residuum and make the operations tidier and more convenient.
11.Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
Technical Specifications
Description |
Parameter |
Optional parameter |
X,Y working area |
1300*2500mm |
|
Z working area |
200mm |
|
Table size |
1440*3040mm |
|
Resolution |
0.01mm |
|
Lathe structure |
Seamless welded steel structure |
|
X,Y structure |
Rack and pinion transmission, TAIWAN PMI square guide rail |
|
Z structure |
Imported ball screw TAIWAN PMI square guide rail |
|
Max. idling speed |
25m/min |
|
Spindle motor power |
3.0kw |
|
Spindle rotate speed |
0-24000r/min |
|
Working voltage |
AC380V/50Hz |
|
Working mode |
Stepper |
|
Command |
G code,HPGL,U00,mmg,plt |
|
Operating system |
DSP |
|
Diameter of cutter |
φ3.175-φ12.7mm |
|
Cooling mode |
Water-cooling |
|
Dust collector |
Yes |
|
Work-holding |
By suction |
more information pls contact
whatsapp no:008613662499855
