Specifications
4 axis cnc machine with 8 rotaryServo motor
NC Studio control system
2.2kw air-cooling spindle
with 4th rotary 150mm

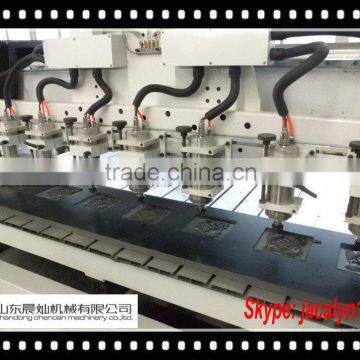

Hot Sales 4 Axis CNC Machine With 8 Rotary
CC-MS2030K8
Detailed Features:
1. 4 axis cnc machine, with 8 Rotaries and 8 spindles, which can work at the same time or independently, and every one's max effective working area is 150mm(diameter) by 1000mm(length).
2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
4.Has the 4throtary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure.
7. Adopting advanced YASAKWA servo motor and NC studio control system .
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Applications:
a.Wood processing : processing of various furniture such as door ,window, cabinet,craft wood door ,screen and so on .
b.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
c.Art craft: engraving characters of any languagess and graphics on gifts and souvenirs.
d.Decoration: acrylic, density board, organic glass, soft metals like aluminum, etc.
Technical Specifications
Description |
Parameter |
Optional parameter |
4th rotary axis max diameter |
150mm |
125mm, 200mm |
Machine dimension |
3000mm*2000*2000mm |
|
Resolution |
0.01mm |
|
Lathe structure |
Seamless welded steel structure |
|
X,Y structure |
Rack and pinion transmission, Hiwin square guide rail |
|
Z structure |
Imported ball screw |
|
Max. idling speed |
35m/min |
|
Spindle motor power |
2.2 KW |
1.5kw |
Spindle rotate speed |
0-24000r/min |
|
Working voltage |
AC380V/50Hz |
220v |
Working mode |
Yasakawa servo motor |
|
the control system |
NC studio control system . |
|
Cooling mode |
Air-cooling |
water cooling |
Dust-collect function |
Yes |
|
Work-holding |
By clamp |
The main features for 3D Scanner:
1.Nonetouch scanner way, more stable ,wide application ,such as complex shape objects, soft materials or mould objects.
2.very fast speed .
3. German standard optical scan .
4.very clear to check every scan detials.
5.can scan flat panel, 3D objects, relief,round or cube objects.
The standard Accessories:
The working live-action:
The competitive advantage
1. High soft, famous brand electric cables.
2. Original Imported spare parts .
3. We will provide you several kinds software for free, with English and Multilingual versions.
4. Perfect after sale service.
5. Timely reply to your any question
6. professional instructions for the machine, software and parts' using.
7. Any workstage is strictly processed according to Euro CE Quality Standard and ISO Quality Standard .
8. Our company has powerful strength in metal Machining.
The workshop detai:
The CE and ISO certificate:
