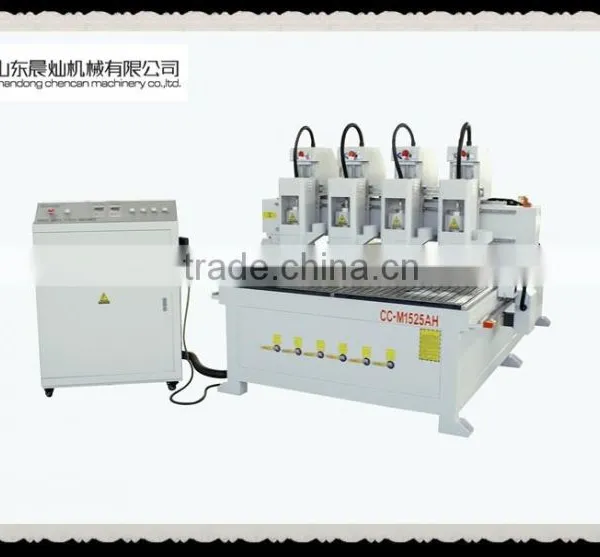

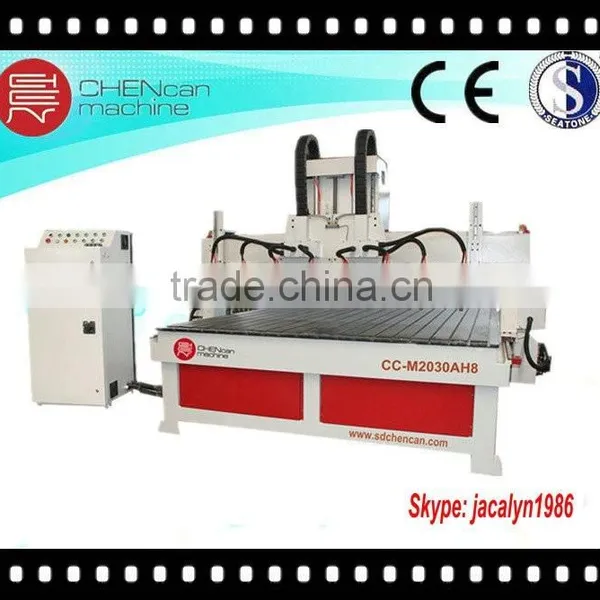

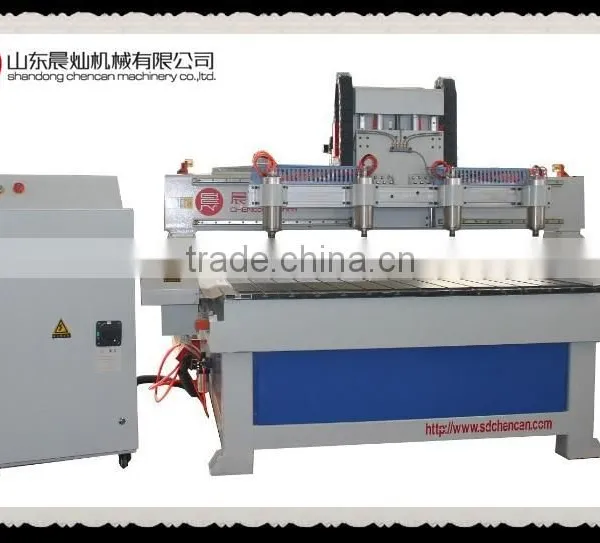

Economic Wood Carving Machine with Four Spindles
CC-M1530AH4
Description:
1. Whole machine is welded with thick seamless steel structure; Processed by high temperature tempering treatment and vibration stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed.
2. Four spindle wood carving machine can work at the seam time, which can work together within the seam time. So the machine save working time cost and investment for you and brings you with high efficiency.
3. Three axes adopt Taiwan imported HIWIN big square guiding rail; X and Y axes adopt rack and pinion transmission,fast working, high efficiency and low cost. Z axis adopts Germany imported ball screw,with high precision and long life time.
4. DSP control system which with USB connection operated with the handle, convenient operation.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
7. Perfect oil-injection system makes the maintenance more convenient.
Applicable Materials:
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
PRODUCT PARAMETER

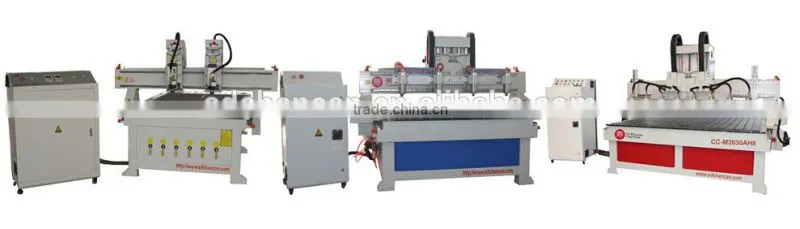

| Model | CC-M1325AH2 | CC-M1530AH4 | CC-MS2030BH8 |
| Working size | 1300*2500*200mm | 1500*3000*200mm | 2000*3000*200mm |
| Table Size | 1440*3040mm | 1640*3540mm | 2140*3540mm |
| Spindle Number | 2 pcs | 4 pcs | 8 pcs |
| XYZ positio precision | +/-0.005mm | +/-0.005mm | +/-0.005mm |
| Table surface | T-slot & Vacuum Table | T-slot & Vacuum Table | T-slot Table |
| Frame | Welded structure | Welded structure | Welded structure |
| Max. Idling Speed | 35m/min | 35m/min | 35m/min |
| Spindle Motor Power | 3.5KW air cooling spindle | 2.2Kw water air cooling spindle | 2.2kw water cooling spindle |
| Spindle speed | 0-18000RPM | 0-24000RPM | 0-24000RPM |
| Working Mode | Steeper | Steeper | Servo |
| Motor | Big stepper motor | Big stepper motor | Japan YASKAWA servo motor |
| Drive | 2811 big YAKO drive | 2811 big YAKO drive | Japan YASKAWA servo drive |
| Inverter | Fuling 3.7kw | Fuling 3.7kw | Fuling 3.7kw |
| Operating System | DSP control system | DSP control system | DSP control system |
| Interface | USB | USB | USB |
| Vacuum system | Yes, with 5.5kw pump | Yes, with 5.5kw pump | NO |
| Work-holding | By Suction | By Suction | By Clamp |
| Lathe Structure | Seamless welded steel structure | Seamless welded steel structure | Seamless welded steel structure |
| X,Y Structure | Rack and pinion transmission, | Rack and pinion transmission, | Rack and pinion transmission, |
| Z Structure | φ25mm Rolling Ball screw | φ25mm Rolling Ball screw | φ25mm Rolling Ball screw |
| Rails | Taiwn HIWIN 20 square rail | Taiwn HIWIN 20 square rail | Taiwn HIWIN 25 square rail |
| Working Voltage | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz |
| Command | G code,HPGL,U00,mmg,plt | Gcode,HPGL,U00,mmg,plt | G code,HPGL,U00,mmg,plt |
PRODUCT SHOW
Main parts:
Lathe body & Working Table
Rack & Pinion; Ball screw

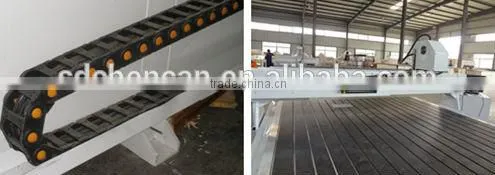

Closed tank chain
YAKO 2811 drives & Fuling 3.7kw Inverter
Oil system & Vacuum pump
DSP Handle control system

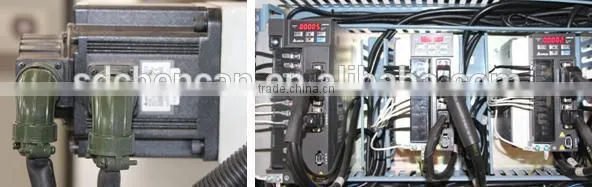

Japan YASKAWA servo motors and drives (optional)
Samles made by wood carving machine:

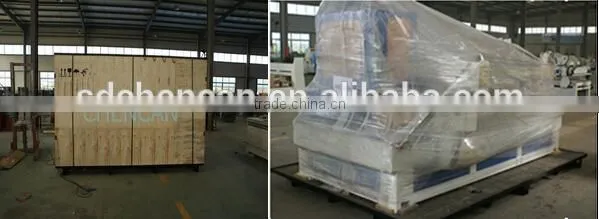

Package for wood carving machine:

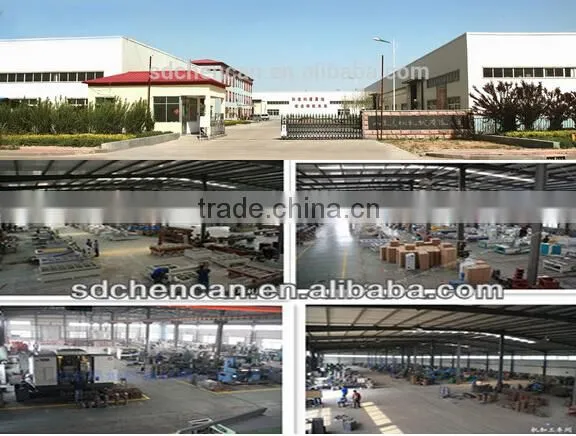

Company Show
Certifications
