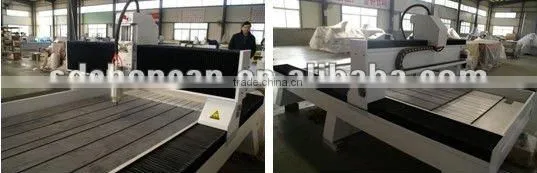

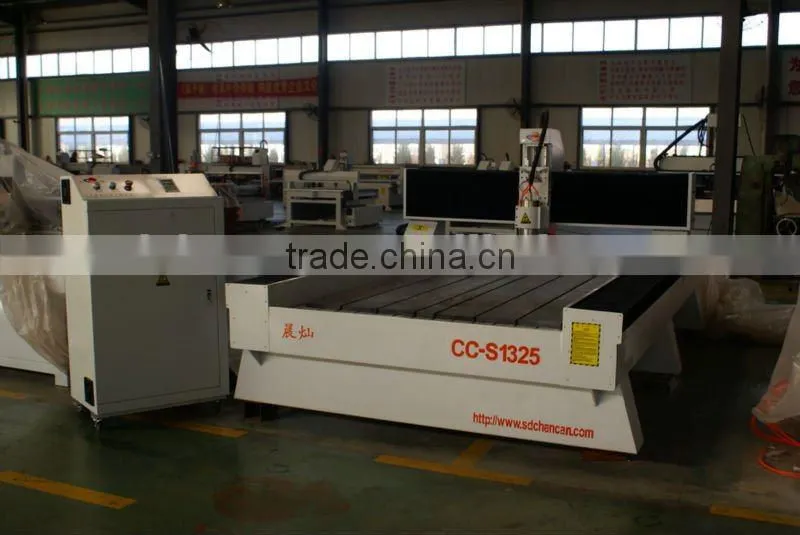

Shandong 1325 CNC Stone Engraving/Carvng Router Machine CC-S1325B
1. Lathe bed is welded with thick square tube and is processed by high temperature treatment, good rigidity and heavy loading.
2. Three axes adopt Hiwin high precision square orbit; x and y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; z axis adopts imported ball screw, with high precision and long life time.
3. Well compatibility: CAD/ CAM designing software e.g. Type3/ Artcam/ Castmate/ Wentai etc.
4. Has the function of re-carving after break point and power failure.
5. Has the function of forecasting process time.
6. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation.
7. Adopt imported linear square orbit, high precision, heavy loading and long lifetime.
8. The machine has water tank and automatic water cooling system.
9. Waterproof and dustproof design for the machine products the transmission parts from broken.
Applicable industries:
Stone working: engraving various granite, bluestone, marble, gritstone, soapstone and etc.
Technical Parameter:
Description |
Parameter |
X,Y working area |
1200*2400mm |
Z working area |
150mm |
Table size |
1340*2540mm |
Resolution |
0.05mm |
Lathe structure |
Seamless welded steel structure |
X,Y structure |
Pack and pinion transmission, Linear orbit |
Z structure |
Imported ball screw |
Max. idling speed |
30m/min |
Spindle motor power |
3.0Kw |
Spindle rotate speed |
0-24000r/min |
Working voltage |
AC380V/50Hz |
Working mode |
Stepper |
Driver |
Stepper |
Command |
G code, HPGL, U00, mmg, plt |
Operating system |
DSP |
Interface |
USB |
Diameter of cutter |
φ3.175 , φ6 φ, 12.7mm |
Dust-collect function |
Yes |
Working-holding |
By clamp |
Net weight |
2000KG |
Packaging&certificates:
