CHENCAN CNC Natural Stone Carving Router Machines With Dust Collector Also Can do Wood Engraving CC-S1325B

CHENCAN CNC Natural Stone Carving Router Machines With Dust Collector Also Can do Wood Engraving CC-S1325B thumbnail-1
CHENCAN CNC Natural Stone Carving Router Machines With Dust Collector Also Can do Wood Engraving CC-S1325B photo-1
US$ 8,900 - 9,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Engraving Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Shandong Chencan Machinery Incorporated Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Engraving Machine
Use Marble
Place of Origin Shandong, China
Brand Name CHENCAN
Model Number CC-S1325B
Voltage AC380V-/220V-Three Phase (Optional)
Power(W) 12kw
Dimension(L*W*H) 1440*3040*1600mm
Weight 2000KG
Certification CE,ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1,High quality stone engraving cnc router
2,CE & ISO Certificate
3,warranty is one year
4,water tank

natural stone carving router machines with dust collector also can do wood engraving

CC-S1325B

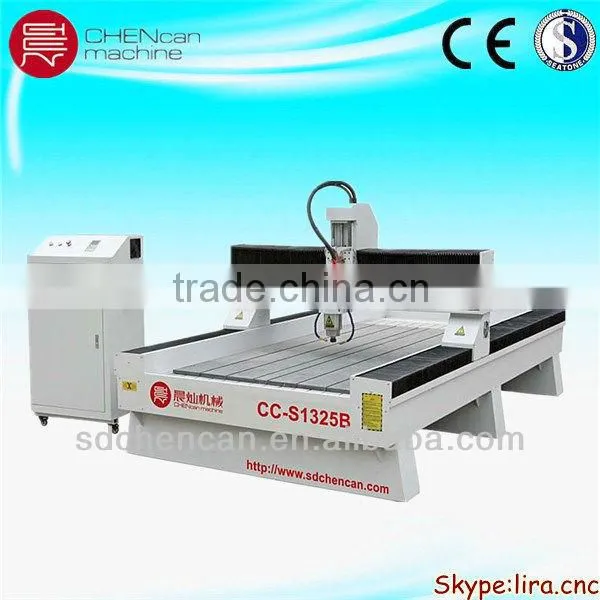

                                                                   CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B



standard features:



1.Professional used for any kind of Marble and wood engraving

Lathe bed is welded with thick square tube and is processed by high temperature treatment, good rigidity and heavy loading.

CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B

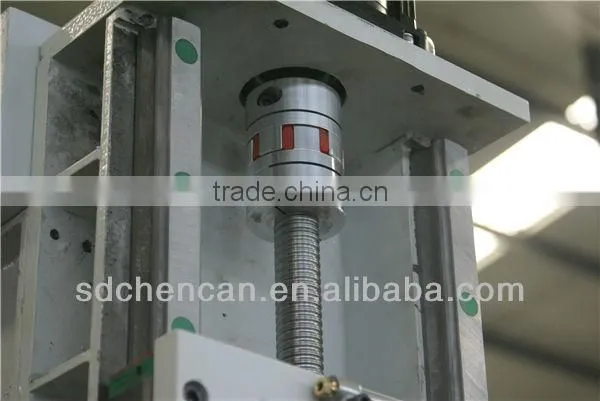

2. Three axes adopt Hiwin high precision square orbit; x and y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; z axis adopts imported ball screw, with high precision and long life time.



CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B

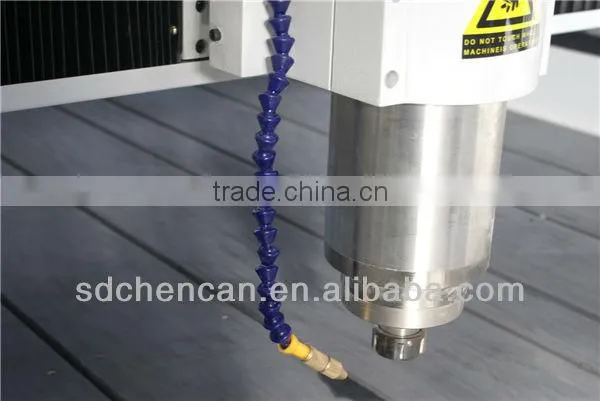

3. Main spindle: 3.0kw less noise, strong power and high precision .



CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B



4. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation



CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B



5,The machine has water tank and automatic water cooling system

6, Waterproof and dustproof design for the machine products the transmission parts from broken.

7, Well compatibility: CAD/ CAM designing software e.g. Type3/ Artcam/ Castmate/ Wentai etc.



Technical Parameter:

Description

Parameter

MODEL

CC-S1325B

X,Y,Z working area

1300*2500*220mm

Table size

1340*2940mm

Resolution

0.05mm

Max. idling speed

30m/min

Spindle motor power

4.5KW

Spindle rotate speed

0-24000r/min

Working voltage

AC380V/50Hz

Diameter of cutter

φ3.175-φ12.7

Cooling mode

Water-cooling

Work-holding

By clamp

Net weight

2000KG

Optional

Rotary system

Software

Artcam, Powermill , UG,etc

Package

Standard Fumigation-free Wooden Case



Applicable industries:



Marble/Stone working: engraving on various granite, bluestone, marble, gritstone, ceramic tile, soapstone, etc.

samples:

CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B

Standard exported Wooden case

CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B



 CERTIFICATIONS:

CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B

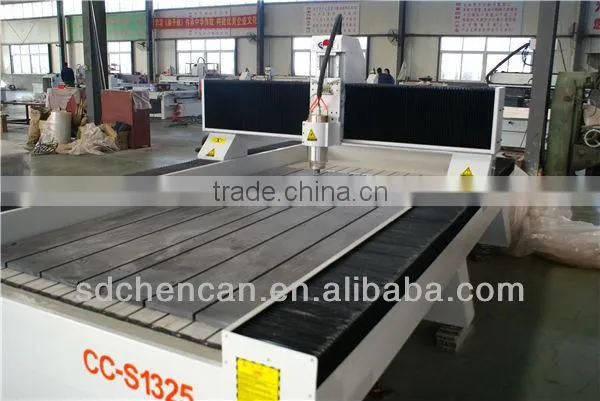

factory:

CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B



any questions,contact us:

CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B

Lira Zhou

Export manager

Viber/Whatsapp ID:0086-13583195229

Skype:c

TraneManager ID:cn220191925

Facebook/linkedin/Wechat ID:Lira Zhou.

CHENCAN CNC natural stone carving router machines with dust collector also can do wood engraving CC-S1325B
