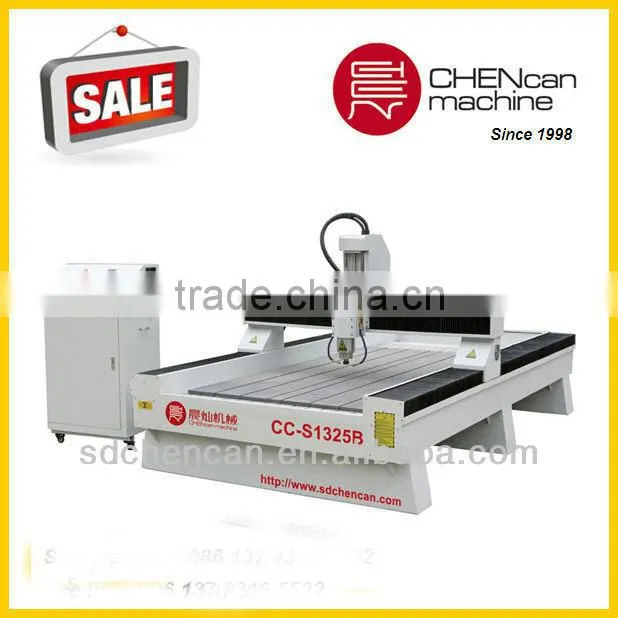

Heavy Metal / Stone CNC Carving Router Machine --CC-S1325B
Specifications of cnc router machine for stone
Description |
Parameter |
X,Y working area |
1300*2500mm |
Z working area |
150mm |
Table size |
1340*2540mm |
Resolution |
0.05mm |
Lathe structure |
Seamless welded steel structure |
X,Y structure |
Pack and pinion transmission, Linear orbit |
Z structure |
Imported ball screw |
Max. idling speed |
30m/min |
Spindle motor power |
3.0Kw |
Spindle rotate speed |
0-24000r/min |
Working voltage |
AC380V/50Hz |
Working mode |
Stepper |
Driver |
Yako |
Command |
G code, HPGL, U00, mmg, plt |
Operating system |
DSP |
Interface |
USB |
Diameter of cutter |
φ3.175 , φ6 φ, 12.7mm |
Dust-collect function |
Yes |
Working-holding |
By clamp |
Net weight |
2000KG |
Features of CNC marble working router machine
1.Chencan Marble CNC Engraver Machine, Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment, good rigidity and heavy loading.
2. For any set cnc engraving machine three axes adopt Taiwan Hiwin high precision square guide rail,X and Y axes adopt rack and pinion transmission, fast working,high efficiency and low cost; Z axis adopts Germany-made ball screw,with high precision and longevity.
3. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Wentai etc.
4. Has the function of re-carving after break point and power failure.
5. Stone Engraving Machine Has the function of forecasting process time.
6. Adopting advanced DSP system with USB interface, operated with the handle, convenient operation. CNC engraving and cutting machine can completely work off-line and do not take any computer resources.
7. The machine has water tank and automatic water cooling system for cutters.
8. Water proof and dustproofdesign for the CNC machine protects the transmission parts from broken.
Applicable industries: Marble CNC Engraver for Stone working: engraving on various granite, bluestone, marble, gritstone, ceramic tile, soapston and etc. Marble cnc carving machine for Metal working also: can engarve on various colorful metals like aluminum, brass and so on.

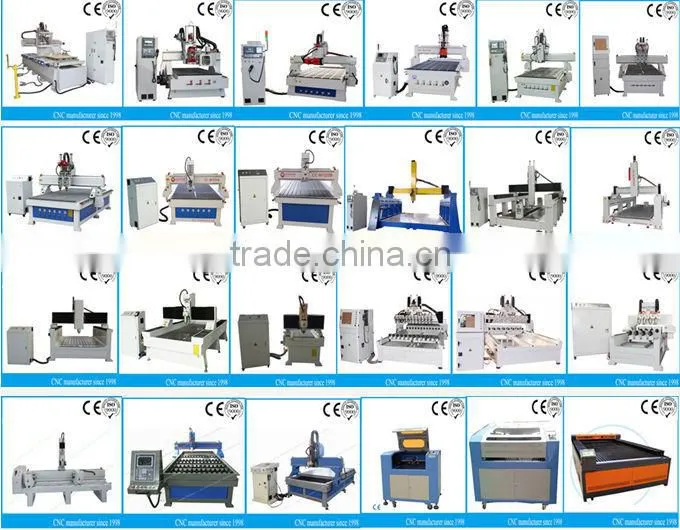

various modelsof CNC router for wide application in different fields wood working, stone carving, mold openning
