Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > 1325 DSP Control System Water Cooling Cnc Marble Machine

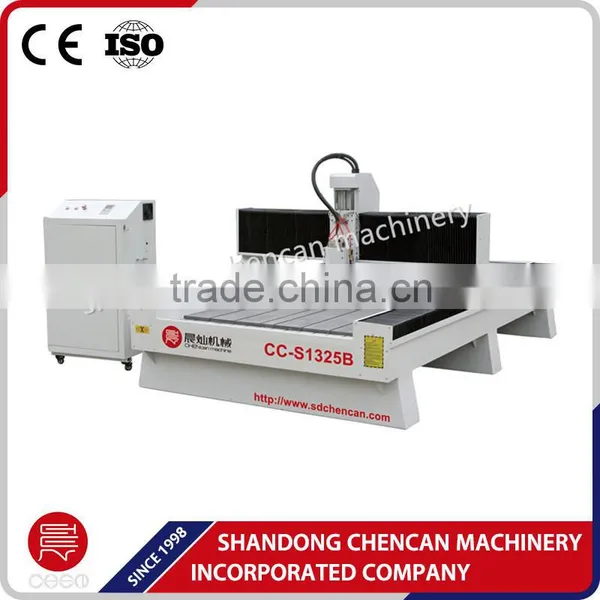

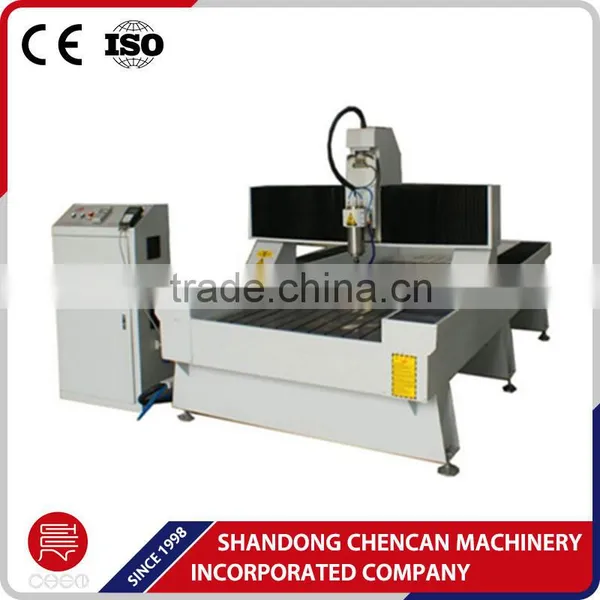

1325 DSP Control System Water Cooling Cnc Marble Machine

Name: 1325 DSP Control System Water Cooling Cnc Marble Machine
Brand: CHENcan
SKU: 130416243

1325 DSP Control System Water Cooling Cnc Marble Machine thumbnail-1

1325 DSP Control System Water Cooling Cnc Marble Machine thumbnail-2

1325 DSP Control System Water Cooling Cnc Marble Machine thumbnail-3

1325 DSP Control System Water Cooling Cnc Marble Machine photo-1

1325 DSP Control System Water Cooling Cnc Marble Machine photo-2

1325 DSP Control System Water Cooling Cnc Marble Machine photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Shandong Chencan Machinery Incorporated Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao (China)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name CHENcan

Model Number CC-S1325B

Voltage 380v or 220v, 3 phase only

Power(W) 9KW

Dimension(L*W*H) 3150*2100*1800mm

Weight 2000KGS

Certification CE, ISO9001

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

1325 DSP control system water cooling cnc marble machine

Features:

1. Lathe bed is welded with thicker square tube and is processed by high temperature tempering

treatment, good rigidity and heavy loading.

2. Three axes adopt Hiwin high precision square guide rail; X and Y axes adopt rack and pinion transmission, fast working,high efficiency and low cost; Z axis adopts Germany-made ball screw,with high precision and longevity.

3. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

4. Has the function of re-carving after break point and power failure.

5. DSP system with USB interface, completely offline working, no need put a computer there.

6. The machine has water tank and automatic water cooling system for cutters.

7. Waterproof and dustproof design for the machine protects the transmission parts from broken.

Applicable industries:

Stone working: engraving on various granite, bluestone, marble, gritstone, ceramic tile, soapston and etc.

Marble engraving

Ceramic tile

Metal working also: can engarve on various colorful metals like aluminum, brass and so on.

Copper engraving

Glass engraving:

Packing:

Strong Plywood box for sea shipment

Technical Parameter:

Description	Parameter
X,Y working area	1300*2500mm
Z working area	200mm
Table size	1340*2940mm
Resolution	0.05mm
Lathe structure	Seamless welded steel structure
X,Y structure	Rack and pinion transmission, Hiwin square guide rail
Z structure	Germany-made ball screw, Hiwin square guide rail
Max. idling speed	30m/min

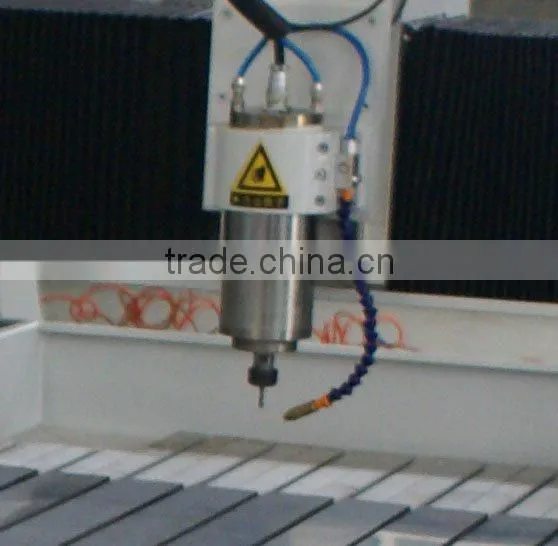

Spindle motor power	4.5 KW
Spindle rotate speed	0-18000r/min
Working voltage	AC380V/50-60Hz, 3Ph
Working mode	Stepper
Driver	YAKO
Command	G code(HPGL,U00,mmg,plt)
Operating system	DSP
Interface	USB
Diameter of cutter	φ3.175-φ16 mm
Cooling mode	Water-cooling
Dust-collect function	Yes
Work-holding	By clamp
Net weight	2000KG
