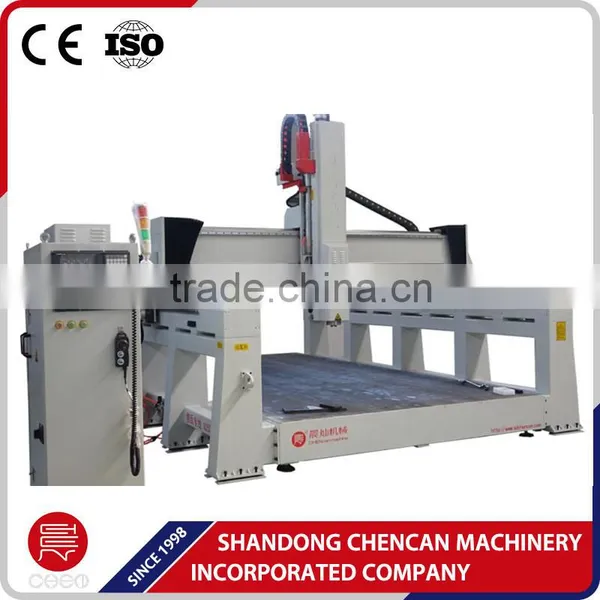

Hot Sale China Chencan 3 Axis Polyurethane Foam Machine with Heavy Duty Body CC-SF2540Q-3S
Standard Features:

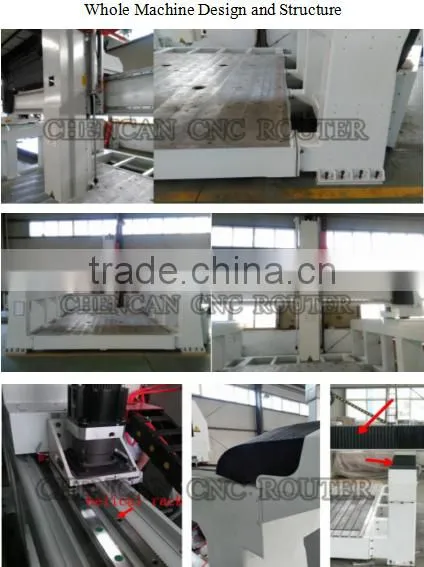

1. Adopt computer-aided design to achieve machine’s optimum structural design. By movable gantry and fixed table mode, whole machine is welded with reinforcing steel structure. Strengthening ribs are welded inside. Many processes of stress relief treatment greatly improve the whole machine’s rigidity and processed by high temperature tempering treatment to ensure that the stability is excellent, not easy to be deformed.
2. CC-SF2540Q-3S Mold CNC Machine's effective working area is 2550mm* 4050mm*1000mm.

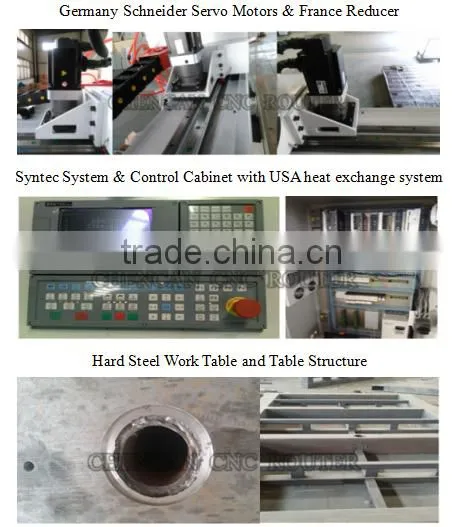

3. Germany Schneider AC servo system, one 2kw motor in X axis, two 2kw in Y axis and one 1.5kw motor in Z axis which with brake function, and all axes adopt France reducer.

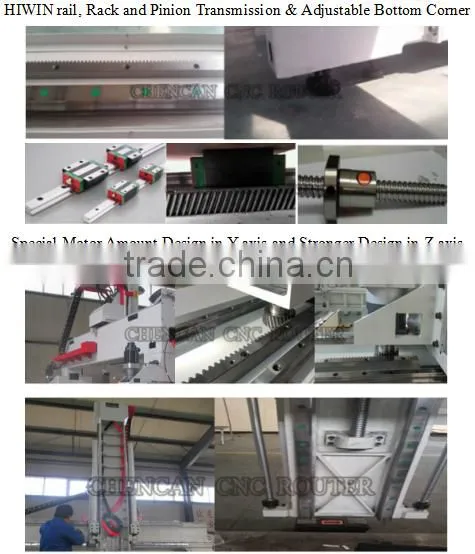

4. X and Y axes adopt hardened helical rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts Taiwan imported Taiwan 32mm ball screw,with high precision and long life time.
5. All axes adopt Taiwan HIWIN big H35 square rail and new design for Y motor amount type to make sure the whole machine more stable and powerful.
6. Z axis use dual pneumatic balance cylinder design, which effectively reduces the motor’s loading power and extend machine’s service life.
7. Adopting Taiwan-made Syntec control system, separate keyboard control system and color LCD screen makes the machines have perfect performance, with USB connection and MPG to make the operation more easier.

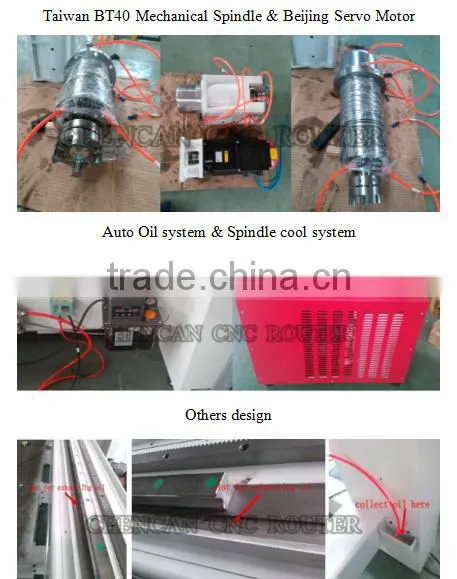

8. Use Taiwan mechanical BT40 spindle, with the max speed 12000 rpm which with bigger power and longer life time than common electronic spindle. Adopt Beijing servo motor to driver the spindle directly, with lower process cost. Liquid type cylinder to hold the tool holder when change tool.
9. All axes use dust-proof and protective door (front and back) design to make the maintain more easier.
9. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Mastecam etc.
10. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
11. All main spare parts use the top brand, such as Schneider button, Omron switch, Auto lubrication, USA heat exchange for control cabinet, CW series auto spindle cooling system... All design to ensure the whole machine with the best performance.
Key words: Good quality cnc router, cuttiing machine, cnc engraver, cnc machine, 3 axis cnc machine with cheap price.
Processing Effect:
It can manufacture the following effects: engraving, cutting, milling, drilling, relief, shadow, encasement and so on.
Applicable Materials:
Wood, EPS (any kind foam) and other non-metallic materials.
1. Mold industries:
sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden pattern model, wooden model aviation and other wooden mould.
2.Musical instrument industry: Can carve three dimension musical instrument,contour cutting.
Basic Advantanges:
A. High soft, famous brand electric cables, with high abrasion, fold, high temperature, acid and alkali resistant.
B. Any work stage is strictly processed according to Euro CE quality standard and ISO quality standard. Any set CNC Router will be done at least 72 hours careful testing and checking, from small part to the whole machine. After any part’s quality inspection, finishing basic maintenance measures, the machine can be packaged by the specialized workers for transport.

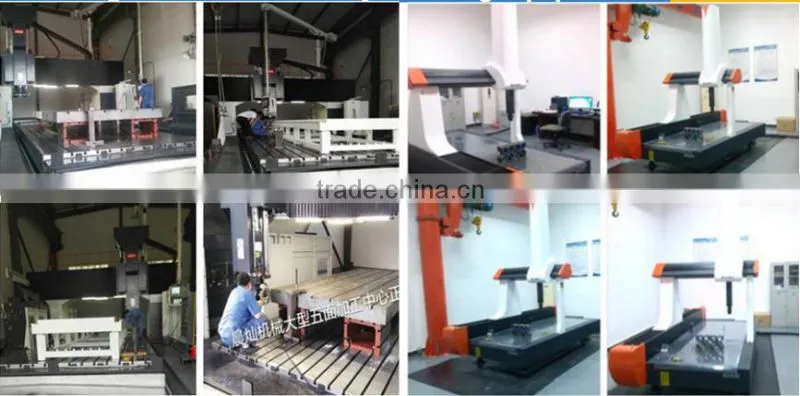

C. Our company has powerful strength in metal machines, In order to make sure every detail’s high quality level; most of the machine’s metal parts are made by our own machining center imported from American.
Product Parameter:
| Model | CC-SF2540Q-3S |
X,Y Work Area |
2500*4000*1000mm |
Table surface |
Steel work table with fix drill |
Frame |
Welded structure with thick steel |
Max. Idling Speed |
40m/min |
Spindle |
Taiwan mechanical BT40 spindle |
Spindle cool type |
12000 RPM |
Max tool diameter |
40mm |
Motors |
YASKAWA Servo motor |
Reducer |
France reducer (4 piece total) |
Control system |
Taiwan Syntec control system with USB connection and MPG |
X Y drive |
Helical rack and pinion transmission, HIWIN H35 square guide rail |
Z drive |
Taiwan TBI 32mm ball screw, HIWIN H35 square guide rail |
Protective door |
Yes, include front and back door |
Working Voltage |
AC380V/50Hz 3 Phase |
Command |
G code,HPGL,U00,mmg,plt |
Net weight |
9000KGS |
Product Show:

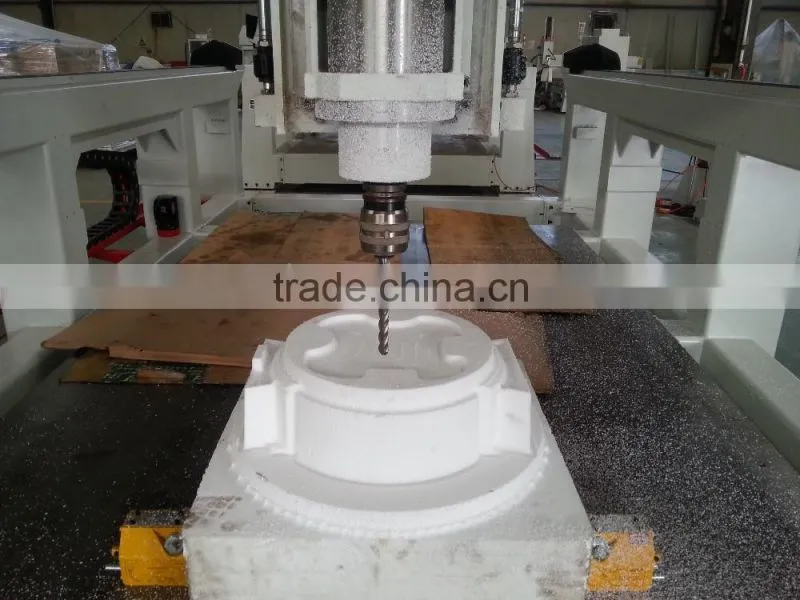

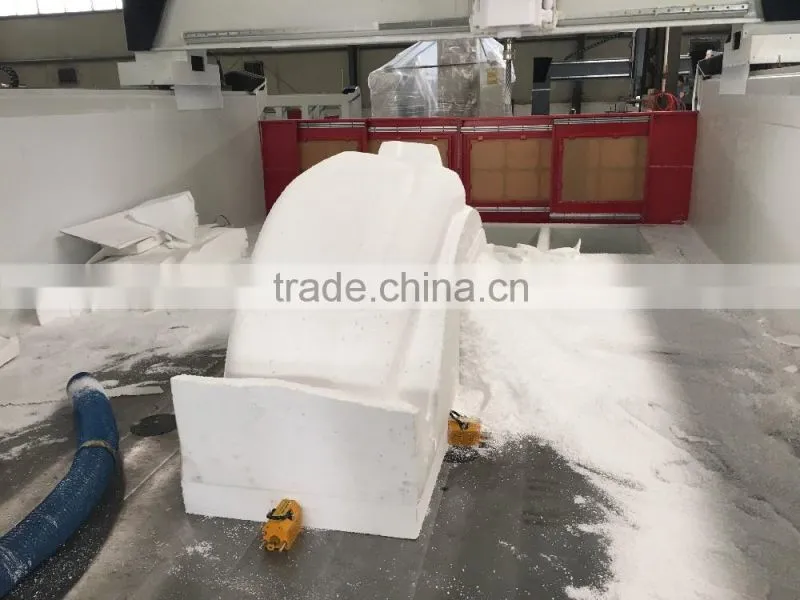

Samples:
Company Show:
Certification:
