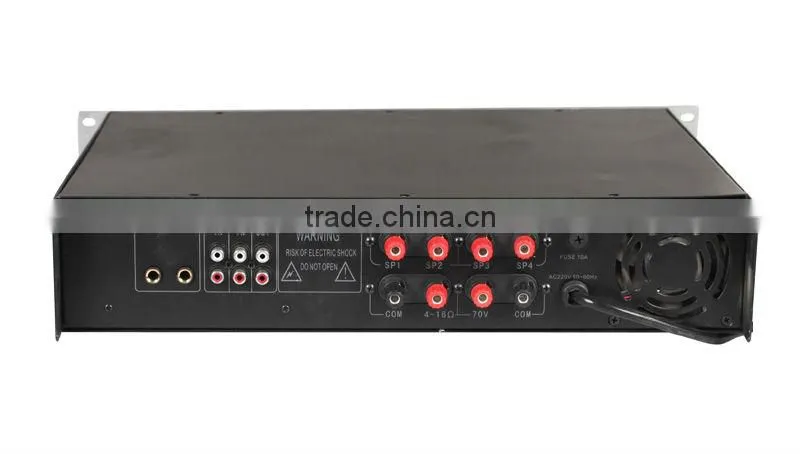

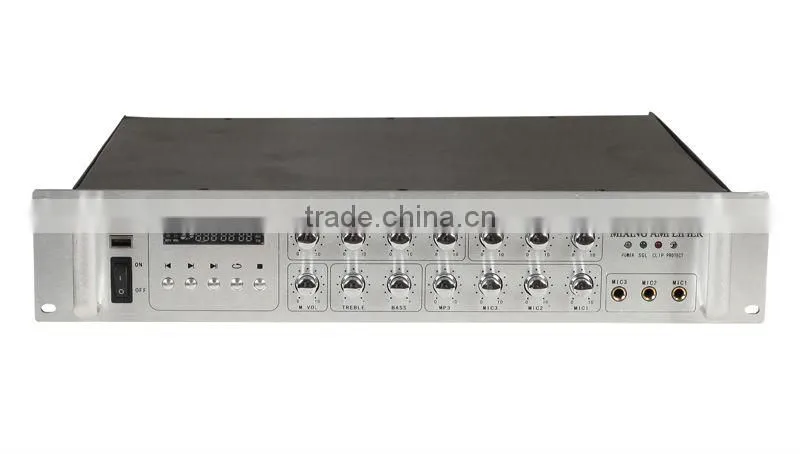

Help CenterVolume Control Independent Audio Amplifier
Related Products
-
NEW USB Amplifier PowerUS$ 50 - 110MOQ: 200 Pieces -
USB FM SD Card Mono AmplifierUS$ 40 - 55MOQ: 200 Pieces
-
110W 2U FM Broadcast Amplifier With 3-zone MP3/FM Tuner Power AmplifierUS$ 50 - 110MOQ: 200 Pieces
-
320W 2U MP3 Amplifier With 6-Zone & MP3/FM Tuner Power AmplifierUS$ 50 - 110MOQ: 200 Pieces
-
160W 2U Mixer Amplifier With 6-Zone & MP3/FM Tuner Power AmplifierUS$ 50 - 110MOQ: 200 Pieces
Specifications
1.Power:350Watts2.Size:482*370*88mm
3.Output Mode:70V/100V/4-16ohm
4.N.W:12.5KG
Features:
3 MIC inputs , 3AUX input ,1AUX output,MIC1 has priority (mute function ).
Power outputs: 4-16 Ω,70V,100V,4 zones output.
Individual control for MIC and AUX input.
4 zones independent zone volume control.
With MP3 player,support MP3 and WMA.USB.
Bass control, Treble control.
Protection for overload and short circuit.
Specifications:
Model |
USB-180WT |
USB-350WT |
|
Rated Output Power |
180W |
350W |
|
Output Mode |
4-16Ω,70V,100V |
||
Frequency Response |
40Hz-18KHz±0.5dB |
||
S/n Ratio |
MIC part>70dB,AUX part>76dB |
||
Tone |
Bass: ±10dB at 100Hz Treble: ±10dB at 100Hz |
||
Voltage |
AC 220V(50-60Hz) |
||
Dimensions |
482×325×88mm |
||
Weight |
N.W:11.0Kg |
N.W:13Kg |
|
Packing Size |
52×44×18CM |
||
Note
1)AC220(50Hz-60Hz)
2)Don't put the vents to avoid emission effect.
3)To avoid unnecessary load circuit.
4)When play MP3,If MIC and circuit are not used,Pls put off the knob.
5)When the machine is abnormal, Non-professional persons,Do not open and
maintain It, to avoid electric shock accidents.
