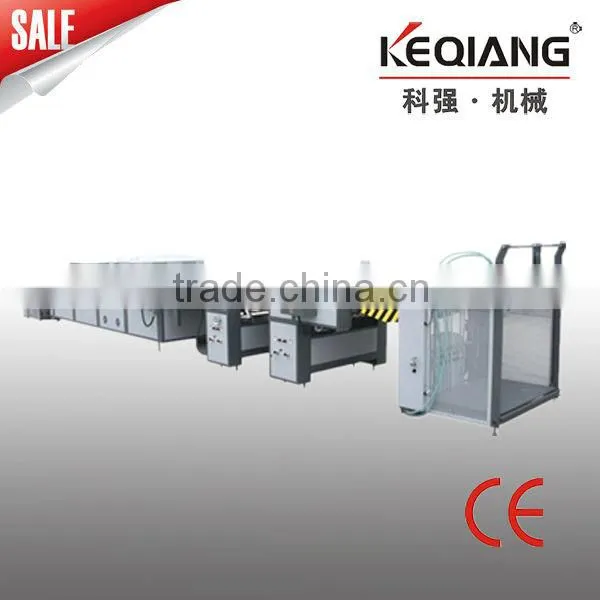

SGUV-1000A AUTOMATIC COATING MACHINE
- 15 Set / Sets per Month
- Shanghai or Ningbo
- T/T Credit Card PayPal
- Economical, Efficient and Energy-Saving Manual Screen Printing PU Scraper Cleaning Machine
- Tamprinter glitter powder machine The operating principle
- flame treatment machine TM-F4 car bumpers flame processor equipment
- Air-Gas burner Bottle flame treatment machine with automatic ignition
- Manufacturer Wholesale Custom Tamprinter glitter powder machine
- Factory Supply Tamprinter Squeegee Clean machine for sale
Product Details
Condition: | New | Application: | Other, Machinery & Hardware | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 380v | Power: | 65KW |
Packaging Type: | Other, Wooden Cases | Packaging Material: | Wood | Place of Origin: | Zhejiang, China |
Brand Name: | KEQIANG | Model Number: | SGUV-1000A | Dimension(L*W*H): | 1.2m*1.76m*1.6m |
Weight: | 5000kg | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
UV Automatic Coating Machine1.high speed uv coating machine
2.Water-proof & oil-proof
SGUV-1000A AUTOMATIC COATING MACHINE
SGUV-1000/1200A UV automatic coating machine has experienced technical upgrades based on the origina three-roller coating machine.With frequency coversion control adopted for metering roll,oiling volumes for papers of different thickness can be controlled through different linear veldt,straightforward and easy to operate,and it achieves fundermental changes in the surface fineness and smoothness of coating products without orange peel veins ba and large,thus optimizin polishing products.
Main Specification
Model | SGUV-1000A |
Max. Paper Size | 590*882mm |
Min. Paper Size | 340*420mm |
Max. Coating Width | 950mm |
Paper Thickness | 80-600g/m2(wind-knife) 200-600g/m2 |
Max. Feeder Speed | 8000pcs/hour(thick paper) 4000pcs/hour(thin paper) |
Overall Dimensions | 1200*1760*1600mm |
Total Power | 65kw |
Total Weight | 5000kg |
Work Flow:

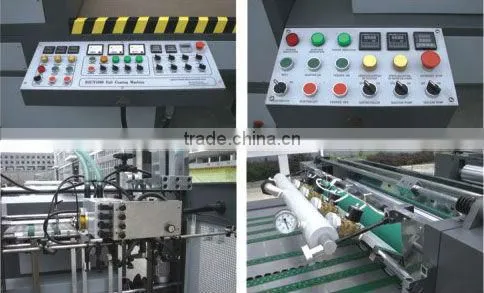

Each parts:
Our Company:
