Specifications
Grooving Machine1. high speed
2. precise and automatic
3. power & labor saving
4. dustless and noiseless

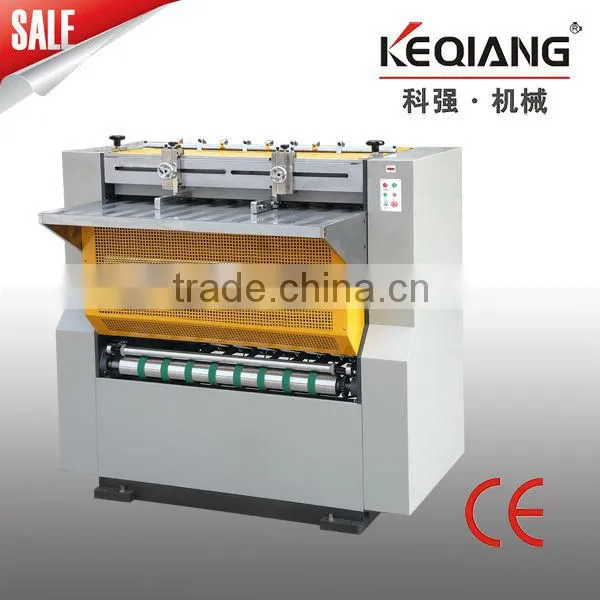

KQ-1000 Grooving Machine
The machine is special designed for notching V type groove, use for industry-cardboard, ash-cardboard, MDF board and other several of cardboard. It adopts new way of transportation principle. Wrap the cardboard on the entire surface of the roller (the diameter is 60cm). It can guarantee the groove more accurately, no deviation and straightly. The machine has the features of high accuracy, fast speed and durable cutting blade.
Performance
1.After notching, the surface of cardboard is very clean and no dust.
2.The machine is very environmental friendly, total power is 3.7kw only and it has no noise.
3.The machine can produce about 1000 pcs boxes per hour fed by hand.
4.The cutting blade can cut 10000-18000 sheets one time in 8 hours.
5.We will supply a sharpen machine for free and it's very easy to operate; it only takes two minutes to sharpen the blade.
6.The cutting degree is adjustable.
7.The machine could groove any thickness from 300gsm-3.6mm.
Main Specification
| Model | KQ-1000 |
Width of Cardboard | 100-950mm |
Length of Cardboard | 100-950mm |
Distance of Each Groove | 0-830mm |
Thickness of Cardboard | 300gsm-3.4mm |
Grooving Degree | 80-140° adjustable |
The Amount of Groove | 9 pieces one time |
Production Speed | 10-35m/min |
Power | 3.7kw/380V |
Dimension(L×W×H) | 1500×1400×1600mm |
Weight | 1100kg |

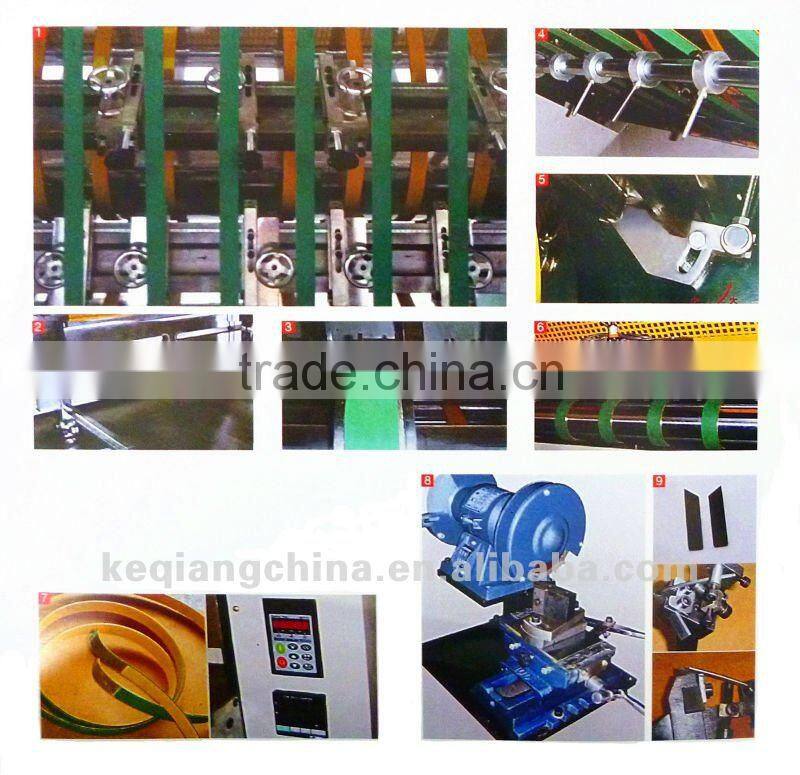

Main Configurations:

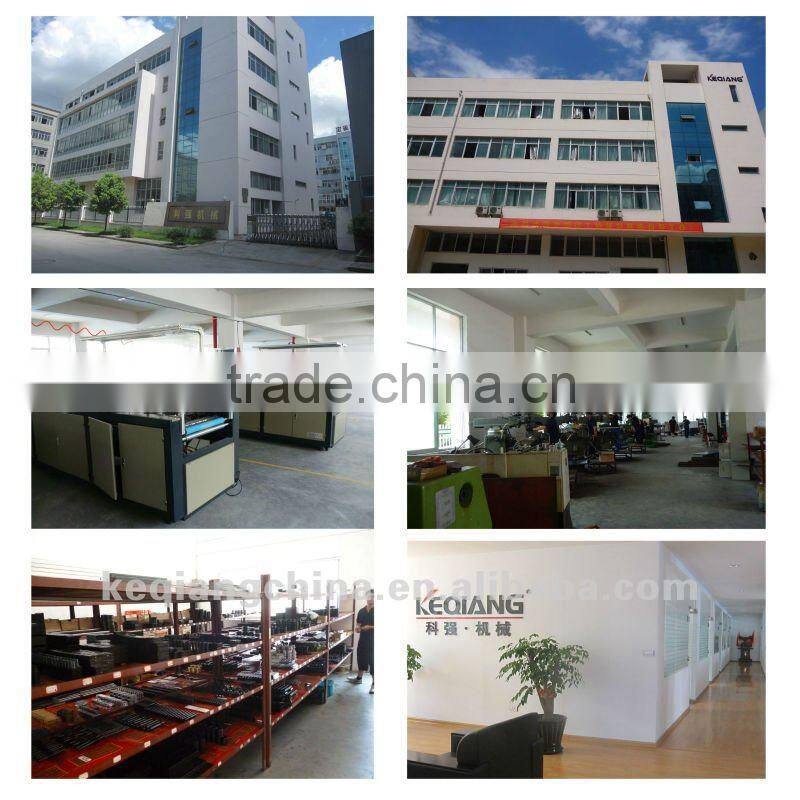

Our Company:
