Specifications
Inner Laminating Machine1.Multi circulation board feeding
2.Touch screen display&operation
3.Panasonic servo-control system

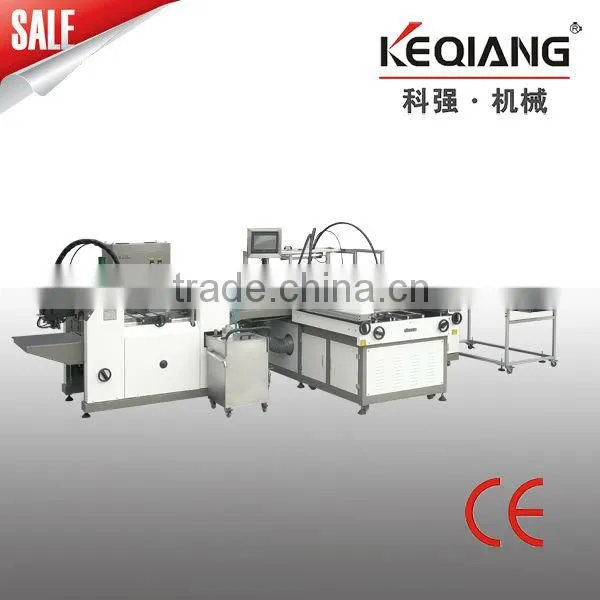

ZTC-900B Automatic Inner Laminating Machine
1. Avoids and solves the problem of two or more paper feeding with the unique double sheets detection system .
2.The board changing efficiency is greatly enhanced with the multi circulation board feeding.
3.The special cam mechanism makes the performance of the inner laminating machine more stable and reliable.
4.The touch screen operation menu and machine fault display function make the operation more convenient.
5.Stable and reliable mechanical drive structure, high quality electrical components ensure the performance of the inner laminating machine.
Note: The only difference between ZTC-900A and ZTC-900B is that A type has a hydraulic position correcting device while B type doesn't. Positioning accuracy of A is 0.5mm and B is 1mm.
Main Specification
| Model | ZTC-900B |
| Maximum Size | 450mm×900mm |
| Minimum Size | 140mm×190mm |
| Board Thickness | 1.0-3.0mm |
| Paper Weight | 100-200g |
| Maximum Speed | 20-30picecs/min |
| Power Supply | 13.5KW/380V |
| Dimension(L×W×H) | 7500× 2600×1850mm |
| Machine Weight | 2500kg |
| Position Accuracy | ±1mm |
Process Flow
