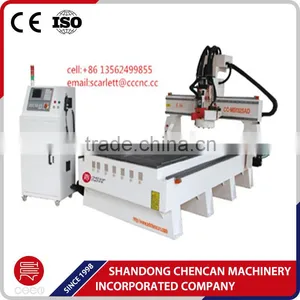

Help CenterDisk Auto-tool Changer CNC Machine Center
Related Products
-
Woodworking Machines 1325 China 3D Atc Cnc Router With 9kw HSD Atc SpindleUS$ 24,000 - 28,000MOQ: 1 Set -
ATC CNC Router/woodworking Machine 1325 With Carousel/linear Tool MagzineUS$ 19,000 - 22,000MOQ: 1 Set
-
Automatic Tool Change Cnc Router/ATC CNC Router 1300x2500mm/1200x2400mm/1500x3000mm for Channel Letters MakingUS$ 15,000 - 30,000MOQ: 1 Set
-
Chencan 1325 ATC Wood Working Carving Machine CNC Router Machine by Linear TypeUS$ 10,000 - 30,000MOQ: 1 Set
-
Professional Factory Cnc Router With Atc / Atc Cnc Router With Low PriceUS$ 15,000 - 30,000MOQ: 1 Set
Technical Parameters | |||
1 |
Stroke range |
X axis |
1300mm |
|
|
Y axis |
2500mm |
|
|
Z axis |
300mm |
2 |
Process precision |
±0.05mm |
|
3 |
Reposition precision |
±0.025mm |
|
4 |
Structure |
Strong seamless steel structure |
|
5 |
X,y,z structure |
X, Y Helical rack and pinion, Z TBI ball screw |
|
6 |
Idle speed |
≥32000mm/min |
|
7 |
Working speed |
≥15000mm/min |
|
8 |
Spindle rate |
Italy HSD 9kw air cooling spindle , 0-18000rpm/min |
|
9 |
Operating system |
Taiwan SYNTEC control system |
|
10 |
Tool Magazine |
Disk auto-tool changer system with6/8pieces cutter |
|
11 |
Motor type |
Japan YASKAWA servo motor |
|
12 |
Driver |
Japan YASKAWA servo |
|
13 |
Working voltage |
AC380V-/220V- 3phase |
|
14 |
Vacuum pump |
5.5kw vacuum pump |
|
15 |
Inverter |
Micno 3.5kw |
|
16 |
Dust collector |
3kw, with two bags |
|
17 |
Wire |
Germany IGUS |
|
18 |
Command code |
G code, HPGL, U00, mmg, plt |
|
19 |
Guide rail |
HIWIN linear guide rail |
|
20 |
Table |
Vacuum table with 6 vacuum zones |
|
21 |
Software |
Artcam |
|
Product Features | |||
1 |
Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. |
||
2 |
Adopts big power Servo system, original Italy 9.0KwHSD air-cooled spindle,Auto-tool changer system makes the machine safer and save time. Top brand Air-cooled vacuum pump for suction, and other high level parts as configuration, Perfectly improve the machine performance, and make it suitable for all kinds of panel furniture production and special-shaped surface processing products fast and large quantity producing. |
||
3 |
All axises use original Taiwan Big size guide rail, Xand Y adopts big size rack with helical gear transmission mode, the moment of force will be transfered more powerful and equably. |
||
4 |
Excellent compatibility for all G code design software: CAD/DAM, Type 3/artcam/powermill/UG,etc... Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software (such as Mastercam, type3,artcam),Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and speed and precision of curve lines. |
||
4 |
Adopting the top-brand and best quality Taiwan-made Syntec 4 axis control system, separate keyboard control system and color LCD screen makes themachine have perfect performace. |
||
5 |
Best brand Janpan YASCAWA servo motor and driver, with steady working capability and high positioning precision. |
||
|

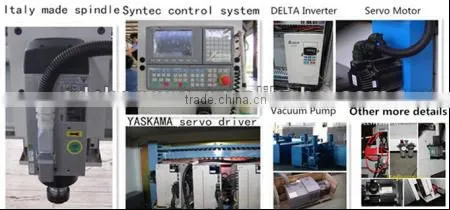

The standard Accessories :
The Manufacturing Process:
Samples:
The workshop detail :
Certificates:
| |||
