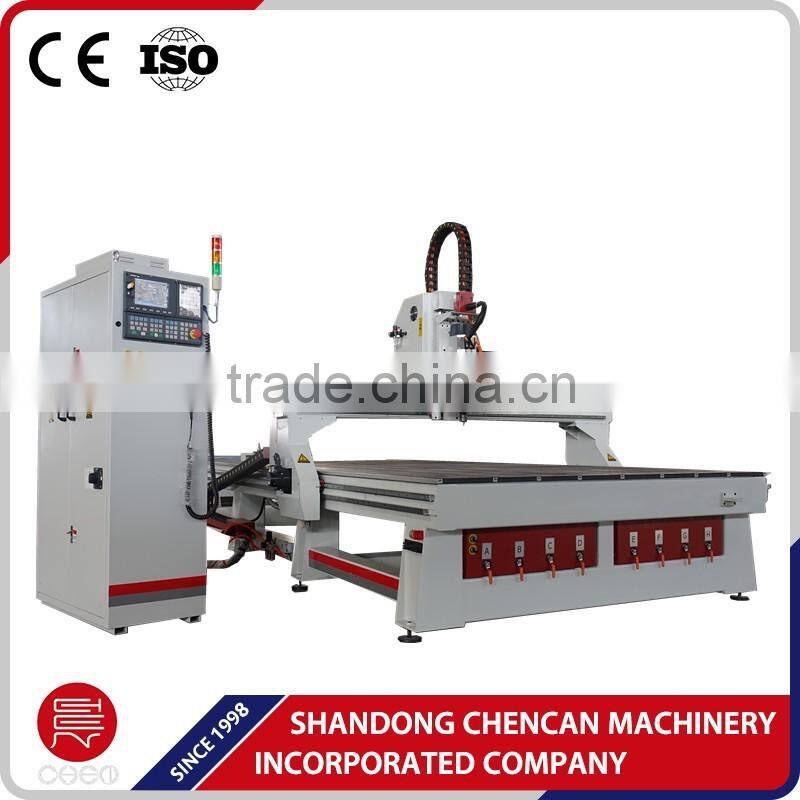

Model: CC-MS2040AC
Linear Auto-tool Changer CNC Machine Center
FEATURES:
1. Heavy model with thick seamless steel lath body structure. By strict vibration aging technology to remove the internal stress , dust-free sandblasting paint process, long-term use without deformation.
2. Adopts big power Servo system, Original Italy 9.0Kw HSD ATC air-cooled spindle, Auto-tool changer system makes the machine safer and save time. Top brand Air-cooled vacuum pump for suction, and other high level parts as configuration, Perfectly improve the machine performance, and make it suitable for all kinds of panel furniture production and special-shaped surface processing products fast and large quantity producing.
3. Alll axes use Original Taiwan Hiwin Big size guide Rail. X and Y adopts big size rack with Helical gear transmission mode, the moment of force will be transfered more powerful and equably .
4. Excellent compatibility for all G code design software : CAD/DAM, Type 3/Artcam/Powermill/UG, etc.. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software (such as Mastercam,Type3, Artcam).
5. Adopting the top-brand and best quality Taiwan-made Syntec control system, separate keyboard control system and color LCD screen makes the machine have perfect performance.
6. Best brand Japan YASKAMA servo motor and driver, with steady working capability and high positioning precision.
7. Linear mode Auto-tool changer , economic and high efficiency. Effective working size : 2000*4000*300mm. Optional size : 1300*2500*300mm and 1500*3000*300mm.
Applicable industries:
Wood processing: cutting and carving on any kind of wood for making furniture, such as door, window, cabinet, craft wooden door, chairs and so on.
Also suitable for the guitar , violin and other musical instrument engraving, cutting and milling.
Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
Any kind of Engraving, cutting , milling , drilling , ect…
Technical specification
Model |
CC-MS2040AC |
working area |
2000mm*4000mm*300mm |
Working mode |
Servo system |
Operating system |
Taiwan SYNTEC control system |
Spindle Motor |
Italy made HSD 9.0KW ATC spindle |
Diameter of cutter |
φ3.175-φ18 |
Tool Magazine |
Linear auto-tool changer system with 6/8/10 pieces cutters |
Weight |
2600KG |
Software |
CAD/DAM, Type 3/Artcam/Powermill/UG |
Vacuum Pump |
Air-cooling Tongyou(China Beicker Brand) vacuum pump |
Standard Power |
AC380V-/220V-Three Phase (Optional) |
