This machine is widely used in advertising industry, such as sign making ,department nameplate ,chest badge ,architectural model, ABS plate , acrylic cutting, jade ,glass and marble engraving.
Features:

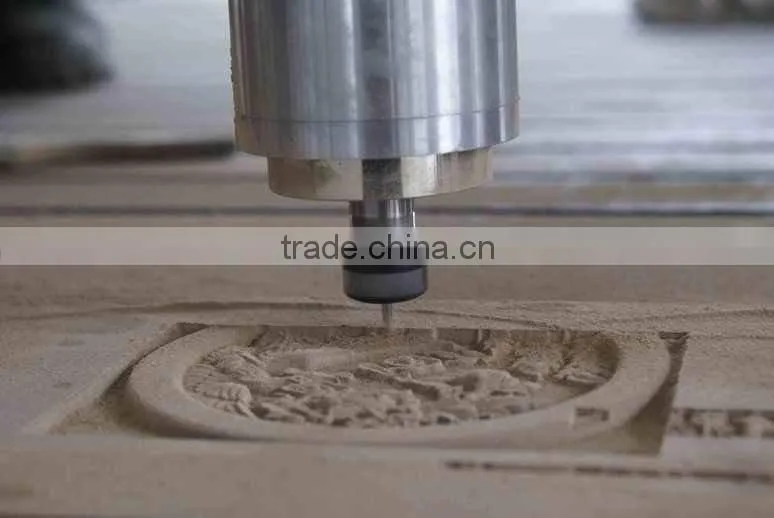

1.One spindle is used for engraving, cutting, milling or for drilling side hole on door for lock.

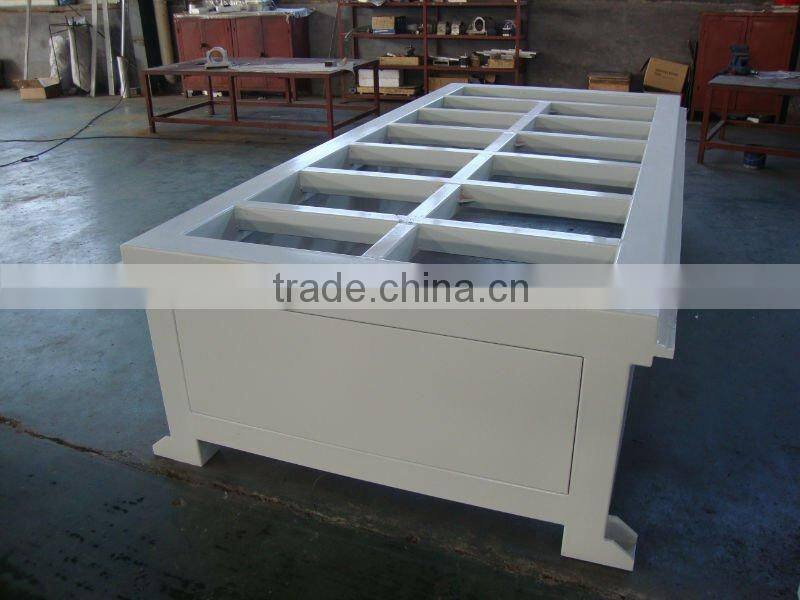

2.Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
3.The machine adopts gantry movement, it can process any kinds of materials freely.

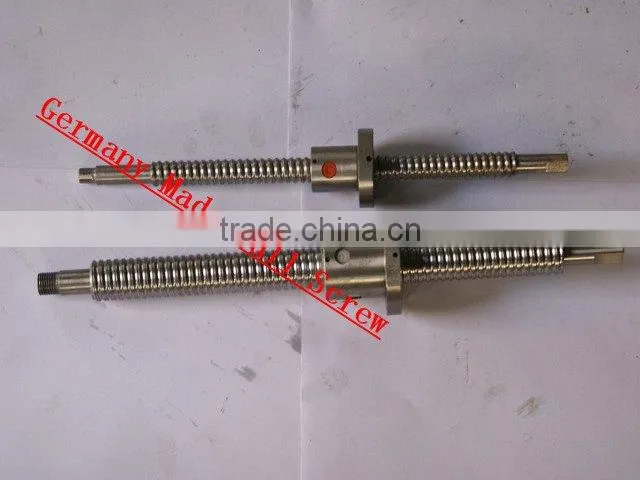

4. X Y Z axes adopt Germany-made ball-screw , having the character of high precision and long life time.
5.Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure.

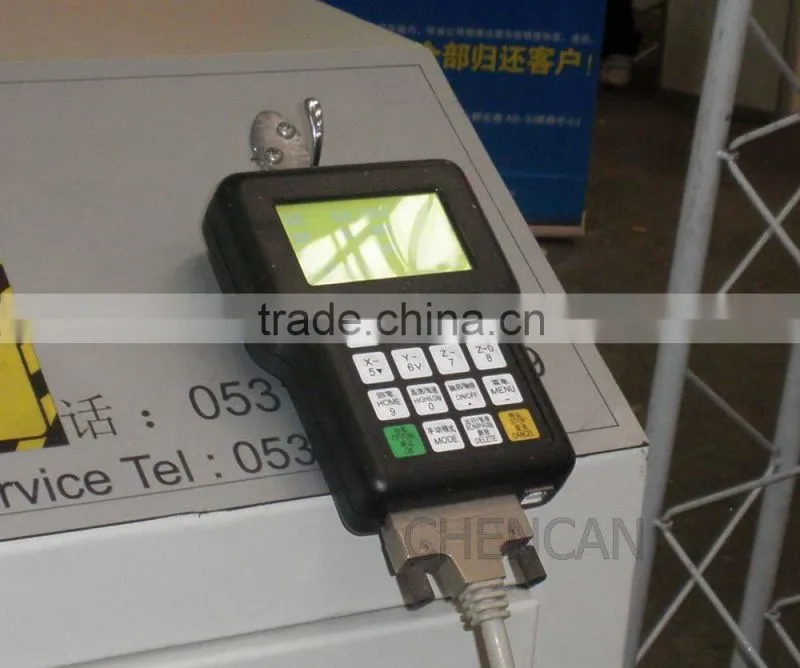

7.Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
Packing: Standard plywood box for export
Applicable industries
Processing various kinds of moulds and furniture such as door, window,cabinet, craft wooden door, screen and so on
Parameter
Model |
CC-G6090B |
CC-G1323B |
CC-G1218B |
CC-G1224B |
|
Lathe bed |
Thick square steel |
||||
X Y working area |
600*900mm |
1300*2300mm |
1200*1800mm |
1200*2400mm |
|
Table size |
720*1050mm |
1400*2600mm |
1300*2100mm |
1300*2700mm |
|
Dimension |
1300*1000*1500mm |
2700*1600*1500mm |
2500*1500*1500mm |
3050*1500*1500mm |
|
Working accuracy |
0.05mm |
||||
Spindle power |
1.5kw |
1.5/2.2kw |
1.5/2.2kw |
1.5/2.2kw |
|
Max idling speed |
8 m/min |
14 m/min |
14 m/min |
14 m/min |
|
Max feeding height |
>80mm |
||||
Spindle speed |
24000 r/min |
||||
Control system |
DSP Handle control(NC Studio optional) |
||||
Command language |
G code, HPGL, U00, MMG,PLT |
||||
Diameter of collet |
3.175-12.7mm |
||||
Working mode |
stepper |
||||
Package |
Wooden case |
||||
Net weight |
250kg |
350kg |
400kg |
600kg |
|
