Cnc Router 4 Axis With Rotary and 4 Axis Cnc Engraving Machine For Wood Abroad Service for Every Customer !

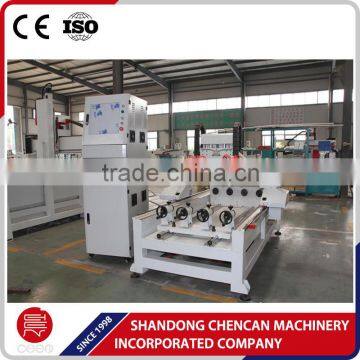

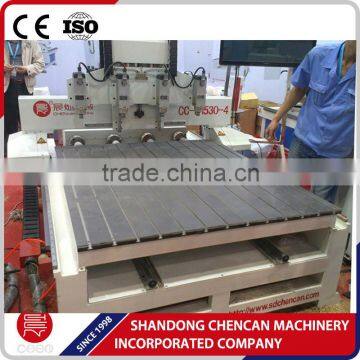

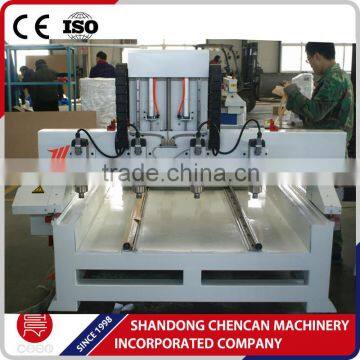

1.Four axis machine, with 4 Rotaries and 4 spindles, which can work at the same time or independently, and every one's max effective working area is 300mm(diameter) by 1500mm(length).
2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
4.Has the 4th rotary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure
7. Adopting advanced Leadshine servo motor and NC studio control system .
1 Spindle motor: Domestic 3.5KW air-cooled spindle
2 Motor system:Leadshine servo motor
3 Operating system: NC studio system
4 Inverter: Fuling
5 Rail: Taiwan HIWIN square rails, lubrication-free lifelong
6 Beam: steel beam stiffeners
7 Cable: drag chain specific Cable, antijamming, antistatic; with high flexibility, longterm use will not break
8 Limit switch: Japan OMRON
9 Electrical components: Schneider and Siemens
10 Table: overall welding tempered aging treatment, strong and does not distort
1 |
Table Working Area |
1250*1500 |
2 |
Rotary Axis Working Area |
300mm*1500mm |
3 |
Process precision |
±0.05mm |
4 |
Reposition precision |
±0.025mm |
5 |
Structure |
Seamless steel structure |
4 |
X,y,z structure |
X, Y Helical rack and pinion, Z TBI ball screw |
5 |
Idle speed |
≥32000mm/min |
6 |
Working speed |
≥15000mm/min |
7 |
Spindle rate |
3.5kw air cooling spindle |
8 |
Spindle speed |
0-18000rpm/min |
9 |
Motor type |
Leadshine servo motor |
10 |
Command code |
G code, HPGL, U00, mmg, plt |
11 |
Working voltage |
AC220V/380V 3phase 50-60HZ |
12 |
Operating system |
Original NC Studio 4 axis |
13 |
Inverter |
INVT |
14 |
Driver |
Leadshine |
15 |
Collect |
ER25 |
16 |
Diameter of cutter |
3.175-12.7mm |
17 |
Table |
Movable T-slot table |
18 |
Guide rail |
HIWIN square guide rail |
19 |
Software |
Powermill, UG |
20 |
Oiling system |
Manual oiling system |
1 Equipment installation
after the Equipment reached the user, the user must read the manual first and carry out installation,
Any need or questions. We will give you best service
2 Train
When we send the machine .we also send a CD for our customer that show them how to operate the machine and how to use the software .
If you still don’t know how to use this machine or the software . we can send our engineer to your country or you can send your engineers to our company and we train them .
the user can by call or email us any problems at any time.
3 After-sales service
One year warranty for machine maintenance,
manual to show customer how to maintain this machine
Forever service for problem-solving .
One set per fumigation-free wooden case
