High Precison 4 Axis Furniture Manufacturing CNC Router Machine
Features

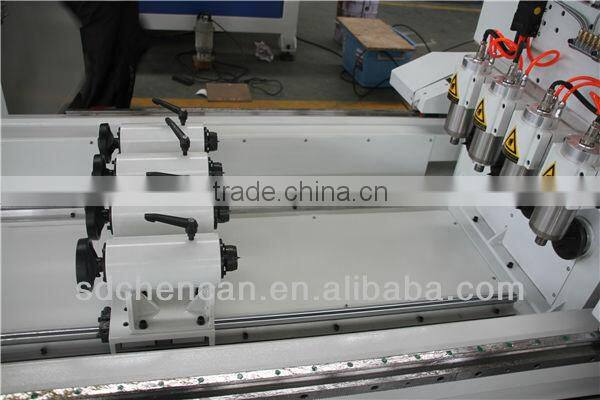

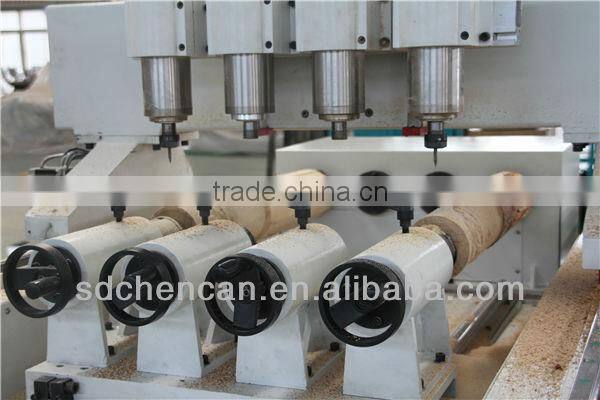

1. cylinder cnc router with 4 Rotaries , which can work at the same time or independently, and every one's max effective working area is 300mm(diameter) by 1000mm(length)
2. With Scanner or designed photo, it can do any 3D Engraving
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

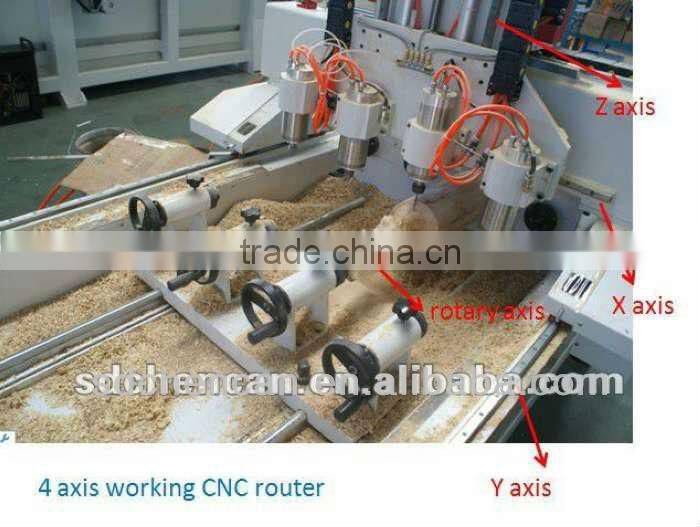

4.Has the 4th rotary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM /designing software e.g. Type 3/Artcam/Castmate/Wentai etc. We will provide the 3D designing
Software with the machine for free .
6.Has the function of re-carving after break point and power failure.
7. Adopting advanced PC Weihong Control Systerm , you can operate and design in the same cmputer freely ,
8, high quality four axis cylinder wood rotary
Technical Specifications
Description |
Parameter |
Optional parameter |
4th rotary axis max diameter |
150mm |
125mm, 200mm |
Machine dimension |
1800mm*1450*1450mm |
|
Resolution |
0.01mm |
|
Lathe structure |
Seamless welded steel structure |
|
X,Y structure |
Rack and pinion transmission, Hiwin square guide rail |
|
Z structure |
Imported ball screw |
|
Max. idling speed |
35m/min |
|
Spindle motor power |
2.2 KW |
1.5kw |
Spindle rotate speed |
0-24000r/min |
|
Working voltage |
AC380V/50Hz |
220v |
Working mode |
Stepper |
|
Cooling mode |
Water-cooling |
Air-cooling |
Dust-collect function |
Yes |
|
Work-holding |
By clamp |
Applicable industriesor Woorking CNC Router 4axis CNC Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials r Woorking CNC Router 4axis CNC machine
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.

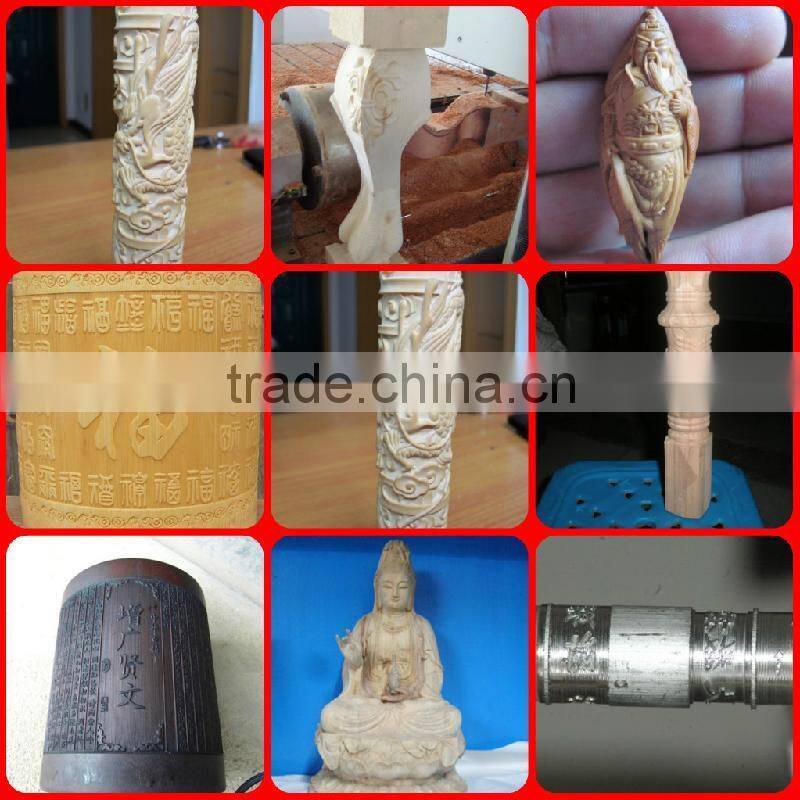

Processing effectWoorking CNC Router 4axis CNC machine

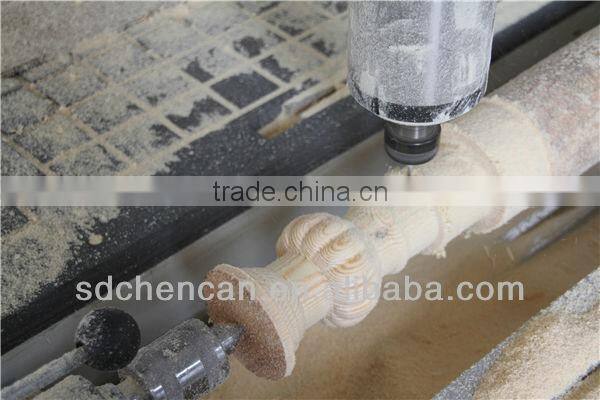

Our router may carve various kinds of shade vulture, relief, craft and gift.
certifications for Woorking CNC Router 4axis CNC machine
Our partner as follow :

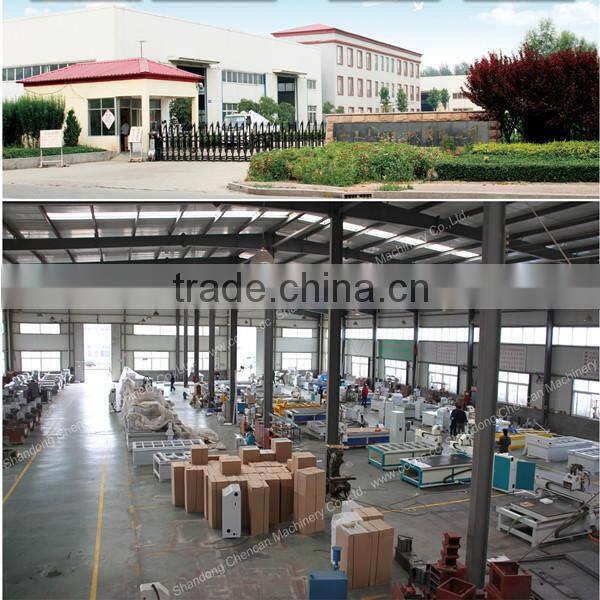

Welcome to visit our factory. Anna is at your service in 24 hours.
We pay attention to any detail of our Every set CNC Router Machine and provide
the best Abroad Service for Every Customer
