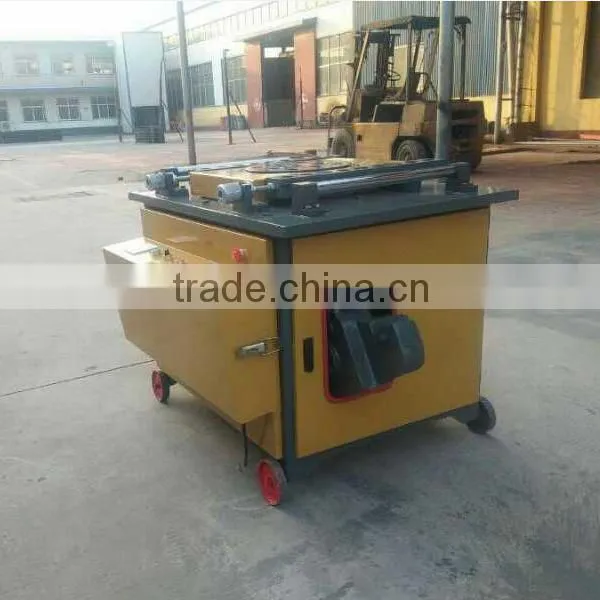

Automatic rebar cutting and bending machine

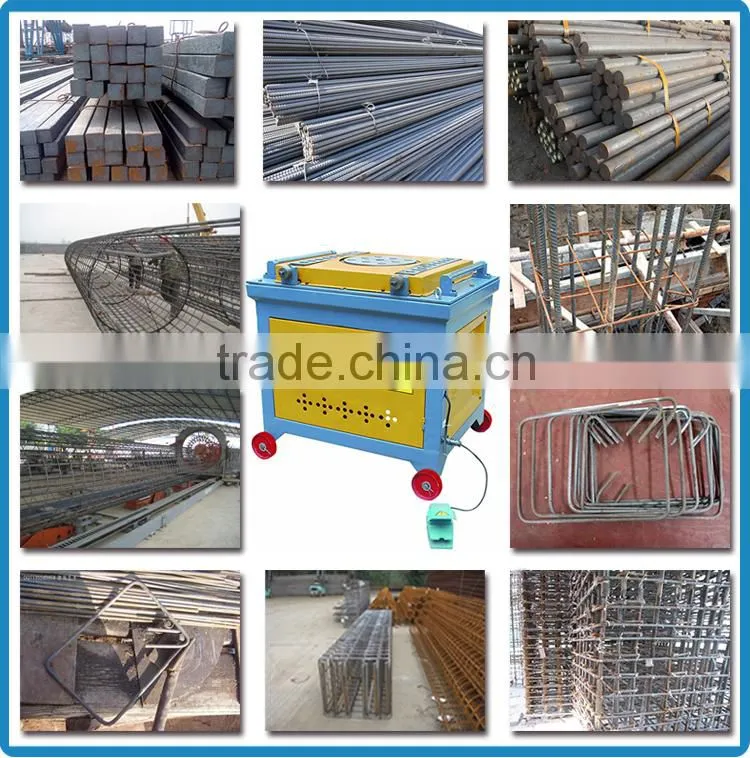

Automatic rebar cutting and bending machine is one kind of steel bar processing machine,widely used construction
building field.It constitued by the motor,gear,operation disc, breaker and machine body.This machine is able to bend and
cut ribbed steel bar diameter from 6mm to 40mm/50mm/60mm/70 mm, with various shapes using in construction

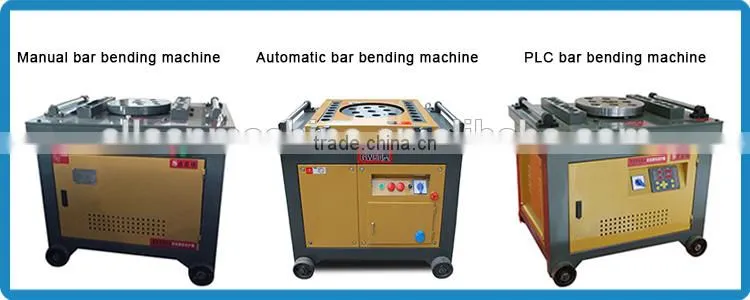

project. According tobending capacity, it can be classfied GW40,GW50,GW60,GW70 model bar bending machine with
manual, automatic,PLC.If you want to learn more about rebar cutting and bending machine,you can click here:
"more details of bar cutting and bending machine"
If any question about our products,you can click here:"Send enquiry"

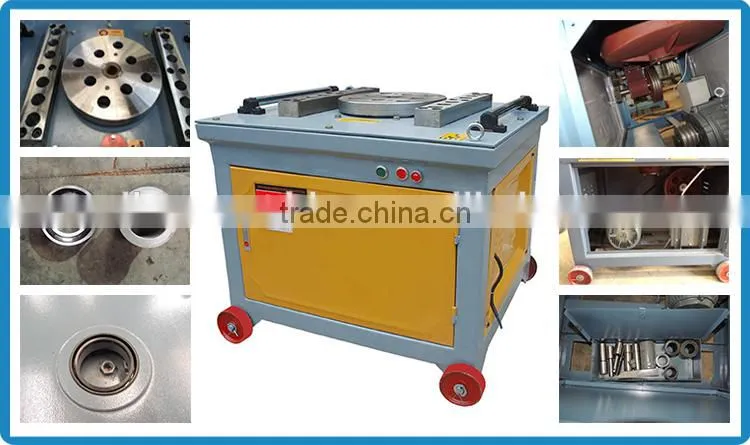

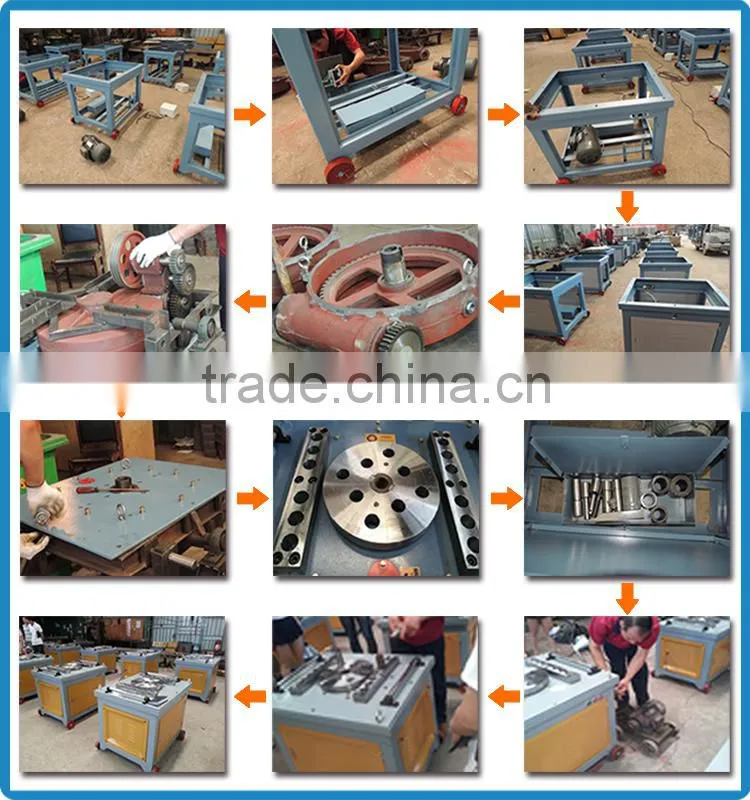

Quality control:
1. The motor, 100% copper motor with speed 1420r/min,normally this motor can work 2 years without breaking;
2. The gear, our gear material ductile iron QT500-7 which have high precision and hardness, promise machine capacity,
dural above 5 years.All the gears are fine processed twice.
3. The operation disc material carbon structure steel 45# guarantee the disc long time use with 24 hours;
4. The painting , anti-rust spray painting inside and outside, beautiful and promise long machine life in working condition;
5. It adds eccentric bushing, ultra-high hardness accessories and adjustable baffles, special for different diameter and longer service life .
Considerate design and service
1. The stop gauge can be installed from four different corners to putting steel bar from various directions,meet different users' different using habbit.
2. It is fully enclosed gear-box, low noise, helpful to protect user's ears.high and low speed is easy for the worker to handle.
3. We provide complete accessories, so do not worry the maintenance.
4. Our products with ISO certification in conformity with national quality standards.
Technical parameter of automatic rebar cutting and bending machine for rebar | |||||
| Model | GWQ40 | GWQ50 | GWQ60 | GWQ70 | |
| Bending Diameter | Plain carbon steel | ≤Φ40mm | ≤Φ50mm | ≤Φ60mm | ≤Φ70mm |
| Deformed steel | ≤Φ32mm | ≤Φ40mm | ≤Φ50mm | ≤Φ65mm | |
| Operation disc spec | Φ350mm | Φ450mm | Φ500mm | 600mm | |
| Axis Rotate speed | High speed | 9.63r/min | 2.685r/min | 8r/min | 7r/min |
| Low speed | 4.68r/min | 4r/min | 3r/min | ||
| Motor power | 3KW-4p | 4KW-4p | 5.5KW-6p | 5.5kw-8p | |
| Working voltage | 220V~440V | 220V~440V | 220V~440V | 220V~440V | |
| Motor Rotate speed | 1440r/min | 1440r/min | 720r/min | 360r/min | |
| Overall Dimension | 930x730x710mm | 1060×810×720mm | 1080×850×740mm | 1.2x1x0.95 | |
| Whole Weight | 350kg | 450kg | 680kg | 980kg | |
| Above parameter just for your reference,if any other special demands,can be customized design based on your demands. | |||||
If any question about above parameter,you can click here:"Send enquiry"
Zhengzhou Ellsen is a manufacturer focousing on design, production,sales and sales service. At present,our factory professional manufacture bar bending machine,bar cutting machine,stirrup bending machine,straightening cutting machine,wrought iron machine. Our products have been exported to USA, Australia, England, Russia,India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc,more than100 countries and regions. Quality first and customer first is our forever aim. Every machine with high strict quality control and commissioning before delivery, any question about the machine use and maintenence in use will be attentioned within 24 hours. Welcome you to be our new client!
Q1: What kinds of payment can you accept?
A1: We can accept payment term: T/T, L/C, Western union,Trade assurance, Escrow, Paypal, Moneygram, Creditcard, D/A, D/P, etc.
Q2: MOQ?
A2: One set is ok.
Q3: Delivery time?
A3: If in stock,3 days;If not in stock,5~8 days.
Q4:Can you accept OEM/ODM ?
A4:Our products can be customized design for our customer by OEM/ODM.
Q5:How do you guarantee your products quality?
A5:Normally,our products warranty within one year;we are free to provide extra quick-wear parts.
Q6:What kinds of information i need provide before purchase?
A6: 1. QTY? (set)
2.Which kind of bending machine do you need?(manual/automatic/PLC)
3.Max bending diameter? (mm)
4.Which kinds of steel material do your need process?(Rebar,Round bar,Square bar,)
5.Power supply?(Voltage,Frequency,Phase)
If any demands about our products,you can click here:''contact us"
