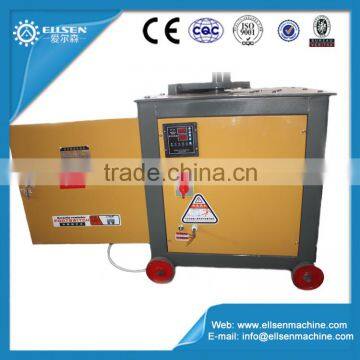

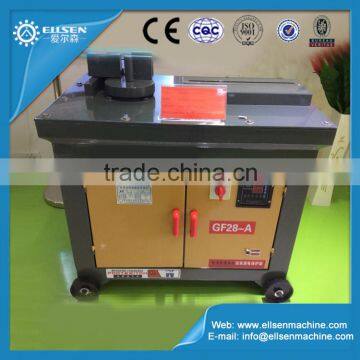

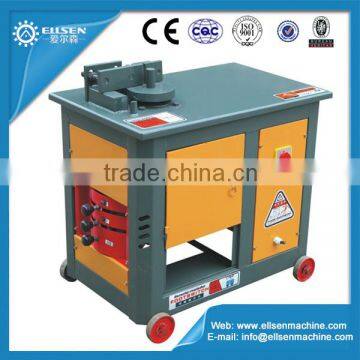

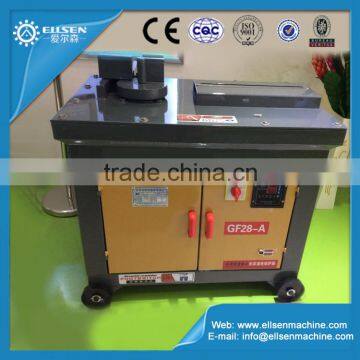

Easy operate stirrup bender construction manual
| Technical parameter of stirrup bender construction manual | |||||
| Model | GF20 | G525 | GF28 | GF32 | |
| Bending diameter | mm | Φ4-Φ18 | Φ4-Φ22 | Φ4-Φ28 | Φ32 |
| Bending speed of main axis | times/min | 25-30 | 25-30 | 25-30 | 18 |
| Motor power | KW | 2.2 | 3 | 3 | 3 |
| Weight | KGS | 100 | 170 | 220 | 250 |
| Machine dimension | mm | 850x550x820 | 850x550x850 | 950x550x850 | 670x670x800 |
| Production capacity | Single wire | Φ4– 12 [mm] |
| Double wire | Φ4 – 10 [mm] | |
| Production capacity |
200tons ( 10hours/day and 6days/week) | |
| Max. bending angle | ±180° [double direction] | |
| Max. bending speed | 1200 [°/sec] (1100pics/h) | |
| Max. pulling speed | 110 [m/min] | |
| Mandrel diameter | Φ25 – Φ32 [mm] | |
| Max. length of the stirrup side | 1050/1220 [mm] | |
| Min. length of the stirrup side | 50 [mm] | |
| Length tolerance | ± 1 [mm] | |
| Bending tolerance | ± 1° | |
| Average air-compressed consumption | 5 [l/min] | |
| Rated power 2 servo motor | 13.5+7.5 [KW] | |
| 1 Brake motor | 3 [KW] | |
| 1 Motor for air pump | 3 [KW] | |
| Average electric power consumption | 5 [KW] | |
| Labeled electric power | 27 [KW] | |
| Overall machine weight | 2100 [Kg] | |
| Overall dimension | 3650 × 1050 × 2015mm | |
| Brief description | Stirrup bender construction manual is a new generation steel bar bending machine. it is applicable to Φ4-Φ12HRB335 hot rolled ribbed steel bar,HRB400 hot rolled ribbed steel bar, plain round bar, and cold rolled ribbed steel bar. With the quality of standard size , high speed and mechanics performance stability. It is widely used with Steel works , rebar process workshop and Steel welding net factory. |
| Advantage & Feature |
1. Automatic wire feeding system ( CNC );
2. Large storage capacity can save 500 processing geometric graphics, high degree automation;
3. Automatic double wire intake system, high processing efficiency;
4. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs;
5. Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast. |
Zhengzhou Ellsen is a manufacturer focousing on design, production,sales and sales service.At present,
our factory professional manufacture bar bending machine,bar cutting machine,stirrup bending machine,
straightening cutting machine,wrought iron machine. Our products have been exported to USA,Australia,
England, Russia,India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc,more than100 countries and
regions. Quality first and customer first is our forever aim. Every machine with high strict quality
control and commissioning before delivery, any question about the machine use and maintenence in use
will be attentioned within 24 hours. Welcome you to be our new client!
