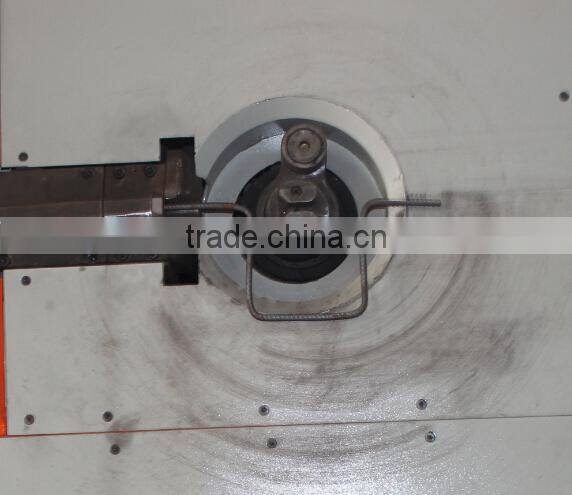

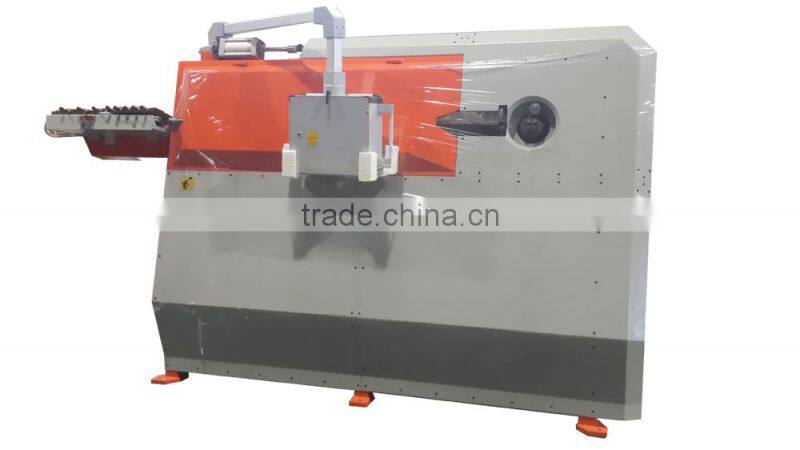

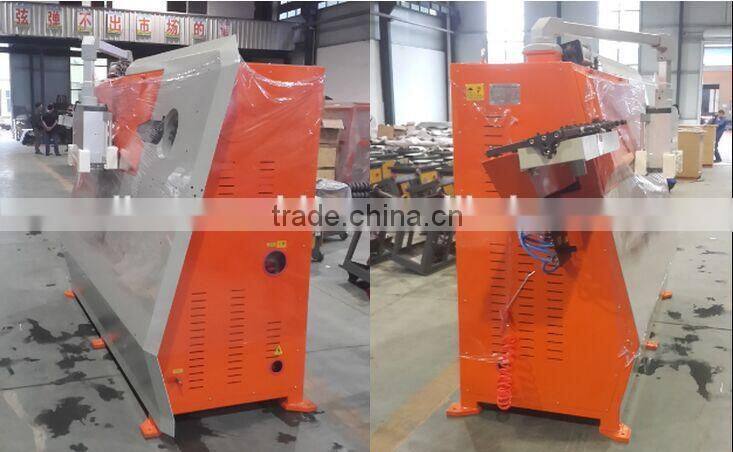

Air Compressor Equipped Stirrup Bender

steel stirrup bender

2. automaticly measure

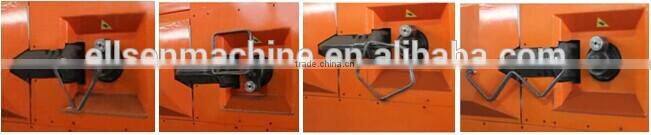

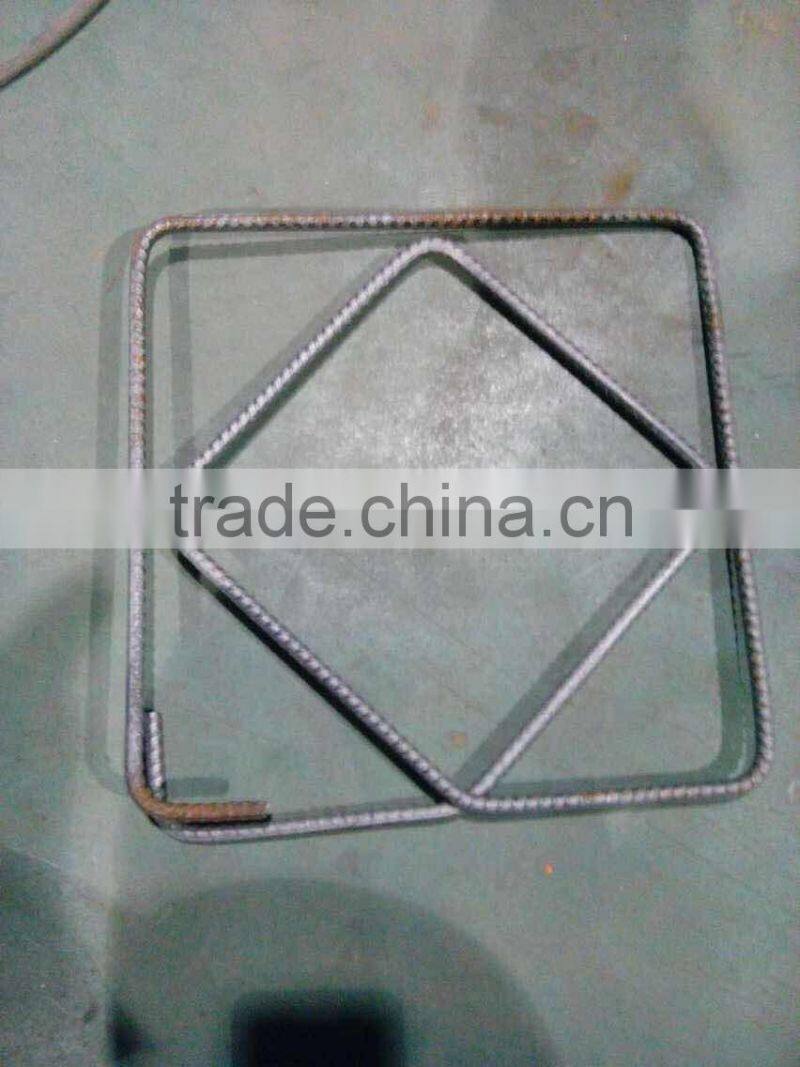

3. automaticly bending (to different shapes used in construction projects)

4. automaticly cutting

2.Big power servo feeding motor to ensure bending bar accuracy.

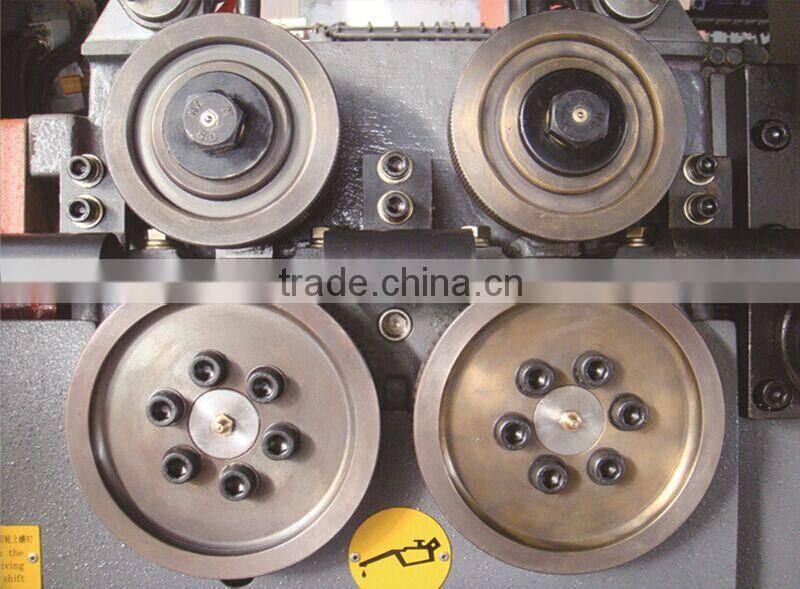

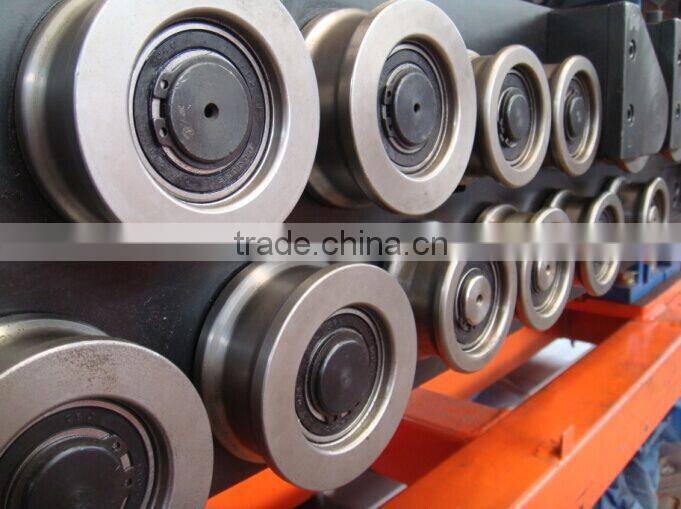

3. Material of straightening wheels, traction wheels, metering wheel with heating process, to ensure longer life, low replacing cost.

4.Large storage capacity can save 500 processing geometric graphics, high degree automation

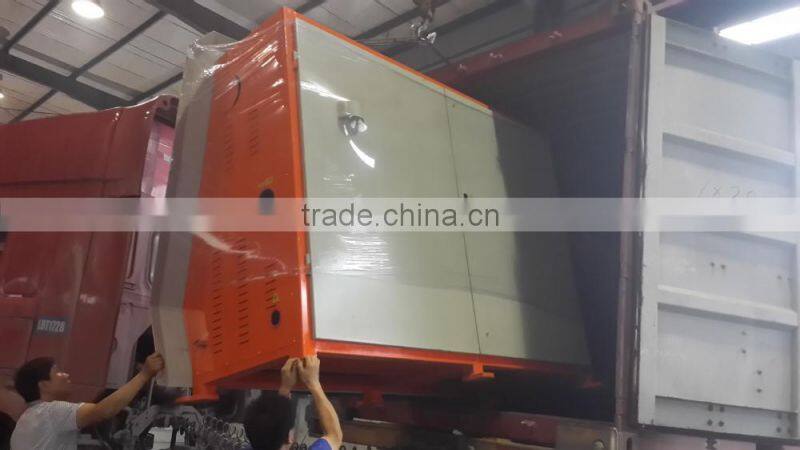

5.Moveable air compressor design, to ensure better cooling effect, easy transportation and installation

6.The intelligent fault identification alarm system maintenance more convenient

7. Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.

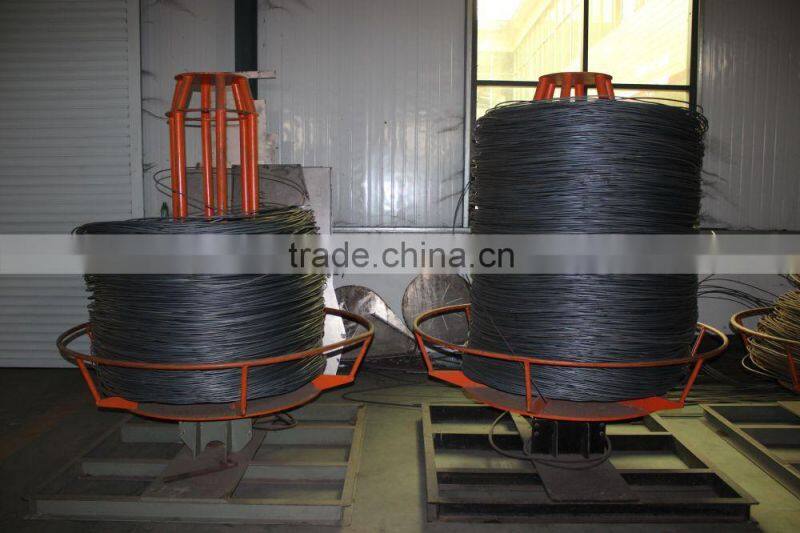

8.Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime.

9. Touch-screen console, easy to operate, and more fast

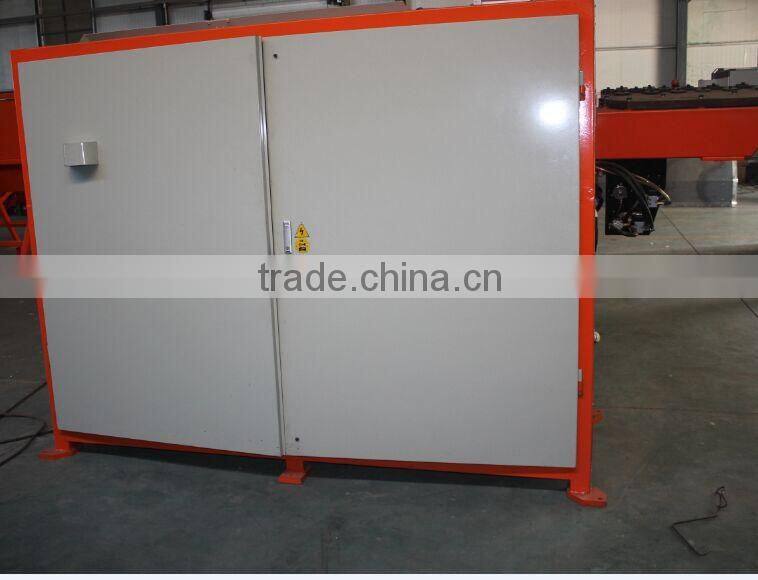

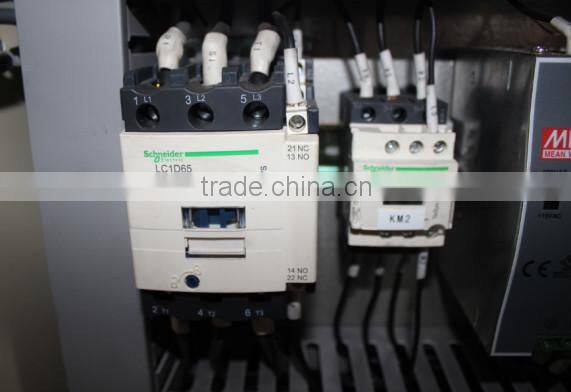

10. Control systems: SCHNEIDER

1. Steel bar diameter?

2. Machine working hours per day?

3. Power voltage? (V/Hz/Phase)

Production capacity

Single wire

Φ5 – 12 [mm]

Double wire

Φ5 – 10 [mm]

Production capacity per month

200 tons with 10hours/day and 6days/week

Max. bending angle

±180° [Bi direction]

Max. bending speed

1200 [°/sec] (1100pics/h)

Max. pulling speed

110 [m/min]

Mandrel diameter

Φ25 – Φ32 [mm]

Max. length of the stirrup side

1050 [mm]

Min. length of the stirrup side

50 [mm]

Length tolerance

± 1 [mm]

Bending tolerance

± 1°

Average air-compressed consumption

6 [l/min]

Rated power 2 servo motor

13+ 7.5 [KW]

1 Brake motor

3 [KW]

1 Motor for air pump

3 [KW]

Average electric power consumption

5 [KW]

Labeled electric power

27 [KW]

Voltage

380 [V] 50 [Hz] 3[Phase]

Overall machine weight

2,600 [Kg]

Overall dimension

3650 × 1050 × 2015 & 1650 × 1150 × 1600*2 [mm]
