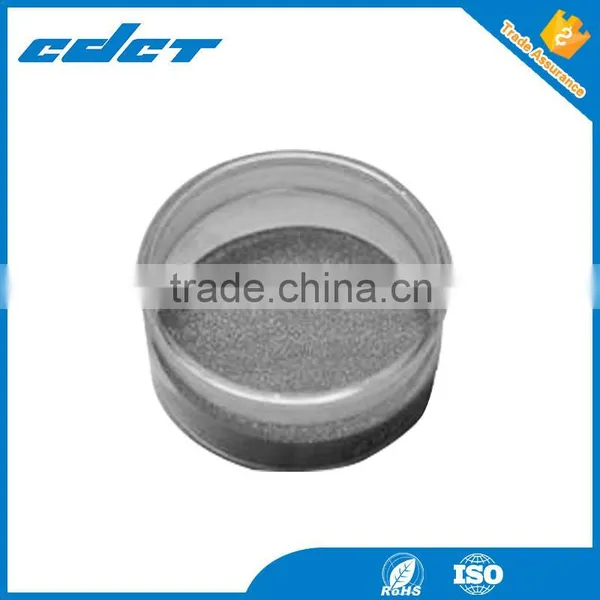

C1F120 magnetic FeSiAl powder
1 Chemistry Element
Si |
Al |
O |
C |
P |
S |
Mn |
Fe |
|
wt% |
9.6 |
5.4 |
≤ 0.2 |
0.08 |
0.03 |
0.002 |
0.08 |
Balance |
2 physical parameters
grade |
Mesh number |
Laser particle size (μm) |
Apparent density | fluidity |
|||
D25 |
D50 |
D75 |
D97 |
(g/cm3) |
(s/50g) |
||
C1F120 |
-120 |
23 |
36 |
58 |
122 |
3.1-3.5 | <50 |
3 Magnetic Properties
Bs |
Tc |
Br |
Hc |
μi |
1.05T |
460°C |
0.3T |
0.02KA/m |
45000 |
4 Usage
(1) frequency conversion inductance core, frequency conversion and transformer core
(2) PFC choke, high Q quality filter inductance, loaded coils.
(3) Line noise filters, pulse transformer, the energy storage of switch power supply and inductor filtering.
5 Features (1) High saturation magnetic induction, high permeability.
(2) Excellent DC current bias.
(3) high frequency low loss, low noise
(4) excellent thermal stability
6 package 1000KG per jumbo bag with wooden case/wood pallet, or small bags with wooden case,also can according to your requirement.
