Home > Instruments & Meters > Meter for Electricity > Resistance Meter > Resistance Tester Megger 10-1000V Insulation Resistance Tester

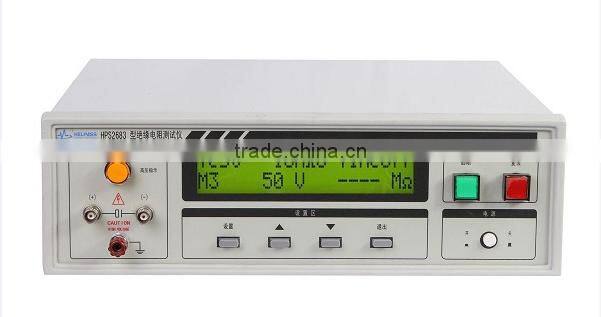

Resistance Tester Megger 10-1000V Insulation Resistance Tester

Name: Resistance Tester Megger 10-1000V Insulation Resistance Tester
Brand: HELPASS
SKU: 130401455
Availability: InStock

Resistance Tester Megger 10-1000V Insulation Resistance Tester thumbnail-1

Resistance Tester Megger 10-1000V Insulation Resistance Tester photo-1

US$ 300 - 450 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HELPASS

Model Number:

HPS2683

Contact Supplier Request Quote Chat Now

Changzhou Helpass Electronic Technologies Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou Ningbo etc

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HELPASS

Model Number HPS2683

Display Type Digital Only

Measuring Range LC:0.001μA~200.0μA

Testing Voltage 10V~1000VDC

Accuracy Class <10G: 3%; ≥10G: 5%; ≥100G: 10%

Operating Temperature 0°C -40°C

Dimensions 350 x 115 x 330mm

Resistance Tester Megger 10-1000V Insulation resistance tester

Feature

♦ HD LCD display

♦ High-performance microprocessor control

♦ Insulation resistance, leakage current dual parameter display

♦ Intelligent clear function

♦ Range with automatic and manual modes

♦ Strong anti-interference ability

♦ Qualified and unqualified sound and light alarm

♦ Comprehensive communication interface

Application

♦ the insulation resistance and dielectric material of wire and cable

♦ Field test,periodic inspection and destructive test

♦ the insulation resistance and leakage current of switch equipment, relay, motor, generator and cable

♦ the insulation resistance of electronic components and devices

Specification

Model		HPS2683
Feature
Displayer		HD LCD display
Maximum Reading		9999
Measurement Function
Test voltage		10V-1000VDC(Arbitrarily set)
Voltage accuracy		±1%
Charging timer		999.9s
Measurement range
IR	100kΩ~10TΩ(10⁵Ω-10¹³Ω) 10V: 100kΩ~100GΩ(10⁵Ω-10¹¹Ω) 100V: 1MΩ~1TΩ(10⁶Ω-10¹²Ω) 1000V: 10MΩ~10TΩ(10⁷Ω-10¹³Ω)
LC	0.001μA~200.0μA
General Specification
Working Environment	0°C -40°C ,≤90%RH
Power Consumption	≤40 VA

Technical Service:

♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.

♦ We provide free technical training and offer free equipment maintenance technology.

♦ We can design special test programs and test fixture according to the customer.

Delivery

We will arrange to ship your order with 3-15 working days after payment confirmed

1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days

2.EMS:Reach most countries takes about 6-8 days
