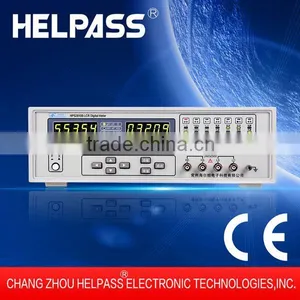

Helpass LCR Meter precision 19999 1999 counts with usb va520
♦ Direct reading,ABS,%
♦ Sorting alarm and qualified, unqualified indicator light
♦ 2 selectable source impedance, easy to be compatible with other LCR meters
♦ Testing level monitor function
♦ Setting parameters protection function
♦ Key locked function
♦ Good stability of reading
♦ Measure the semiconductor element impedance such as capacitors, resistors, inductors, transformers, multichip module and network elements.
♦ Measure the inductance and the loss angle of ferrite, magnetic core, amorphous and other magnetic materials.
♦ Measure the printed circuit boards, relays, switches, cables and battery impedance.
Model |
HPS2810B |
||
Features | |||
Displayer |
HD LED digital display |
||
Display Digits |
5Digits |
||
Measurement function | |||
Measurement Parameters |
L-Q, C-D, R-Q, Z-D,Z-Q |
||
Basic Accuracy |
0.1% |
||
Equivalent Circuit |
Series, Parallel |
||
Display Method |
Direct, ABS,% and Sorting result |
||
Test signal | |||
Test Level |
0.1 Vrms, 0.3 Vrms,1 Vrms, |
||
Output Impedance |
30Ω,100Ω |
||
Sorting and interfaces | |||
Beep |
OFF,IN,HI,LO |
||
Interface |
RS-232C interface/HANDLER/USB Device/GPIB(option) |
||
General Specification | |||
WorkingEnvironment |
0°C -40°C ,≤90%RH |
||
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
||
Power Consumption |
≤30 VA |
||
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ Communication Cable
♦ HPS28001 Four-terminal Kelvin clamp test line
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
