Home > Lights & Lighting > LED Encapsulation Series > SMD LED > High Brightness Cool White Smd Led 3528 Datasheet

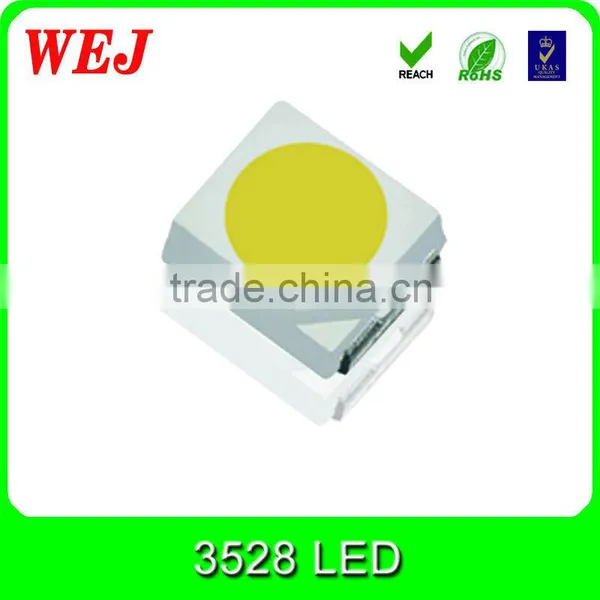

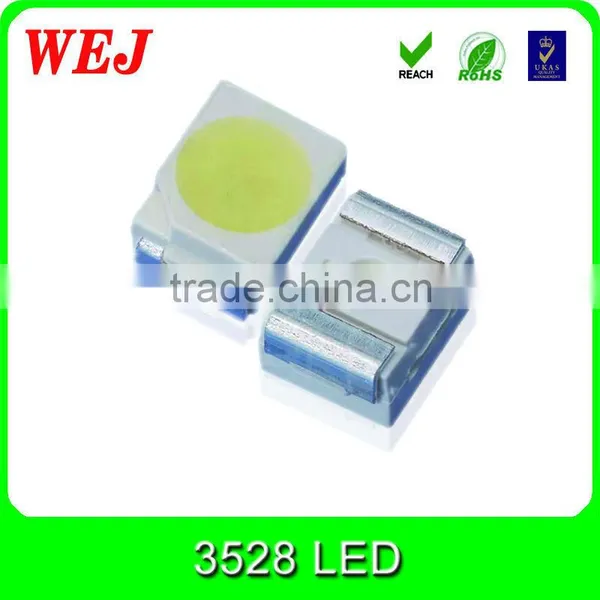

High Brightness Cool White Smd Led 3528 Datasheet
US$ 0.01 - 0.02
MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
WEJT28AC7-6B3P01
Chip Material:
AlGaInP
Emitting Color:
Cool White
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Lumen 0.2W Cold White 5050 SMD LEDUS$ 0.01 - 0.02MOQ: 20 Pieces -
High Brightness 3014 SMD LEDUS$ 0.01 - 0.02MOQ: 20000 Pieces
-
High Quality Ultra Bright Red Blue Green Blue Yellow 5mm LED DatasheetUS$ 0.01 - 0.02MOQ: 20000 Pieces
-
High Britghtness 5050 SMD LEDUS$ 0.01 - 0.02MOQ: 20000 Pieces
-
Competitive t8 1.2m Led Tube 1050lm 80Ra 330 Degree Wide Voltage AC100-240V G13 Led Tube 12WUS$ 2.75 - 4.75MOQ: 10 Pieces
Model Number
WEJT28AC7-6B3P01
Chip Material
AlGaInP
Emitting Color
Cool White
Luminous Flux(lm)
6-7lm
Power
0.06W
Color Rendering Index(Ra)
72
Color Temperature
7700-8550K
Operating Temperature(℃)
-25, 85
Storage Temperature(℃)
-40, 100
Place of Origin
Guangdong, China
Brand Name
WEJ
Certification
CE
HIGH BRIGHTNESS SMD LED 3528 DATASHEET
Product Description
parameters of smd led 3528
Parameter |
Symbol |
Value |
Unit |
Forward voltage |
Vf |
2.8-3.4 |
V |
DC Forward Current |
If |
30 |
mA |
CCT |
Tc |
7700-8550 |
K |
Reverse Voltage |
Vr |
5 |
V |
Luminous flux |
Φ |
6-7 |
lm |
Operating Temperature |
Topr |
-25to+85 |
℃ |
Storage Temperature |
Tstg |
-40to+100 |
℃ |
Chromaticity coordinate |
XY |
X=0.30;Y=0.31 |
|

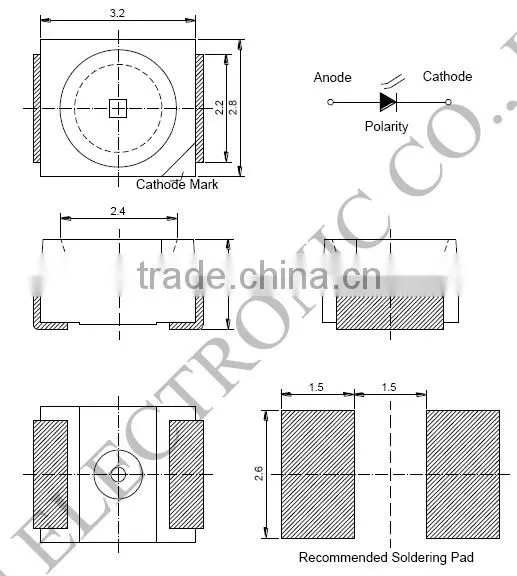

Package of outline dimensions
Packaging & Shipping

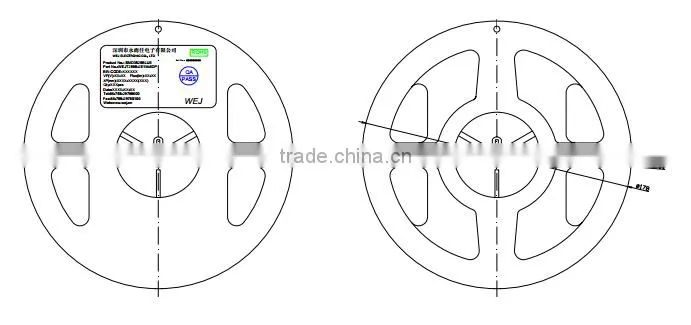

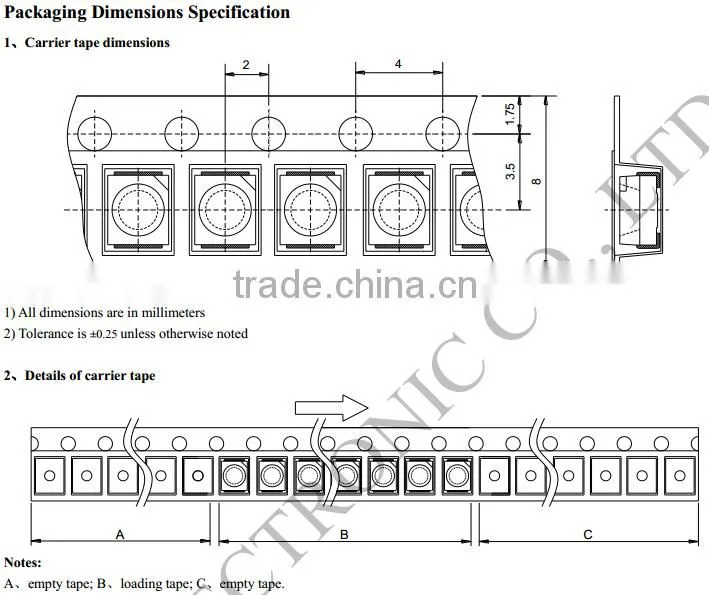

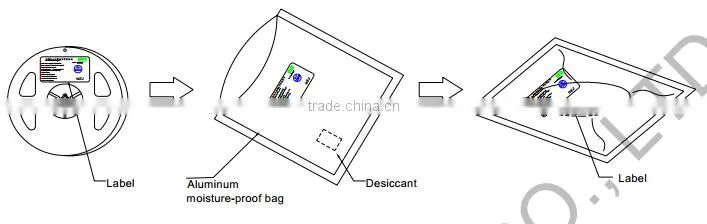

Packaging of smd led 3528
shipping of smd led 3528
Delivery:IN 5 DAYS
DHL/TNT/OCEAN SHIPPING
Certification of smd led 3528
OUR TEAM
OUR FACTORY
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
