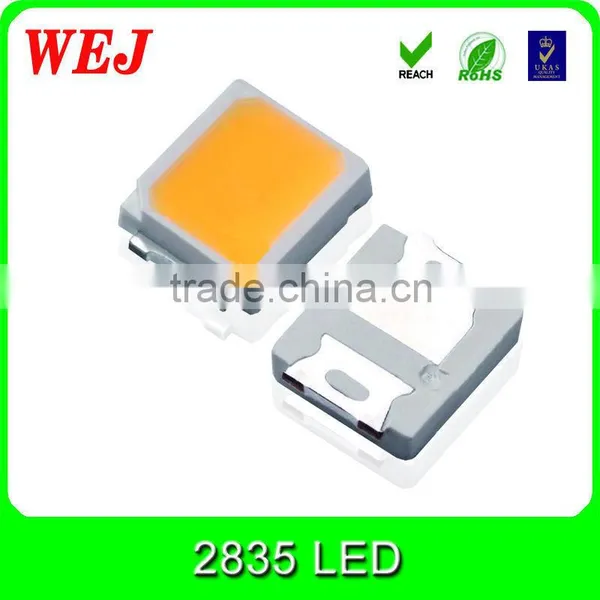

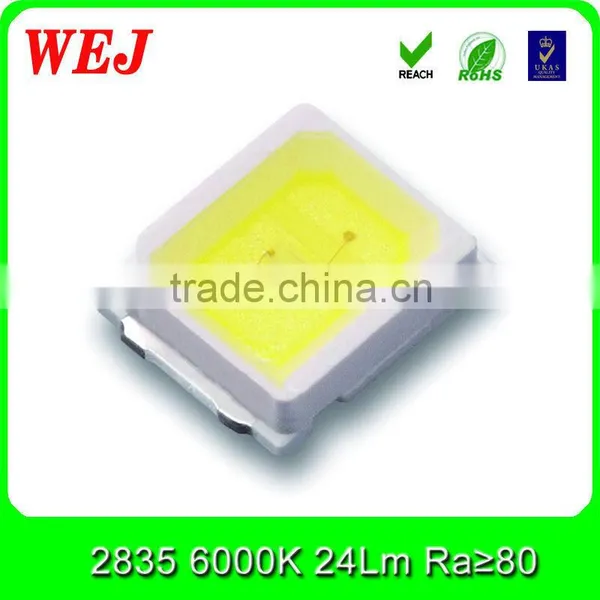

1W 90-100lm 100-110lm 110-120lm Warm/nature/pure White 2835 Smd Led
1W 90-100lm 100-110lm 110-120lm warm/nature/pure white 2835 smd led
Feature:
*Low power consumption
*Long life-solid state reliability
*Available on tape and reel
*RoHS compliant
*Emitted Color:pure white

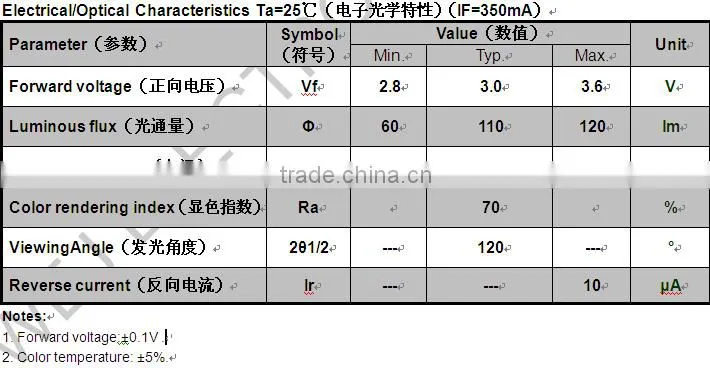

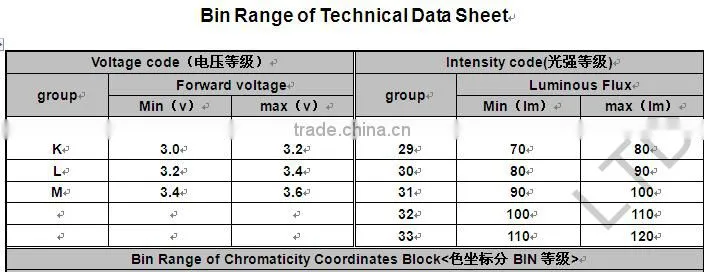

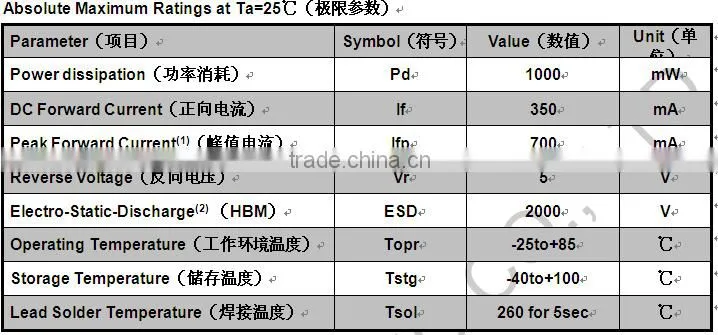

datasheet of 1w 2835 smd led

related products

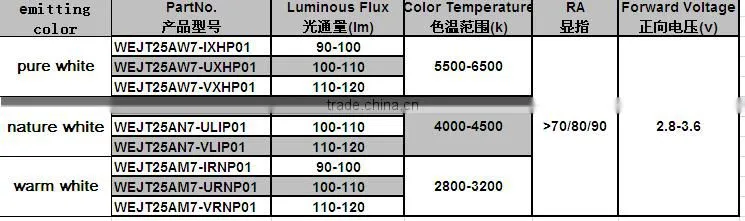

1w 350mA 2.8~3.6V pure white/nature white warm white 2835 smd led

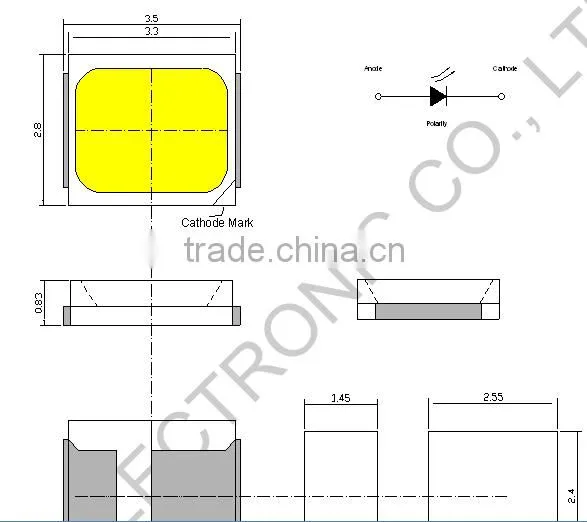

Dimensions: Unit(mm)
Note:
1.All dimensions are in millimeters(mm);
2.X.X is +/-0.1mm,X.XX is +/- 0.05mm unless otherwise noted;
3.The device has a single mounting surface,The device must be mounted according to the specifications.

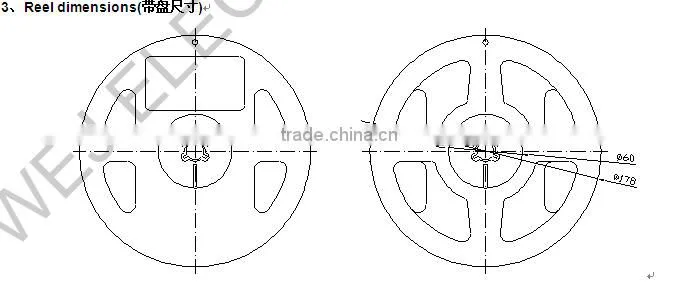

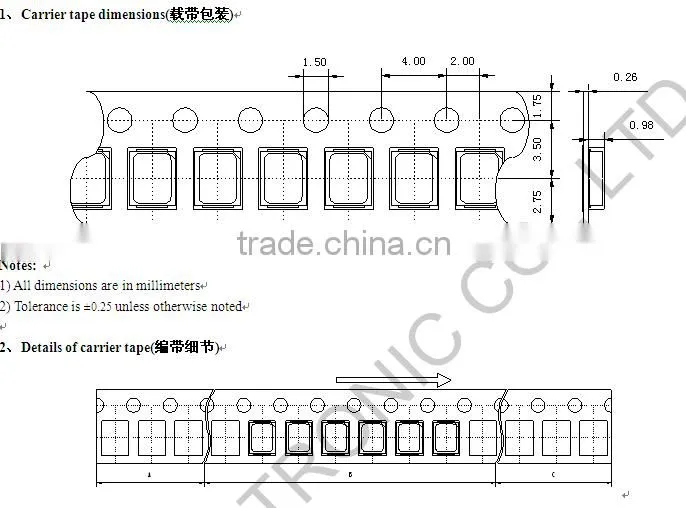

shipping of 1w 2835 smd led

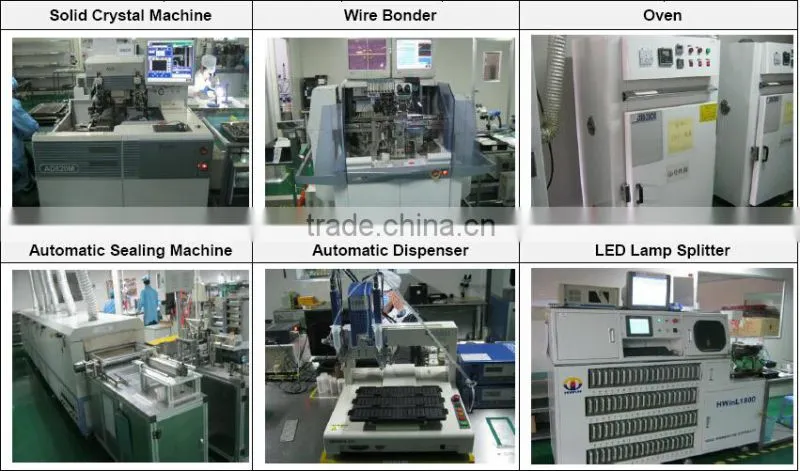

product line
about us
why you choose us?
A we have over 10 years experience on leds.
B we have professional and expert R&D team.
C we can offer free samples to you.
D Short lead time: 2-3 working days for sample, 7-14 working days for mass order.
E we offer factory price to you.
certification
